TD350 Series VFD Basic operation instructions
-109-

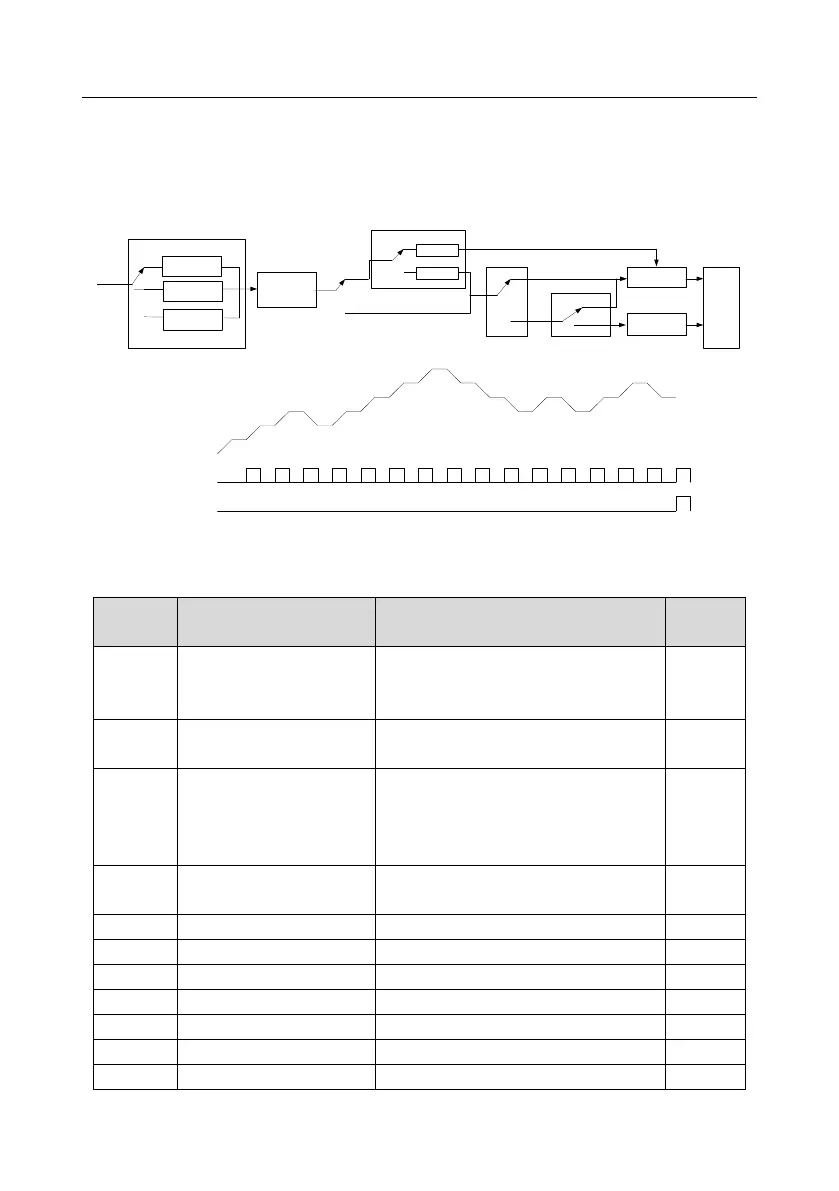

The TD350 series VFD can realize 16-step speeds control, and provide four groups of
acceleration/deceleration time for users to choose from.
After the set PLC completes one cycle (or one section), one ON signal can be output by the
multi-function relay.
Setup of running
parameters of each
PLC stage
Restart running
after the first
section
Continue running at
the frequency when
interruption occurred
Stop after running
once
Keep running in the
final value after
running once
Cyclic running
0
1
2
P10.00（simple PLC mode）
PLC mode
0
1
0
1
0
1
Normal running
P10.01 (simple PLC memory selection)
No memory
after power off
Memory after
power off
P10.36
(PLC restart mode)
P17.00
Power cut during
running
Terminal function 23
Simple PLC stop reset
Set frequency
Digital output 16
Simple PLC state completed
Digital output 17
Simple PLC cycle completed
Related parameter list:
Function
code
Name
Detailed parameter description
Default
value
P05.01–
P05.06
Digital input function
23: Simple PLC stop reset
24: Simple PLC pause
25: PID control pause
P06.01–
P06.04
Digital output function
16: Simple PLC stage reached
17: Simple PLC cycle reached
P10.00
Simple PLC mode
0: Stop after running once
1: Keep running in the final value after
running once
2: Cyclic running
0
P10.01
Simple PLC memory
selection
0: No memory after power down
1: Memory after power down
0
P10.02
Multi-step speed 0
-100.0–100.0%
0.0%
P10.03
Running time of 0
th
step
0.0–6553.5s (min)
0.0s
P10.04
Multi-step speed 1
-100.0–100.0%
0.0%
P10.05
Running time of 1
st
step
0.0–6553.5s (min)
0.0s
P10.06
Multi-step speed 2
-100.0–100.0%
0.0%
P10.07
Running time of 2
nd
step
0.0–6553.5s (min)
0.0s
P10.08
Multi-step speed 3
-100.0–100.0%
0.0%
