TD350 Series VFD Extension cards
-298-
A.3 Wiring
1. Ground a shielded cable as follows:
Grounding position of the
shielded cable
Grounding position of
the shielded cable

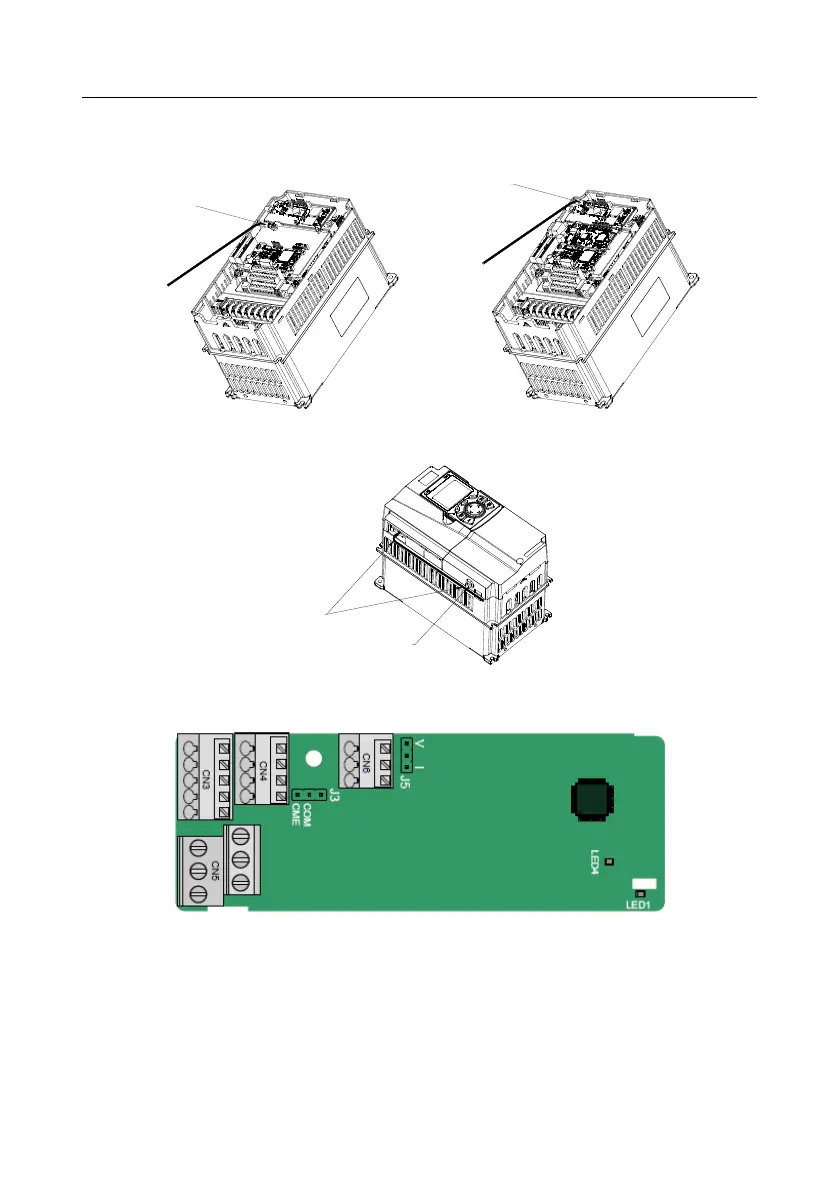

Fig A.4 Extension card grounding diagram
2. Wire an extension card as follows:
EC wiring
EC wire binding position
Fig A.5 Extension card wiring
A.4 IO extension card (EC-IO501-00) function description
The terminals are arranged as follows:
CME and COM are shorted through J3 before delivery, and J5 is the jumper for selecting the output
type (voltage or current) of AO2.
