TD350 Series VFD Product overview
-12-
Function description
Specification
phase), suitable for overvoltage category Ⅲ, and shall
provide protection for a rated impulse withstand voltage
peak of 6kV.
For input voltage 323-480V: transient surge suppression
shall be installed on the line side of this equipment and
shall be rated 575V (phase to ground), 575V (phase to
phase), suitable for overvoltage category Ⅲ, and shall
provide protection for a rated impulse withstand voltage
peak of 6kV.
3.4 Product nameplate

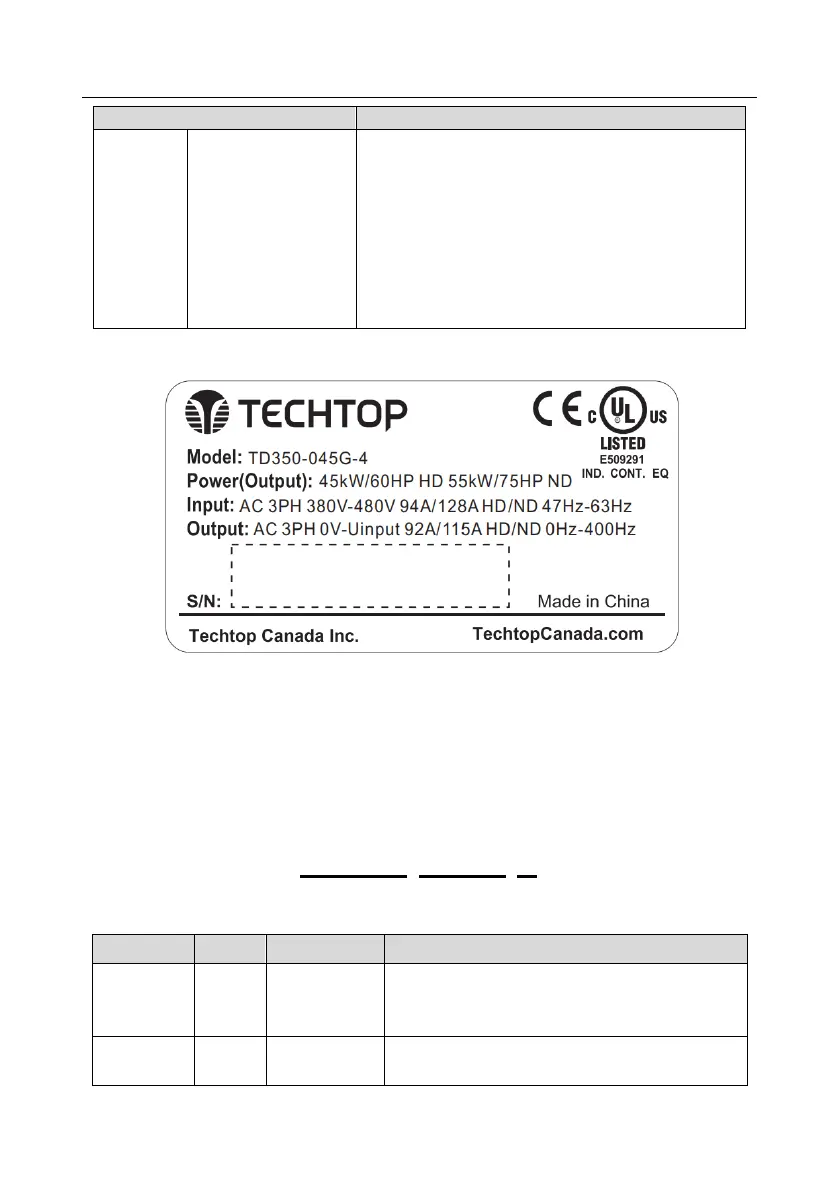

Fig 3.5 Product nameplate
Note: This is an example of the nameplate of standard TD350 products. The CE/TUV/IP20 marking
on the top right will be marked according to actual certification conditions.
3.5 Model code
The model code contains product information. You can find the model code on the nameplate and
simple nameplate of the VFD.
TD350-045G-4
①
②
③
Fig 3.6 Model code
Field
Sign
Description
Contents
Abbreviation
of product
series
①
Abbreviation of
product series
TD350 is short for Topdrive350 series.
Rated power
②
Power range +
load type
045: 45 kW
G: Constant torque load
