TD350 Series VFD Basic operation instructions
-39-
VFD station no. and
model display area
1. Display VFD station no.: 01–99, applied in multi-drive
applications (reserved function);
2. VFD model display: "TD350" – the VFD is TD350 series
VFD
The parameter name
and function code
monitored by the
VFD
Display the parameter name and corresponding function code
monitored by the VFD; three monitoring parameters can be
displayed simultaneously. The monitoring parameter list can
be edited by the user
Parameter value
monitored by the
VFD
Display the parameter value monitoring by the VFD, the
monitoring value will be refreshed in real time
Corresponding menu
of function key (4),
(5) and (6)
Corresponding menu of function key (4), (5) and (6). The
corresponding menu of function key (4), (5) and (6) varies
with interfaces, and the contents displayed in this area is also
different

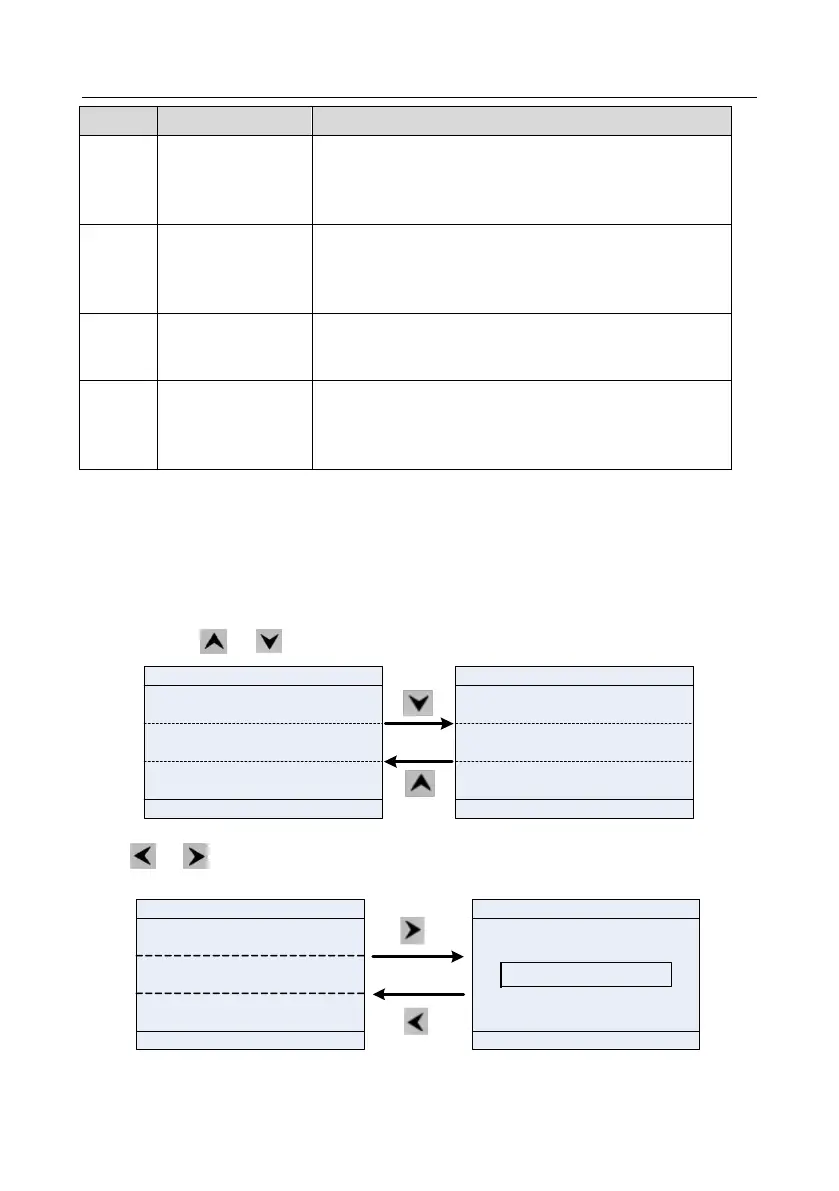

5.3 Keypad display
The display state of TD350 series keypad is divided into stop parameter display state, running
parameter display state and fault alarm display state.
5.3.1 Stop parameter display state
When the VFD is in stop state, the keypad displays stop state parameters, and this interface is the
main interface during power-up by default. Under stop state, parameters in various states can be
displayed. Press or to shift the displayed parameter up or down.
01: TD350
16:02:35
Fwd
Local Ready
Motor Speed
P17.05 rmp
0
Outp Cur
P17.04 A
0.0
0.00
AboutMonitor
Menu
OutpFreq
P17.01 Hz
16:02:35
Outp Cur
P17.04 A
0.0
OutpFreq
P17.01 Hz
0.00
0.00
Set Freq
P17.00 Hz
01: TD350Local Ready
AboutMonitor
Menu
Fwd
Fig 5.3 Stop parameter display state
Press or to switch between different display styles, including list display style and progress
bar display style.
01: TD350
16:02:35 Fwd
Local Ready
Motor Speed
Return Homepage
0.00 65535
01: TD350
16:02:35
Fwd Local Ready
Motor Speed
P17.05 rmp
0
Outp Cur
P17.04 A
0.0
0.00
AboutMonitor
Menu
OutpFreq
P17.01 Hz
0
rmp
Fig 5.4 Stop parameter display state
