TECHTOP TD350 - VFD Structure; Dimensions of Vfds of AC 3 PH 200 V-240 V and 380 V-480 V

TD350 Series VFD Dimension drawings
-336-

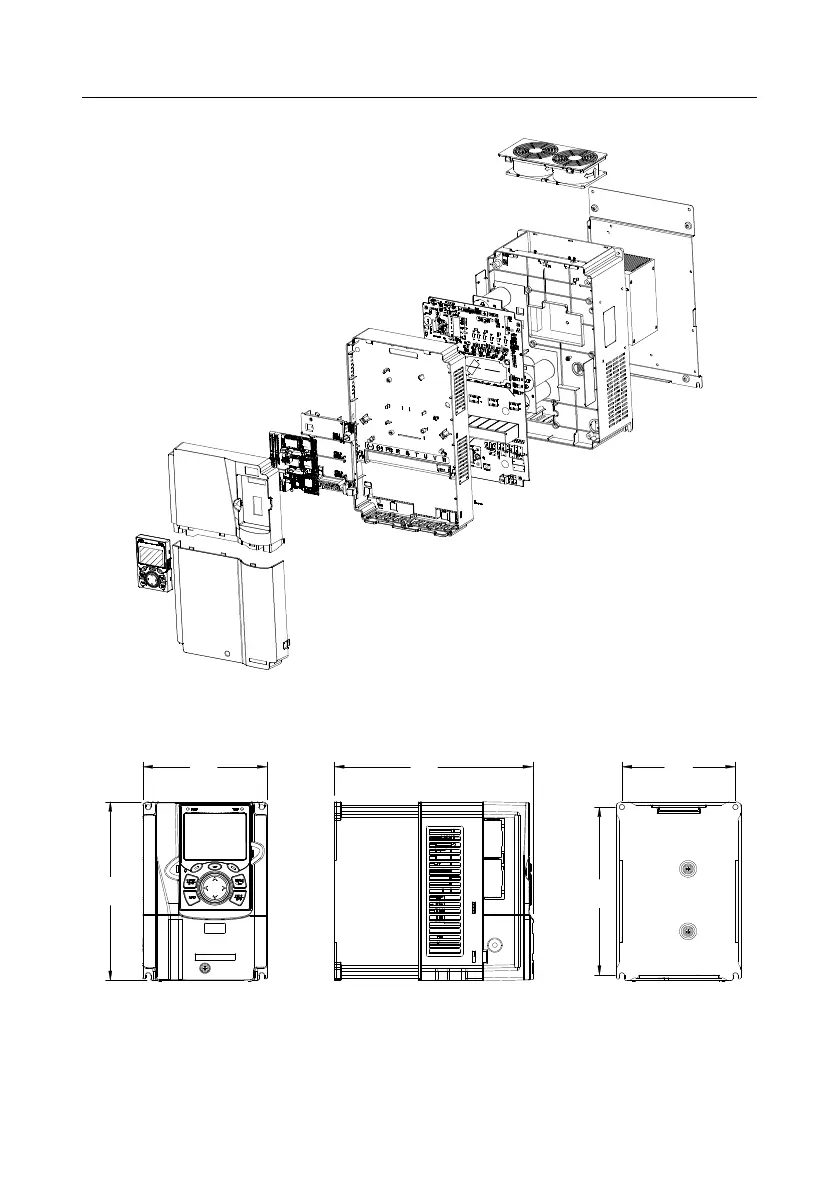

C.3 VFD structure
Fig C.3 VFD structure diagram
C.4 Dimensions of VFDs of AC 3PH 200V–240V and 380V–480V
C.4.1 Wall-mounting dimensions
W1
H1
D1 W2
H2
Fig C.4 Wall-mounting diagram of VFDs of 220V 0.75–15 kW and 460V 1.5 to 30 kW
