TECHTOP TD350 - Dimensions of Vfds of AC 3 PH 520 V-600 V

TD350 Series VFD Dimension drawings
-342-
C.5 Dimensions of VFDs of AC 3PH 520V–600V
C.5.1 Wall-mounting dimensions
W1
H1
D1 W2
H2

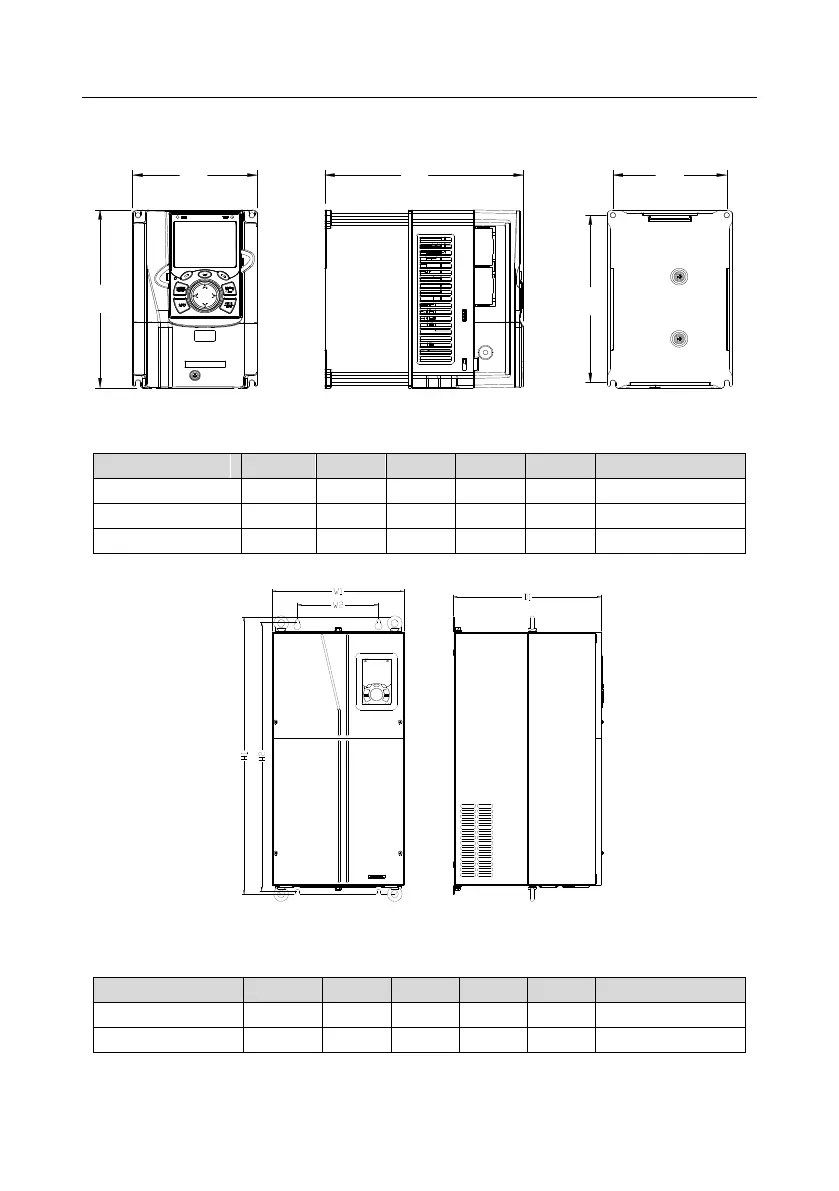

Fig C.13 Wall installation diagram of VFDs of 575V 0.75–18.5kW
Table C.6 Wall installation dimensions of VFDs of 575V 0.75–18.5kW
VFD specification
W1
W2
H1
H2
D1
Installation hole
0.75kW–2.2kW
146
131
256
243.5
192
Ø 5
4kW–7.5kW
170
151
320
303.5
219
Ø 6
11kW–18.5kW
230
210
330
311
217
Ø 6
Fig C.14 Wall-mounting diagram of VFDs of 575V 22 to110 kW
Table C.7 Wall-mounting dimensions of 575V 22–110kW (unit: mm)
VFD specification
W1
W2
H1
H2
D1
Installation hole
22kW–37kW
270
130
555
540
325
Ø 7
45kW–110kW
325
200
680
661
365
Ø 9.5
