TD350 Series VFD Extension cards

-297-

Extension card installation process:

Diagram of installation wiring

Wire binding position

查看细节

Scale 4:1

STEP 1

STEP 3

STEP 5

STEP 7

STEP 2

STEP 4

STEP 6

STEP 8

Unscrew the screws and remove th e lower cover

Unscrew the screws,

take out the keypad,

and remove the upper cover

Insert the EC

Align the EC positioning holes

and positioning studs to fix the EC

Tighten the screws

Cut the corresponding outlet box

Diagram of outlet box cut

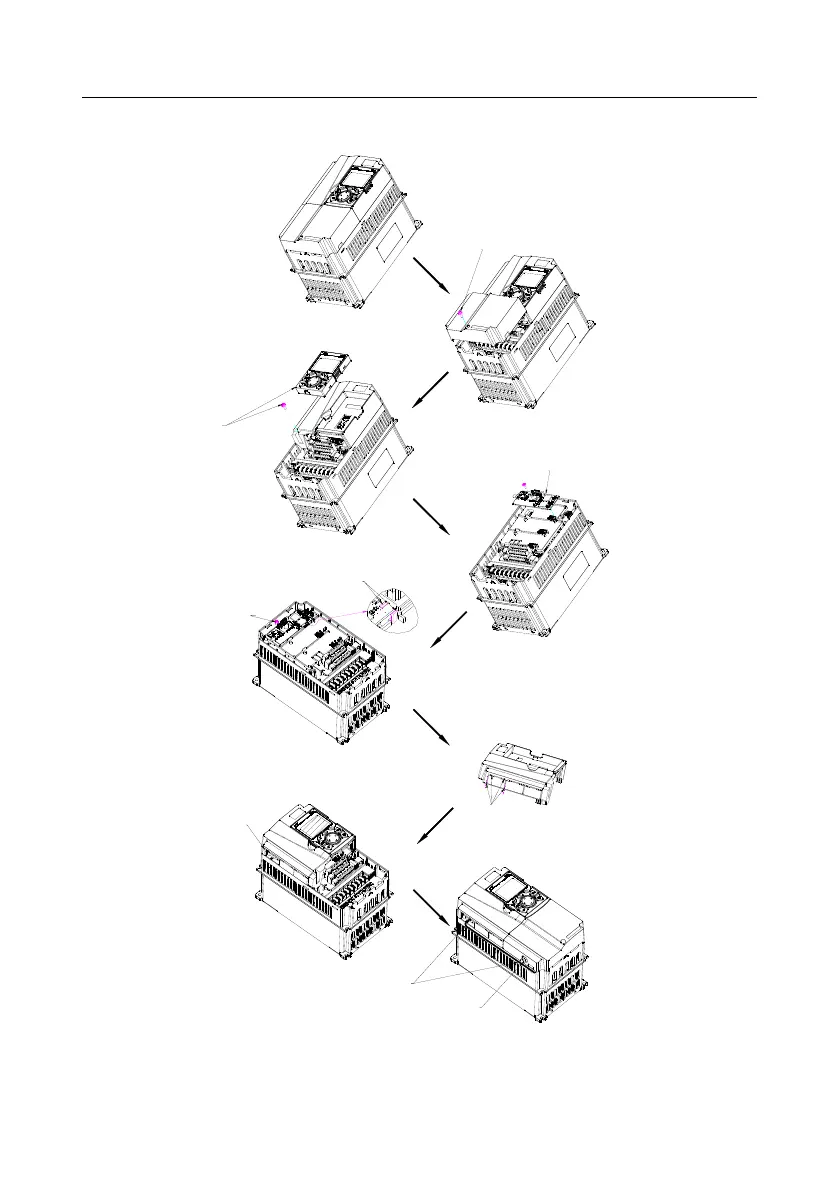

Fig A.3 Extension card installation process diagram
