TD350 Series VFD Installation guidelines
-19-
OK
NG
NG
A. Vertical installation
B. Horizontal installation
C. Transverse installation

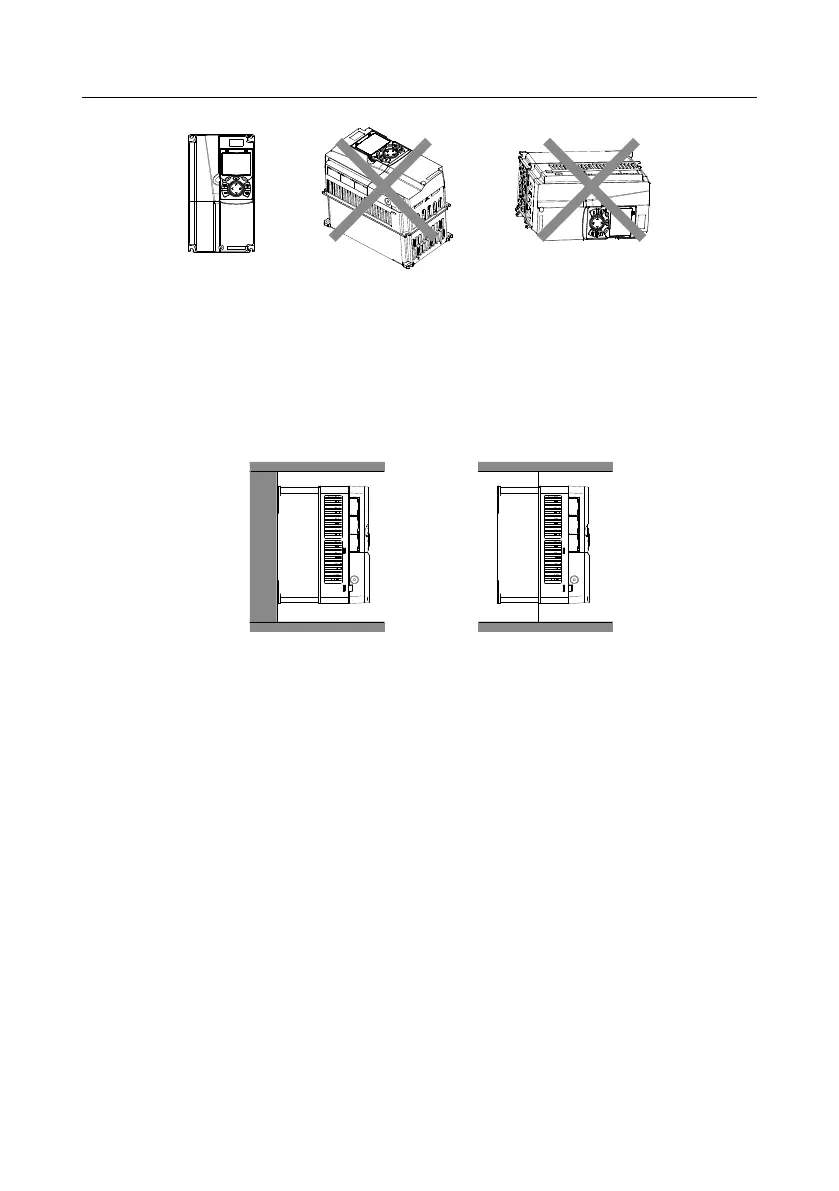

Fig 4.1 Installation direction of the VFD
4.2.3 Installation mode
There are three kinds of installation modes based on different VFD dimensions.
Wall-mounting: for the VFDs of 220V≤55kW, 460V ≤200kW, and 575V
Flange-mounting: for the VFDs of 220V≤55kW, 460V ≤200kW, and 575V
Floor-mounting: for the VFDs of 460V 220–500kW
Wall-mounting
Flange-mounting
Fig 4.2 Installation mode
The installation steps are described as follows:
1. Mark the position of the installation hole. See appendix for the position of installation hole;
2. Mount the screws or bolts onto the designated position;
3. Put the VFD on the wall;
4. Tighten the fixing screws on the wall.
Note: Flange plates are required when installing VFDs of 220V 0.75–15kW and 460V in flange mode,
and for VFDs of 220V 18.5–55kW and 460V 37–200kW, no flange plate is required.
