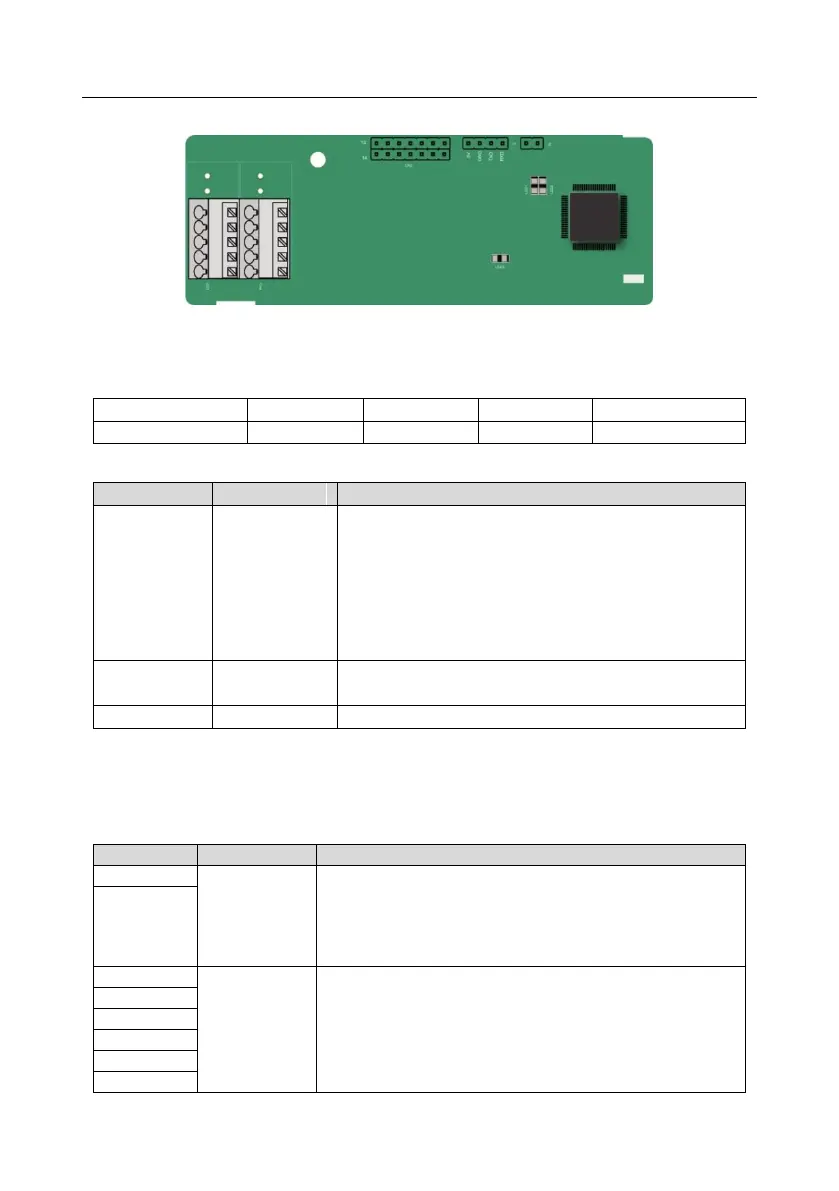

A.7.6 Simple incremental PG card (EC-PG507-12)
The terminals are arranged as follows:
The DIP switch SW1 is used to set the voltage class (5 V or 12 V) of the power supply of the encoder.
The DIP switch can be operated with an auxiliary tool.
PE
A1+
B1+
Z1+
PWR
PGND
A1-
B1-
Z1-
PGND
Indicator definition
Indicator No.
Definition
Function
LED1
State indicator
On: The extension card is establishing a connection with
the control board.
Blinks periodically: The extension card is properly
connected to the control board (the period is 1s, on for
0.5s, and off for the other 0.5s).
Off: The extension card is disconnected from the control
board.
LED2
Disconnection
indicator
Off: A1 and B1 of the encoder are disconnected.
On: The encoder pulses are normal.
LED3
Power indicator
On: The control board feeds power to the PG card.
The EC-PG507-12 extension card can be used in combination with multiple types of incremental
encoders through different modes of wiring. The wiring modes are the same as those for
EC-PG505-12.
EC-PG507-12 terminal function description
Label
Name
Function description
PWR
Encoder
power supply
Voltage: 5 V/12 V ±5%
Max. output: 150 mA
Select the voltage class through the DIP switch SW1 based
on the voltage class of the used encoder. (PGND is isolation
power ground)
PGND
A1+
Encoder
interface
1. Supporting push-pull interfaces of 5 V/12 V
2. Supporting open collector interfaces of 5 V/12 V
3. Supporting differential interfaces of 5 V
4. Response frequency: 200 kHz
5. Supporting encoder cables at a maximum length of 50 m
A1-
B1+
B1-
Z1+
Z1-
