AFMS N°D07 FOR GARMIN GFC700 AUTOPILOT AND VARIABLE PITCH PROPELLER EQUIPPED
AEROPLANES
Section 1 – General-
AUTOPILOT DESCRIPTION

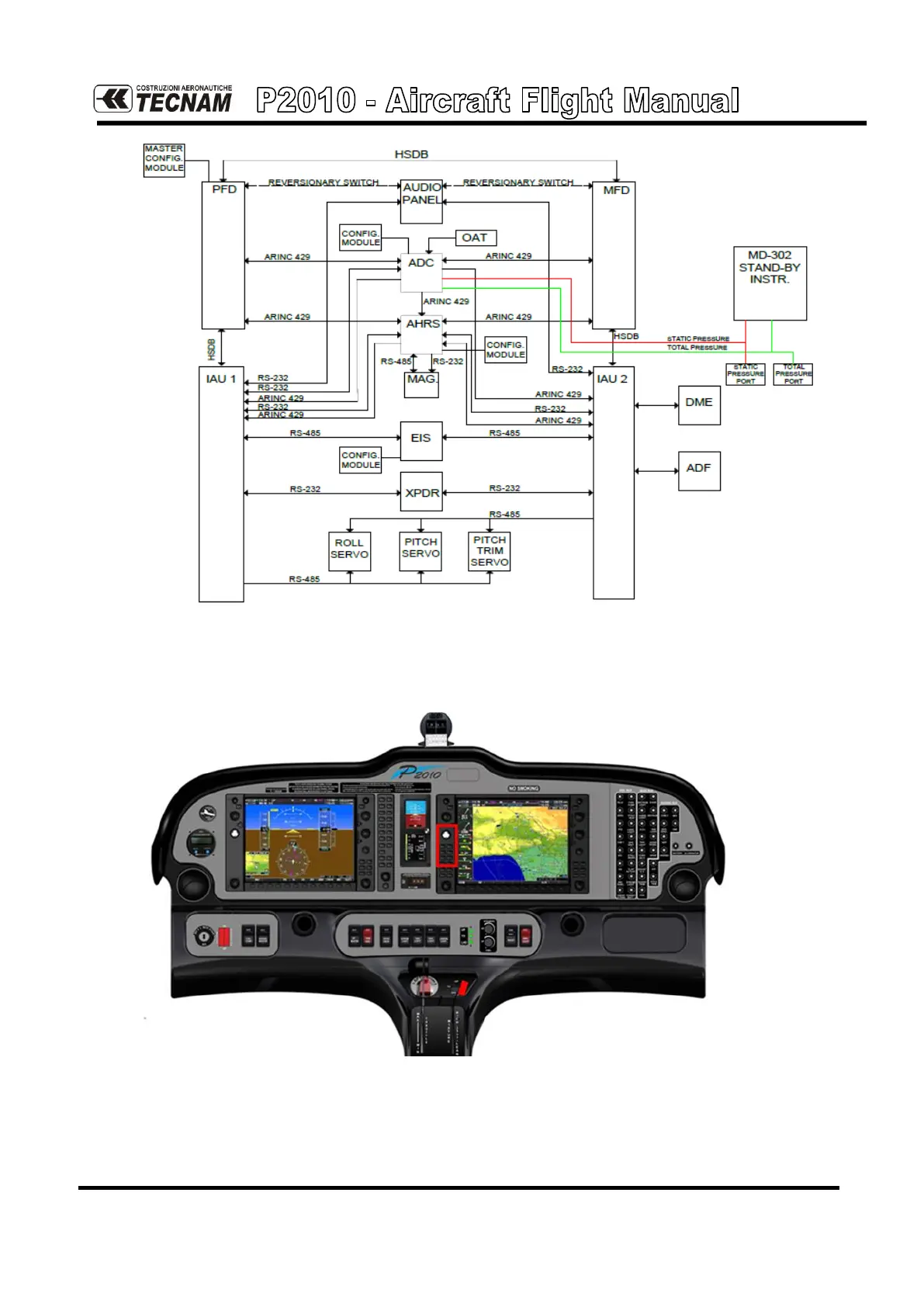

The multifunction display (MFD) provides the pilot with a dedicated set of keys for autopi-
lot
control (see red frame in the below picture).
The roll servo is located under the pilot seat and is fixed to a/c structure using a
dedicated mount.
Pitch and pitch trim servos are located in the tail cone and are
installed on a dedicated mount
which hosts both the servos.
