TECO E310 Series - Figure 4-5 Terminal Board Drive Operation Modes

4-19
2. 10-01=1, the reverse command is unavailable
00-11 : Operation modes for external terminals
0 : Forward/stop-reverse/stop
1 : Run/stop-forward/reverse
2 : 3-wire control mode -run/stop
1.) When operation command 00-03/00-04 = 0 (external terminal), 00-11is valid.
2.) When operation command 00-03/00-04 = 1 (external terminal control), the stop button for
emergency is available. (Refer to04-02 for detail description).
3.) That both forward and reverse commands are ON will be treated as STOP.
3. 00-11 = 2, Control mode is as below:

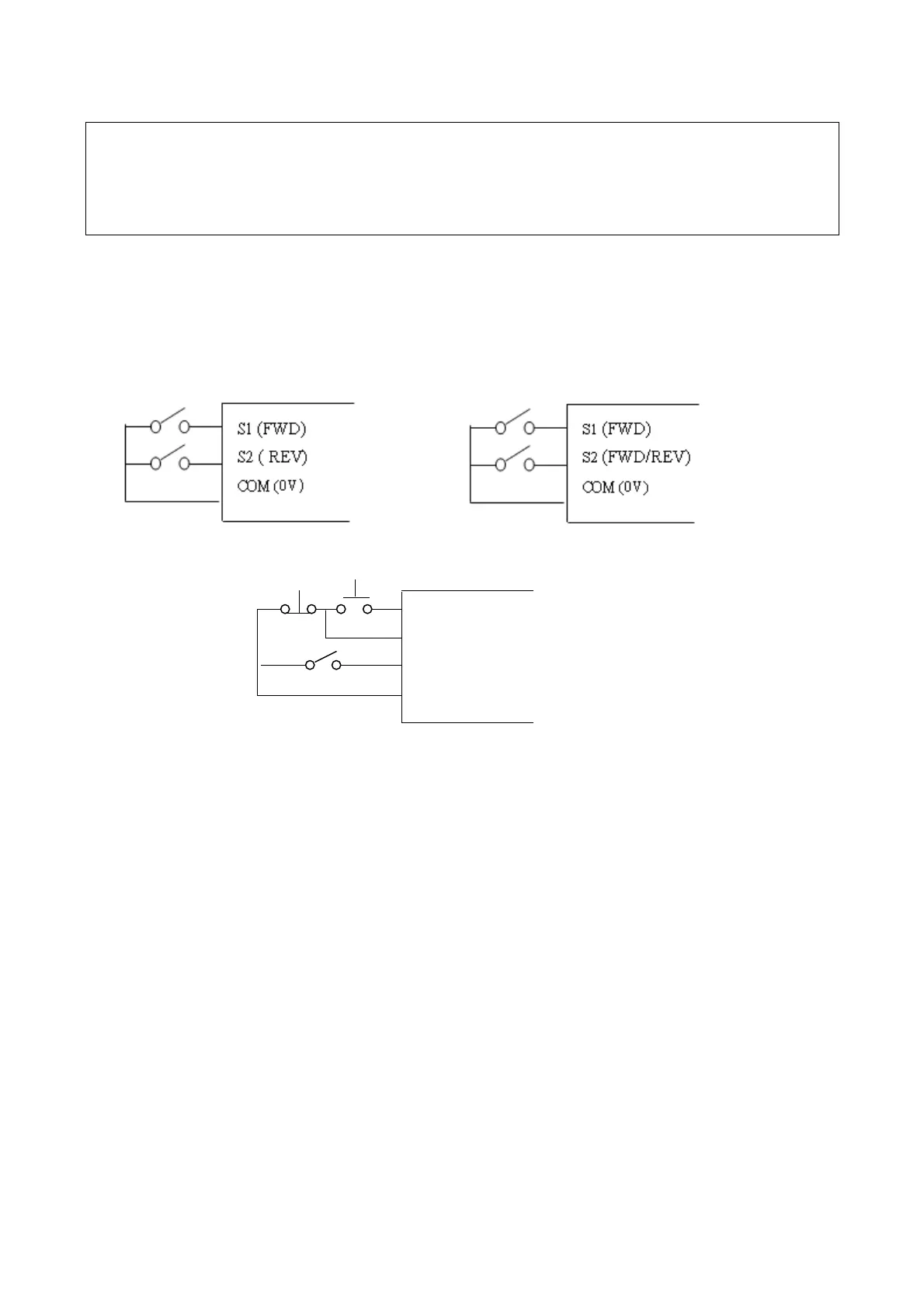

Figure 4-5 Terminal Board Drive Operation Modes
Figure 4-6 3-Wire start/stop wiring
S1 (RUN)
S2 (STOP)
S3 (FWD/REV)
COM (0V)
1. 00-11 = 0, Control mode is as below:
2. 00-11 = 1, Control mode is as below:
