4-20
※
Note： 1.As 3 wire control mode is selected, the terminal S1, S2 and S3 is not controlled
by 01-00, 01-01 and 01-02.
00-12 : Jog Frequency (Hz) =1.00 ~ 400.00
00-13 : Jog Acceleration Time (MFIT) (S) =0.1 ~ 25.5
00-14 : Jog Deceleration Time (MFIT) (S) =0.1 ~ 25.5
Example：When 1-00(S1)=5，1-01(S2)=6 (Jog), Jog run is controlled by external terminals, S1 on is
Jog-forward, S2 on is Jog-reverse.
Group1- External terminal digital signal input function group
Multifunction input terminals (TM2 S1～S6) controlling：
01-00~05:
0 : Forward/Stop Command
1 : Reverse/Stop Command
2 : Preset Speed unit 0 (3-02)
3 : Preset Speed unit 1 (3-03)
4 : Preset Speed unit 2 (3-05)
5 : JOG Forward Command
6 : JOG Reverse Command
7 : Acc/Dec time 2
8 : Emergency Stop
9 : Base Block
10 : Main/sub Control Signal Select
11 : Acc/Dec Disabled

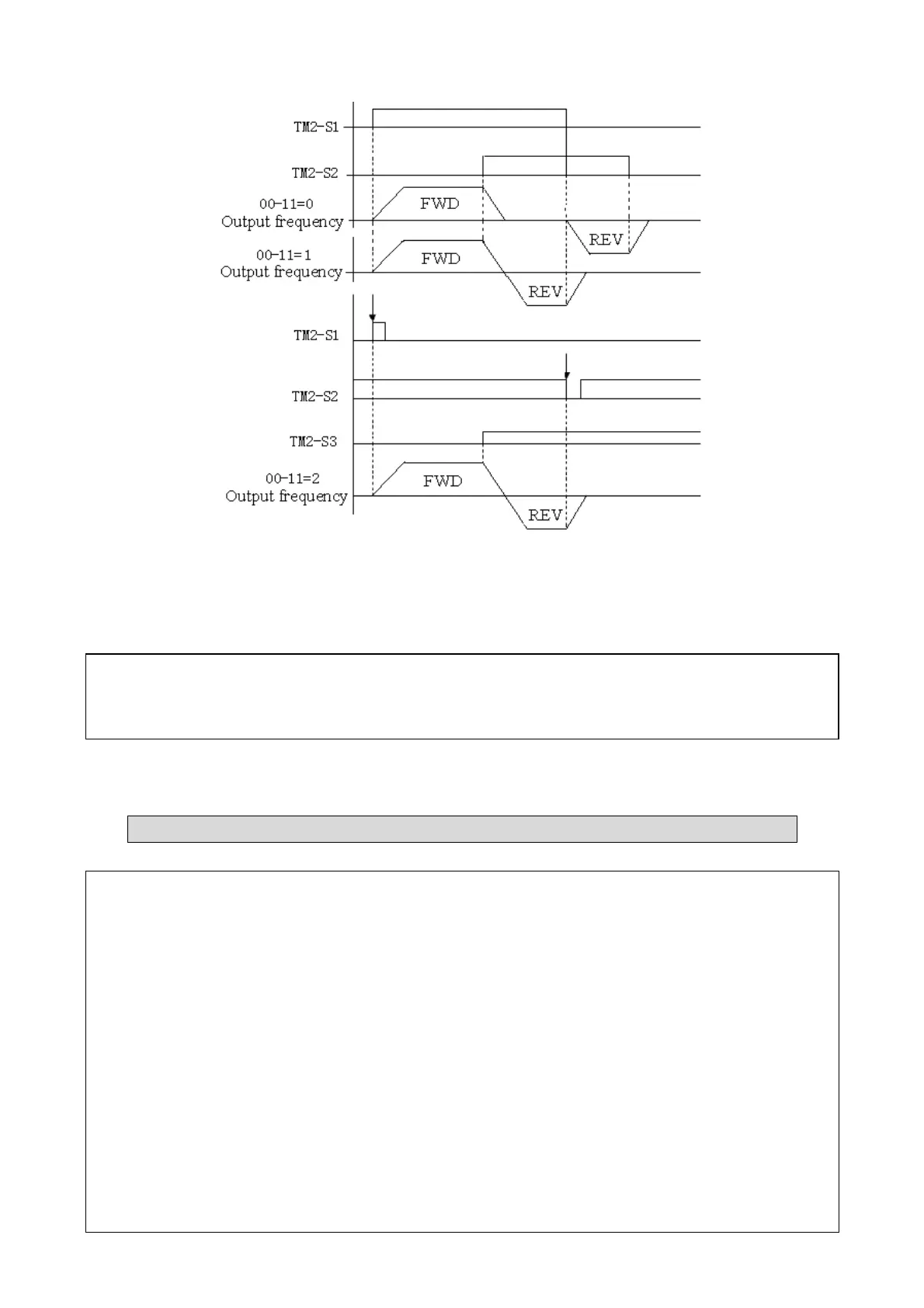

Figure 4-7 Drive start/stop operation sequences
