TECO E310 Series User Manual

4-35
Group5- V/F command group
V/F PATTERN Selection
05-00 : Volts/Hz Curve Modification (Torque Boost) (%) =0 ~ 30.0
05-01 : Motor no load current(Amps AC) -------------
05-02 : Motor rated Slip Compensation (%) = 0.0 ~ 100.0
05-03 : v/f Maximum voltage (Vac)
05-04 : Maximum Frequency (Hz) = 0.20 ~ 400.0Hz
05-05 : Maximum Frequency Voltage Ratio (%) = 0.0 ~100.0
05-06 : Medium Frequency2 (Hz) = 0.10 ~400.0Hz
05-07 : Medium Frequency Voltage Ratio2(%) = 0.0 ~100.0
05-08 : Medium Frequency1 (Hz) = 0.10 ~400.0Hz
05-09 : Medium Frequency Voltage Ratio1 (%) = 0.0 ~100.0
05-10 : Minimum Frequency (Hz) = 0.10 ~400.0Hz
05-11 : Minimum Frequency Voltage Ratio (%) = 0.0 ~100.0
05-12 : V/F start Frequency =0.00~ 10.00
1.00-01=18, set the V/F pattern freely complying with 05-04 ~ 05-09 (Refer to following diagram)

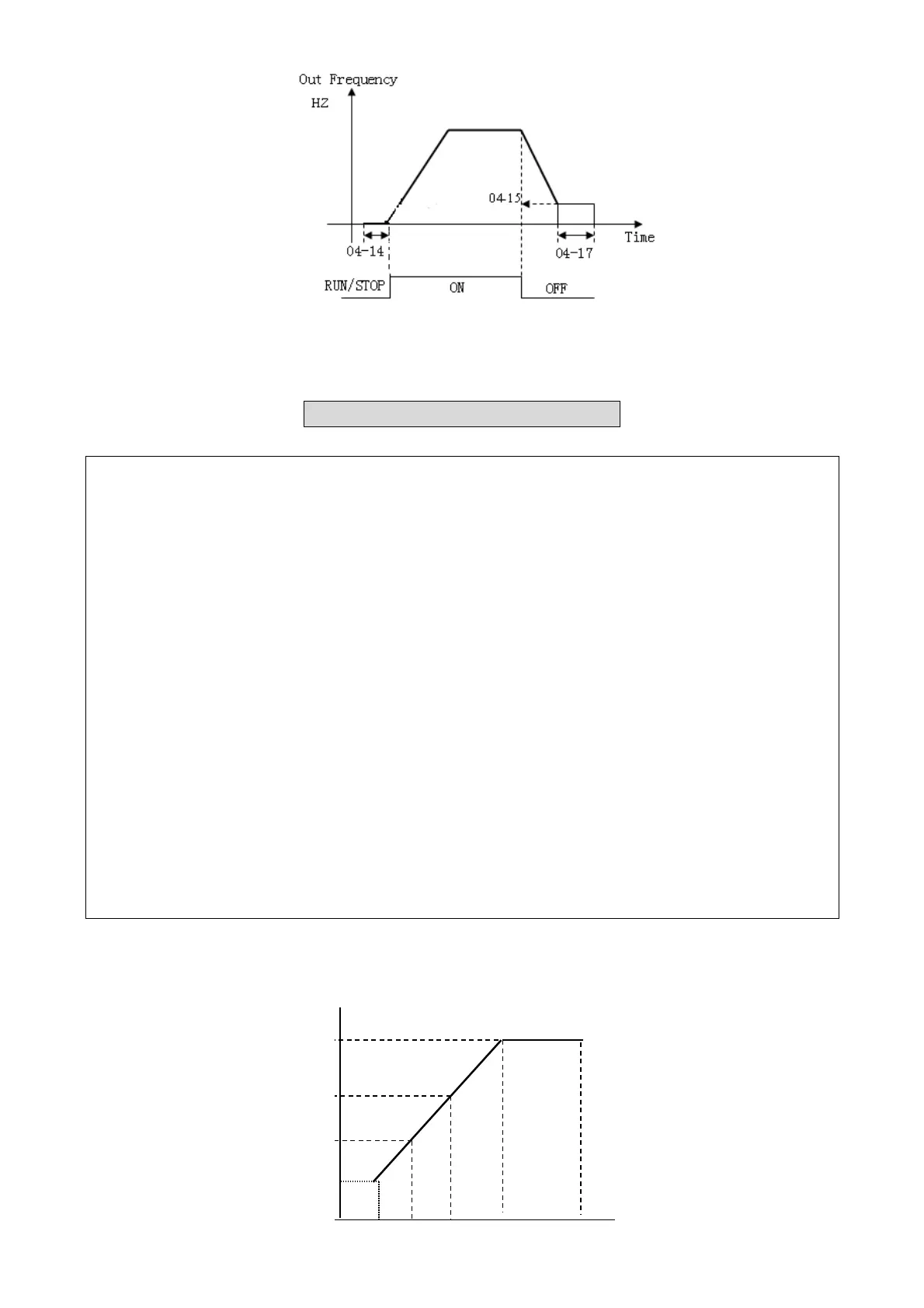

Figure 4-20 Custom V/F Settings
Figure 4-19 DC Injection Braking Example
(V)%
05-05
(
Vmax
)
05
-
09
05-11
(
Vmin
)
05-10 05-08 05-06 05-04 400.00
05
-
0
7
