4-51
13-23 : Auto_ Run Mode Running Time Setting 7 ( 0.0 ~ 3600.0s)
13-32 : Auto_ Run Mode Running Direction 0 (0 : STOP 1 : forward 2 : reverse)
13-33 : Auto_ Run Mode Running Direction 1 (0 : STOP 1 : forward 2 : reverse)
13-34 : Auto_ Run Mode Running Direction 2 (0 : STOP 1 : forward 2 : reverse)
13-35 : Auto_ Run Mode Running Direction 3 (0 : STOP 1 : forward 2 : reverse)
13-36 : Auto_ Run Mode Running Direction 4 (0 : STOP 1 : forward 2 : reverse)
13-37 : Auto_ Run Mode Running Direction 5 (0 : STOP 1 : forward 2 : reverse)
13-38 : Auto_ Run Mode Running Direction 6 (0 : STOP 1 : forward 2 : reverse)
13-39 : Auto_ Run Mode Running Direction 7 (0 : STOP 1 : forward 2 : reverse)
Note:
1. Auto Run (sequencer) various modes cab is selected by parameter 13-00.
2. Auto Run (sequencer) mode set up parameters are parameters (13-01 ~ 13-39).
3. Auto run mode (sequencer) operation as selected by parameter 13-00 can be set up as follows : -
a. Setting multi-step frequency commands, by using the available multi-step frequency
commands 0~7as required can be set by parameters (13-00 ~ 13-07).
b. Setting multi-step run time, by parameters (13-16 ~ 13-23) for each required step.
c. FWD/REV direction can be selected by setting of parameters (13-32 ~ 13-39).
d. d. Auto _ Run Mode Frequency Command 0 is3-01, running time is 13-16, Running Direction
13-32.
Some examples in auto_run mode as follows:
(A) Single Cycle Running (13-00= 1, 4)
The inverter will run for a single full cycle based upon the specified setting mode. Then, it
will stop.
‧ For example :
13-00=1（or 4）
‧ Panel Frequency (3-01)=15 Hz 13-01=30Hz 13-02=50Hz 13-03=20Hz
13-16=20s 13-17=25s 13-18=30s 13-19=40s
13-32=1 13-33=1 13-34=1(FWD) 13-35=2(REV)
‧ 13-04 ~ 13-07=0Hz， 13-20 ~ 13-23=0s，13-36 ~ 13-39=0

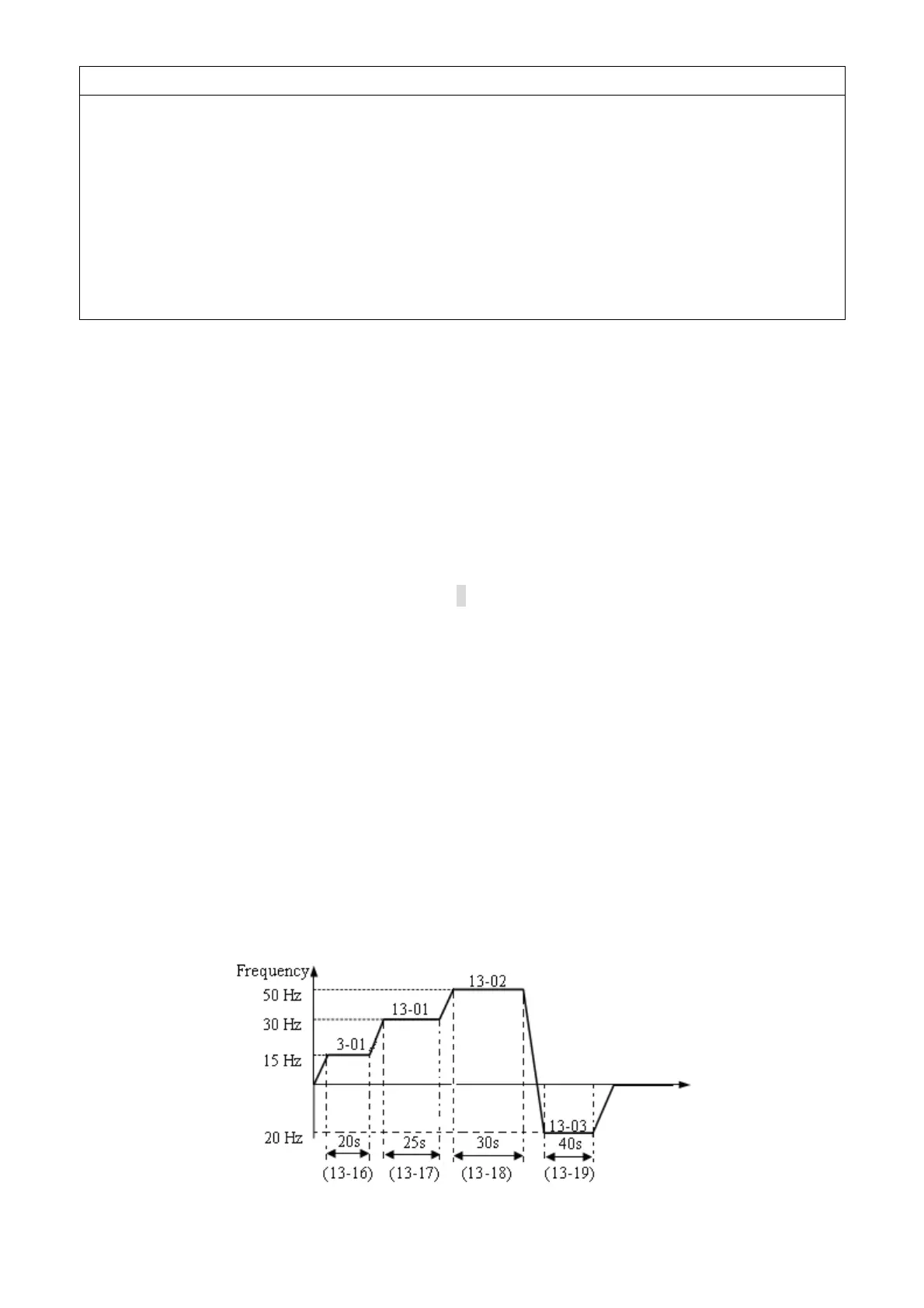

Figure 4-29 Single cycle auto run
