(B) Periodic cycle Running (13-00＝2, 5)
The inverter will repeat the same cycle periodically.
For example:
13-00=2(or 5)
13-01 ~ 13-03 , 13-16 ~ 13-23 , 13-32 ~ 13-39 : Same setting as the example (A)
(C) Auto_Run Mode for Single Cycle (13-00 = 3, 6)
The speed of final step will be held to run.
For example:
13-00 = 3(or 6)
Panel Frequency (3-01) =15 Hz 13-01=30Hz 13-02=50Hz 13-07=20Hz
13-16=20s 13-17=25s 13-18=30s 13-23=40s
13-32=1 13-33=1 13-34 = 1 13-39=1(FWD)
13-04 ~ 13-06=0Hz ，13-20 ~ 13-22=0s ，13-35 ~ 13-38 ＝ 0
Note: 13-00 = 1~3 : If the inverter stops and re-starts, it will continue running from the unfinished
step, according to the setting of 13-00.
= 4~6 : If the inverter stops and re-starts, it will begin a new cycle and continue
running according to the setting of 13-00.

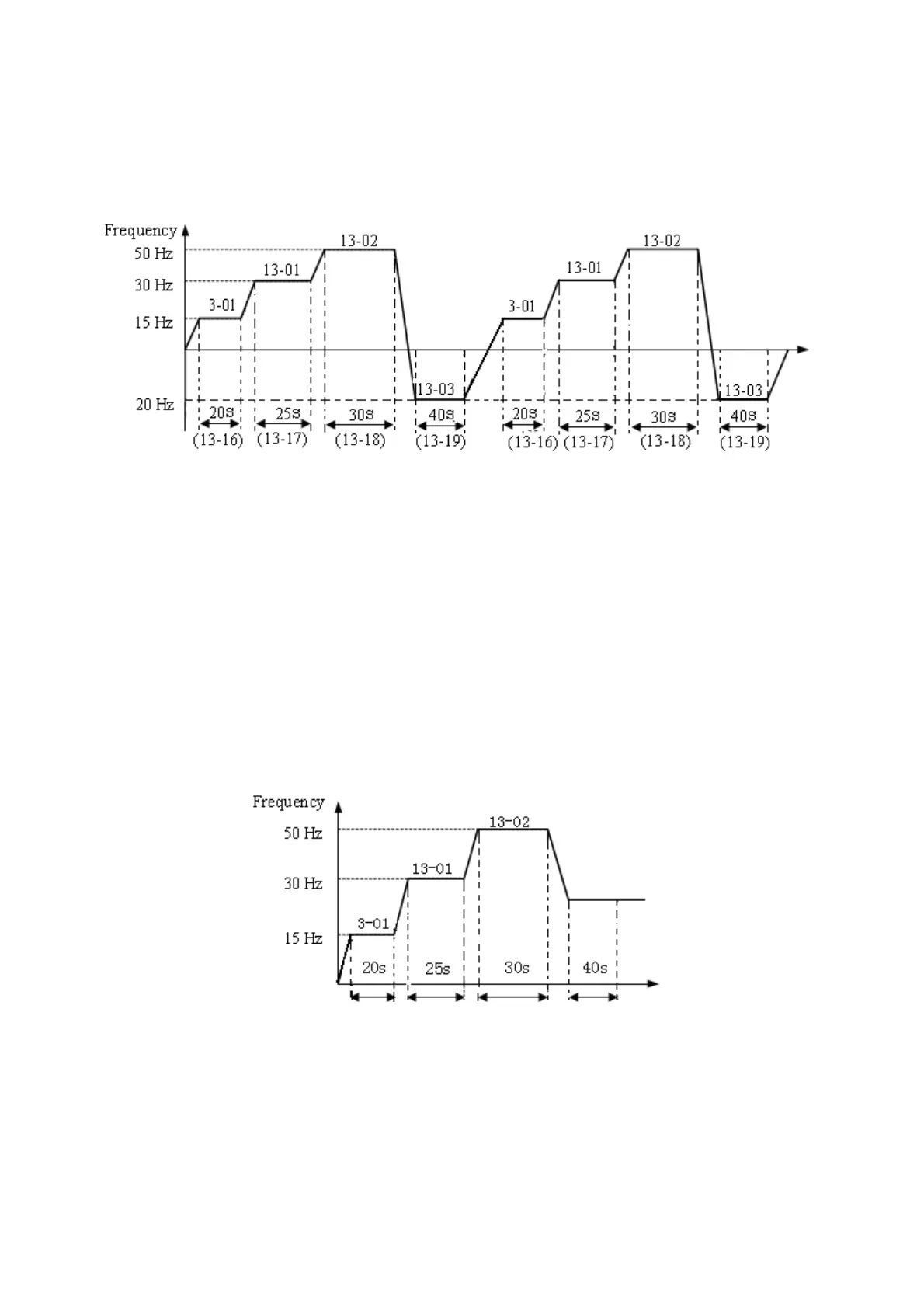

Figure 4-30 Periodic cycle auto run
Figure 4-31 Single cycle auto run: final step hold
(13-16) (13-17) (13-18) (13-23)
13-07
