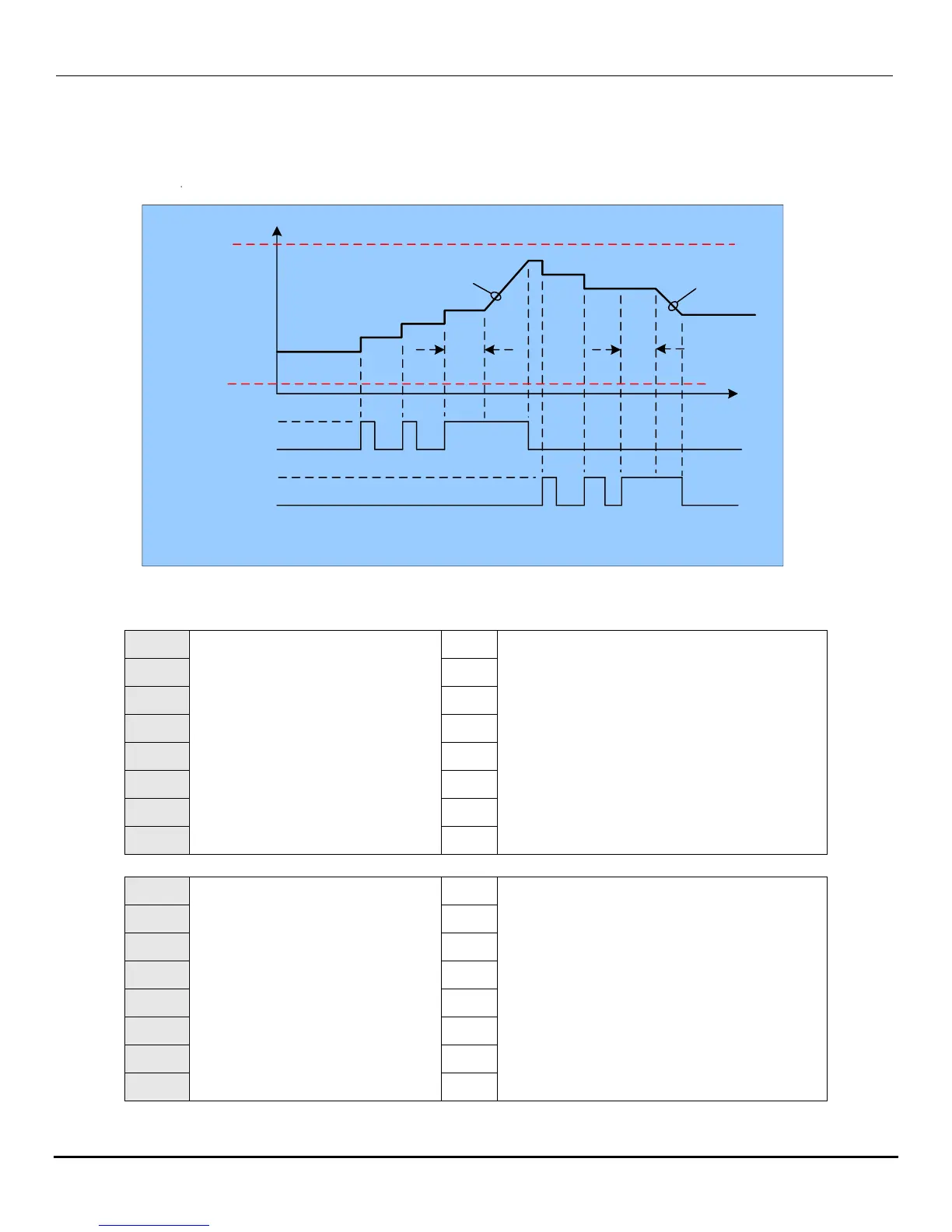

2.) A060 = 0.01 to 5.00: When the Up / Down terminal is ON, the output frequency steps at the incremental
frequency set by A060. If Up / Down signal is ON for more than 2 seconds, the output frequency will ramp
continuously toward the frequency limits until it is turned OFF. (See fig. below)
ON
ON
OFF
OFF
UP
DOWN
Output Frequency
Up / Down profile example A060=0.01
b005 Upper
frequency limit
b006 Lower
frequency limit
2
Sec.
Ramp
2
Sec.
Ramp
Fig. 19.11
A061
Auto_Run Mode Frequency
Command
1
0 – 400 Hz
A062
2
A063
3
A064
4
A065
5
A066
6
A067
7
A068
8
A071
Auto_Run Mode Operation
Selection
1
0 –3600 Sec.
A072
2
A073
3
A074
4
A075
5
A076
6
A077
7
A078
8
Cont
