4-23
01- 08 Up/Down keep Frequency mode
range
When Up/Down is used,，and he inverter stops：
【0】：The set frequency will be maintained.
【1】：the preset frequency is reset to 0 Hz
【2】：The set frequency will be maintained.，and the UP/Down is available.

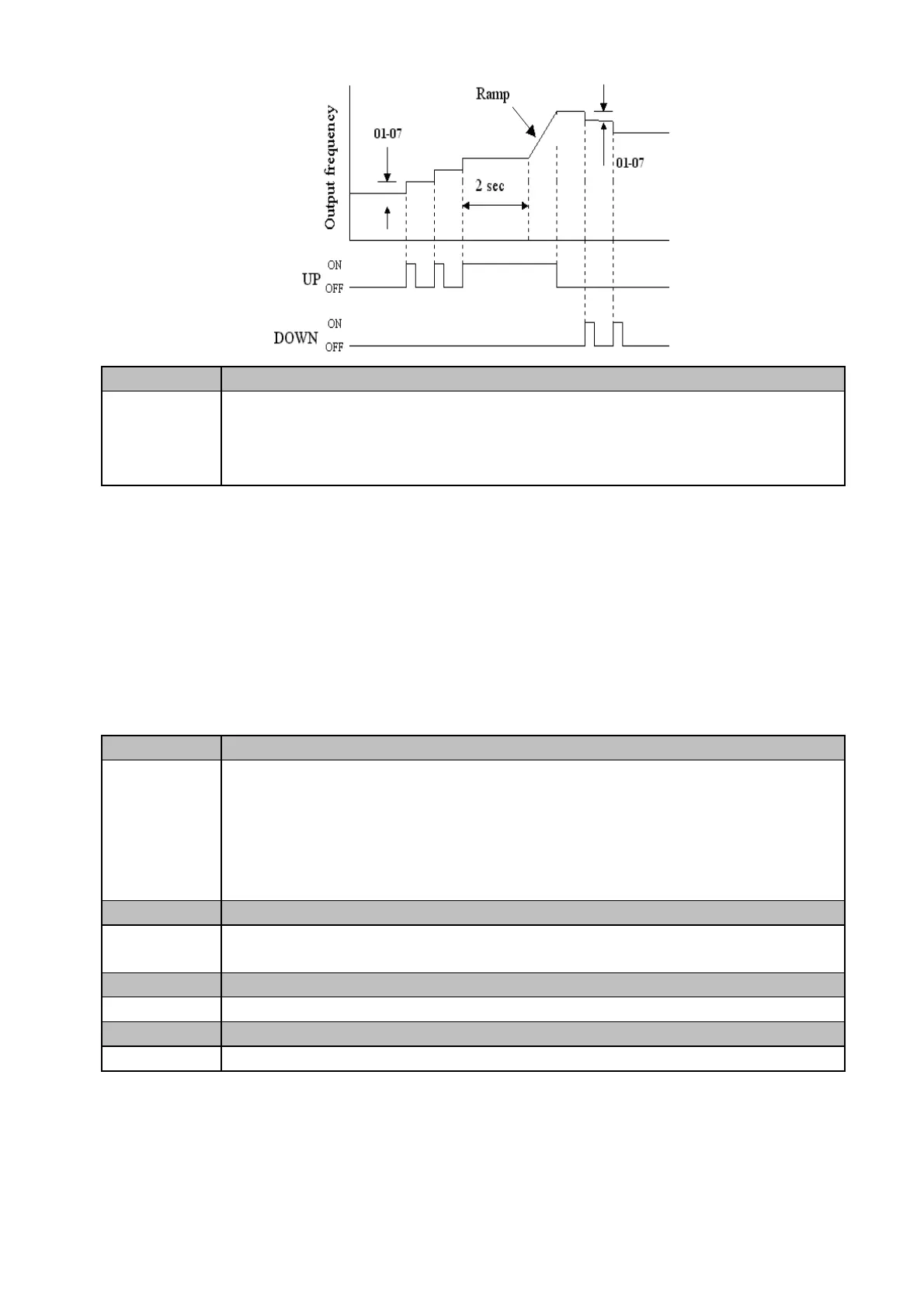

1).01-08=0: the inverter will accelerate to the speed set in parameter 03- 01 as receiving the Run command and run
at such certain speed. The inverter begins to accelerate (decelerate) as the UP (Down) terminal is energized.
The inverter will hold the speed as the UP/DOWN command released. When the Run Signal releases, the
inverter will ramp stop or stop which determined by the 04-01. It will store the frequency when the run signal is
removed. UP/DOWN keys are idle when the inverter is stopped. The keypad is available to modify the preset
frequency (03-01). If 1-08=2, the UP/Down is available as the inverter stops.
2).01-08=1: as the Run terminal is energized, the inverter operates from 0 Hz, the Function of UP/DOWN is same as
the above description. When the Run signal is released, the inverter will ramp stop or stop output (determined
by 04-01) to 0 Hz. The next run command will always begin from 0 Hz.
01-09 Output Relay RY1 Operation Mode
range
【0】：Run
【1】：Frequency Reached
【2】：Fault
【3】：Set Frequency (01-11 ±01-12)
【4】：Frequency Threshold Level (> 01-11) - Frequency Reached
【5】：Frequency Threshold Level (< 01-11) - Frequency Reached
01-10 Output Relay TR1 Operation Mode
range
【0】：A contact (NO)
【1】：B contact (NC)
01-11 Frequency Reached Output Setting
range
【0.00~400.00】 Hz
01-12 Frequency Detection Range
range
【0.00~30.00】 Hz
