13 115-0917-010
Assembling the Nova DVR SATURN
Warning! Seek help when moving the NOVA DVR Saturn lathe and its heavier components to help avoid risk of injury. Read
and understand the contents of this manual and recommended procedures before attempting to assemble or operate the Lathe or
its parts. DO NOT CONNECT POWER ON LATHE UNTIL FULLY ASSEMBLED.
1. Unpack the lathe and components from the shipping container. This is best done by cutting down the
sides of the box to expose the lathe
2. Clean any parts coated with rust preventative with a cloth moistened with a petroleum-bases solvent or
cleaner, such as paint thinner. Coat the lathe bed with paste wax.

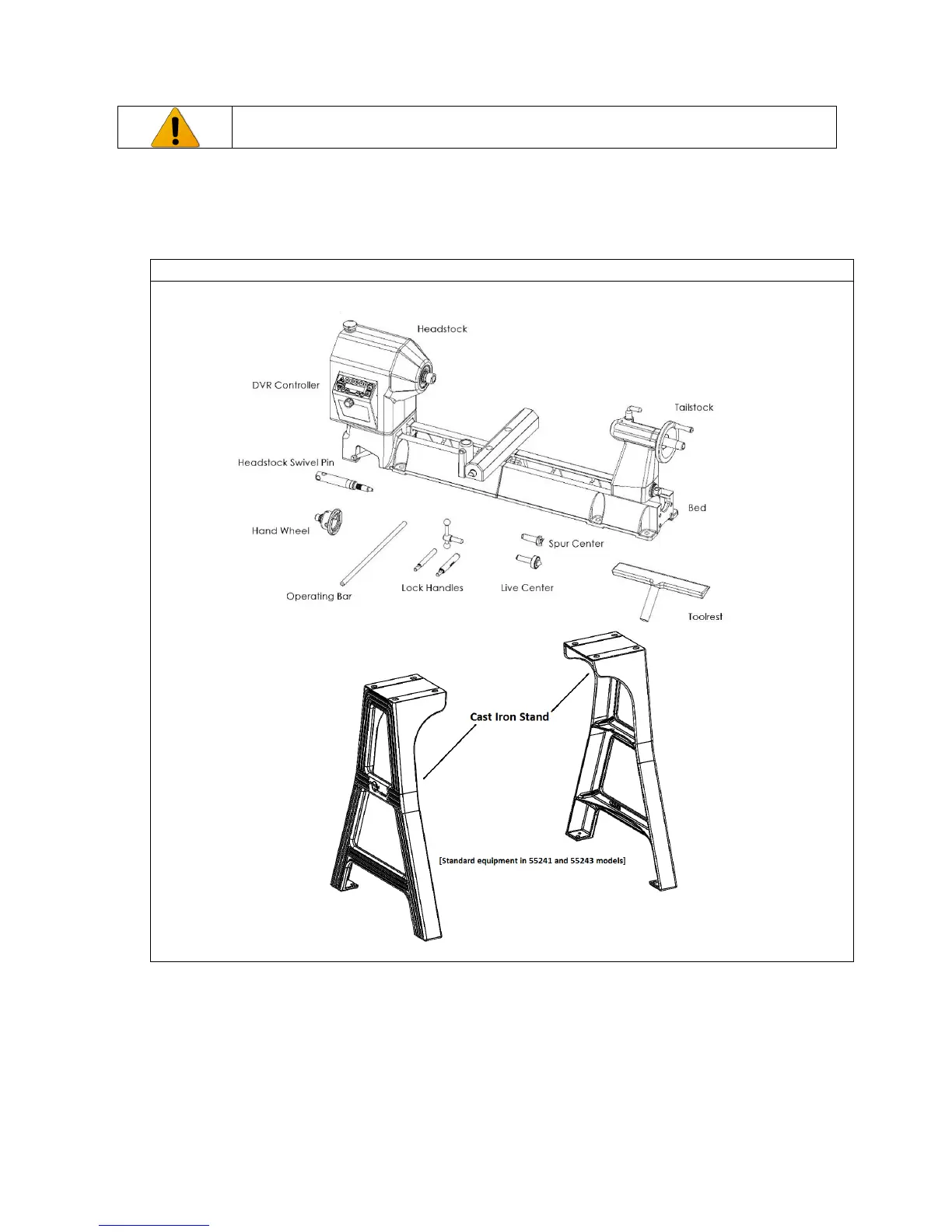

Nova DVR SATURN Components After Unpacking
Assembling the Bed and Legs
3. Attach legs to bed using 6 supplied bolt M12 screws & spring washers and 2 supplied bolt M10 screws
and spring washers.
4. Once legs are fastened to bed, bed weight can be carefully placed on legs; screws must be fully tightened
down before further assembly.
