Teknatool NOVA DVR SATURN - Voltage Selection

27 115-0917-010
Voltage Selection
The DVR SATURN can be operated on both 110V input or 220V input. The conversion can be done by replacing the power connector. To
convert the DVR SATURN to run on 220V input:
!
Warning!
This procedure should only be undertaken by a suitably qualified person. Electricity is a very dangerous hazard which may
lead to death therefore the work needs to be inspected before the lathe is plugged back in to the wall socket.
Equipment Required
1 x NEMA 6-15P Plug (Or 15A rated plug)
Step No.
Description
1.
The original 110V plug
needs to be switched to a
220V plug.
Note:
220V plug should be a 15A
minimum rated. An
example of this type of plug
is the NEMA 6-15P plug.

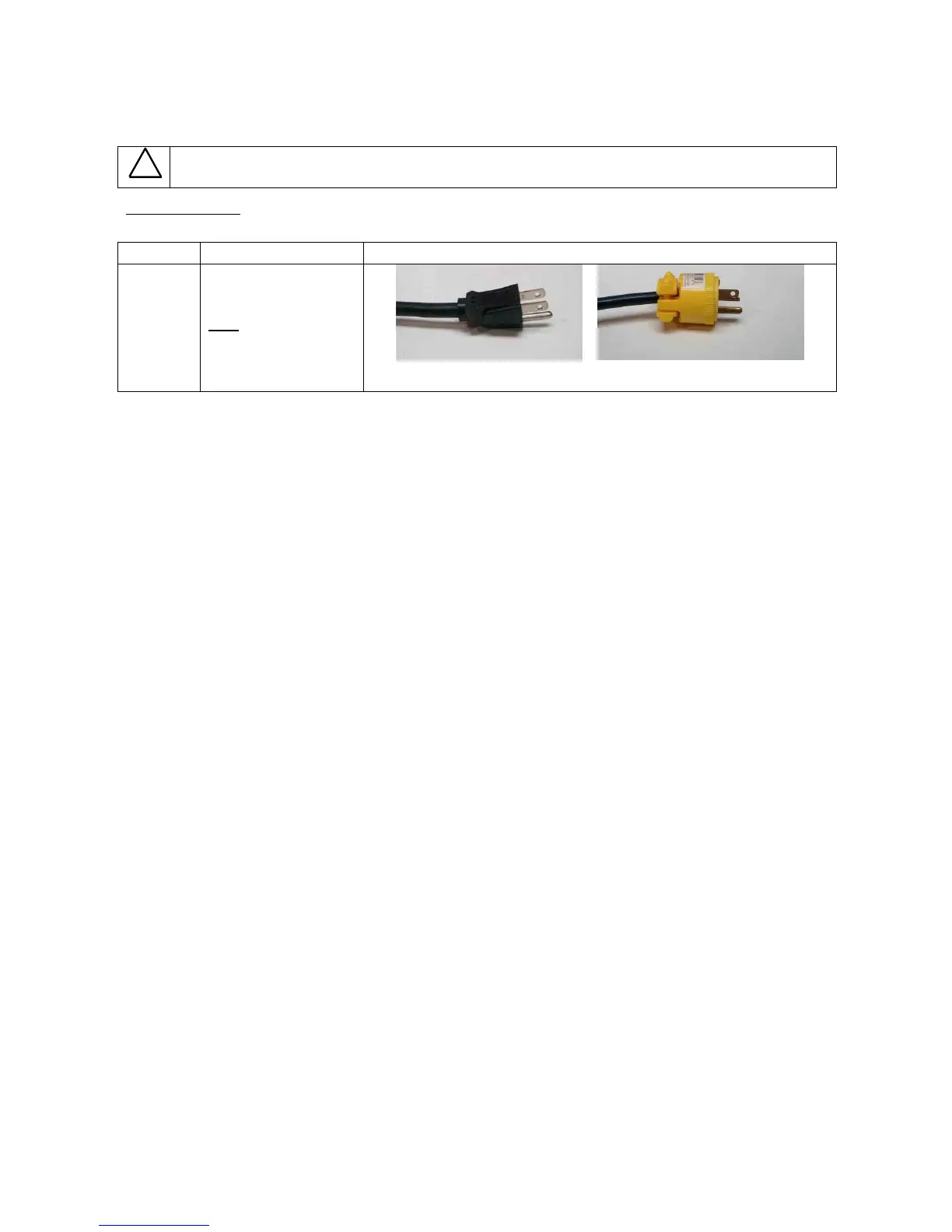

Figure 1: Original 110V Plug
Figure 2: NEMA 6-15P Plug
