Tektronix 2205 Service Manual

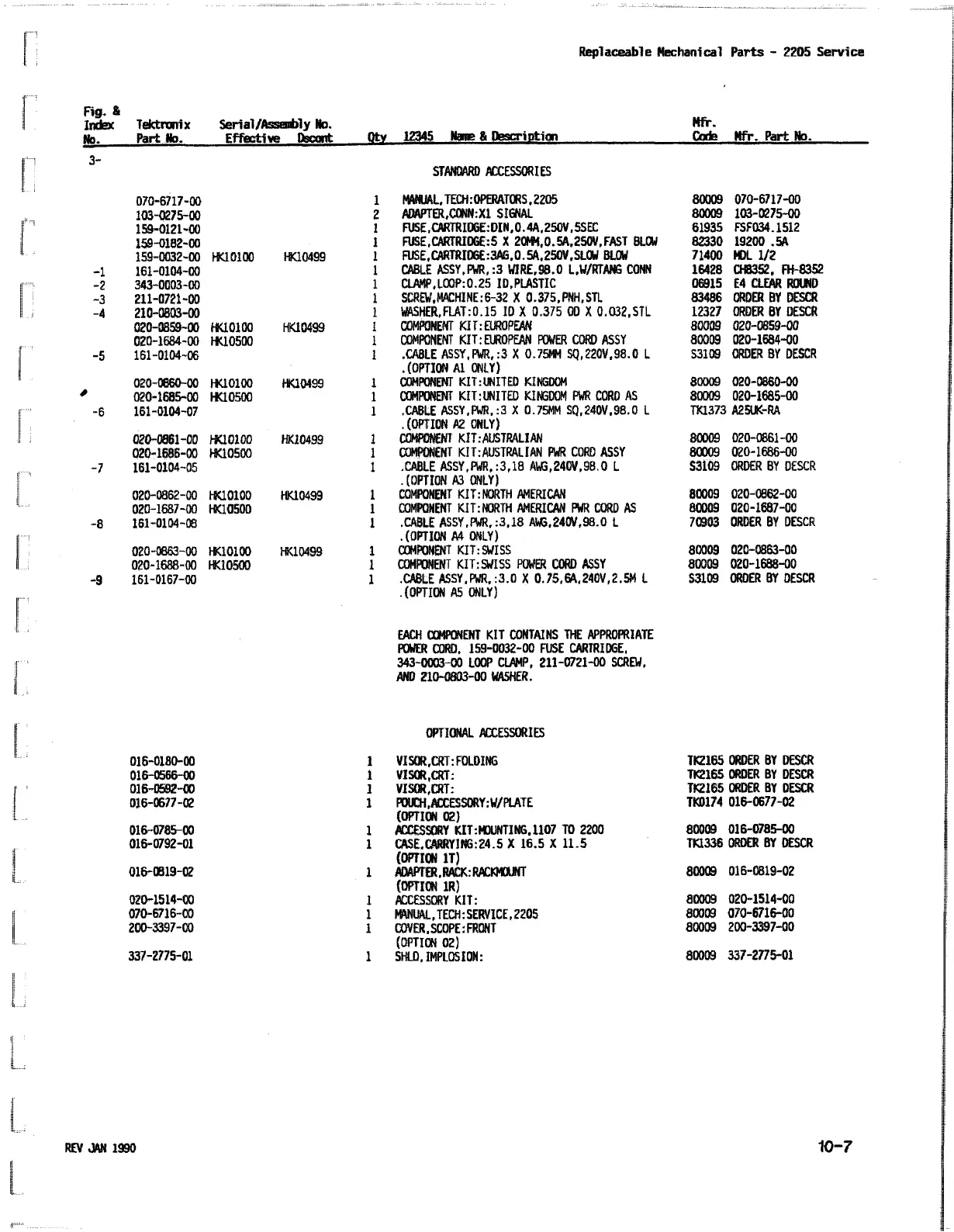

Replaceable Mechanical P arts - 2205 S erv ice
Fig . &
Index Tektronix Serial/Assenbly No.
Ho. Part ita. Effectiv e Oscont Otv 12345 Name & Description
3-
STANQARD ACCESSORIES
M ir.
fa te M fr. Part No.
070-6717-00
1
MANUAL,TECHrOPERATQRS,2205
80009 070-6717-00
103-0275-00
2
ADAPTER,C0NN:X1 SI6NAL 80009
103-0275-00
159-0121-00
1
FUSE,CARTRI0GE:DIN,0.4A,250V,5SEC
61935 F5FQ34.1512
159-0182-00
1
FUSE,CARTRIDGES X 20MM,0.5A,250V,FAST BLOW
82330
19200 ,5A
159-0032-00 HK10100 HK10499
1
FUSE,CARTRI06£:3AG.0.5A.25QV,SL0W BLOW
71400
MOL 1/2
-1
161-0104-00
1
CABLE ASSY.PWR, :3 W RE.98.0 L.W/RTANG CONN
16428
CH8352, FH-8352
-2
343-0003-00
1
CLAMP,LOOP:0.25 ID,PLASTIC 06915 E4 CLEAR ROUND
-3 211-0721-00
1
SCREW,MACHINE:6-32 X 0.375,PNH,STL
83486
ORDER BY DESCR
-4 210-0803-00
1
MASHER,FLAT:0.15 ID X 0.375 OD X 0 .032,STL 12327
ORDER BY DESCR
020-0859-00 HK10100 HK10499
I
COMPONENT KIT:EUROPEAN 80009
020-0859-00
020-1684-00 HK10500
1
COMPONENT KIT:EUROPEAN POWER CORD ASSY 80009 020-1684-00
-5
161-0104-06
1
.CABLE ASSY,PWR,:3 X 0.75W SQ.220V.98.0 L
.(OPTION A1 ONLY)
S3109
ORDER BY DESCR
020-0860-00 HK10100
FK10499
1
COMPONENT KIT:UNITED KINGDOM 80009
020-0860-00
*
020-1685-00 HK10500
1
COMPONENT KIT;UNITED KINGDOM PWR CORO AS 80009
020-1685-00
-6
161-0104-07 1
.CABLE ASSY.PWR,:3 X 0.75MM SQ,240V,98.0 L
TK1373 A25UK-RA
.(OPTION A2 ONLY)
020-0861-00 HK10100
HK10499 1
COMPONENT KIT.AUSTRALIAN
80009
020-0861-00
020-1686-00 HK10500
1
COMPONENT KIT:AUSTRALIAN PWR CORD ASSY 80009
020-1686-01
-7
161-0104-05
1
.CABLE ASSY.PWR,:3,18 AWG,240V,98.0 L
.(OPTION A3 ONLY)
S3109 ORDER BY DESCR
020-0862-00 HK10100
HK10499
1
COMPONENT KIT:NORTH AMERICAN 80009
020-0862-00
020-1687-00 HK10500 1
COMPONENT KIT:NORTH AMERICAN PWR CORD AS 80009 020-1687-00
-8
161-0104-08 1
.CABLE ASSY.PWR,:3,18 AW3,240V,98.0 L
.(OPTION A4 ONLY)
70903
ORDER BY DESCR
020-0863-00 HK1Q100
HK1Q499
1
COMPONENT KIT:SWISS
80009
020-0863-00
020-1688-00 HK10500 1
COMPONENT KIT:SWISS POWER CORD ASSY 80009
020-1688-00
-9
161-0167-00 1
.CABLE ASSY.PWR.:3.0 X 0.75,6A,240V,2.5M L S3109
ORDER BY DESCR
.(OPTION A5 ONLY)
EACH COMPONENT KIT CONTAINS THE APPROPRIATE
POWER CORO, 159-0032-00 FUSE CARTRIDGE,
343-0003-00 LOOP CLAMP, 211-0721-00 SCREW,
AND 210-0803-00 WASHER.
016-0180-00
1
OPTIONAL ACCESSORIES
VIS0R,CRT:F0L0IN6
TK2165 ORDER BY DESCR
016-0566-00
1
VISOR,CRT:
TK2165 ORDER BY DESCR
016-0592-00 1 VISOR,CRT:
TK216S ORDER BY DESCR
016-0677-02
1
POUCH, ACCESSORY :W/PLATE
TK0174 016-0677-02
016-0785-00
1
(OPTION 02)
ACCESSORY KIT:MDUNTING,1107 TO 2200
80009 016-0785-00
016-0792-01
1
CASE.CARRYING:24.5 X 16.5 X 11.5
TK1336 ORDER BY DESCR
016-0819-02
1
(OPTION IT )
ADAPTER. RACK: RACKMOUNT
80009 016-0819-02
020-1514-00
1
(OPTION 1R)
ACCESSORY KIT:
80009 020-1514-00
070-6716-00
1 MANUAL, TECH:SERVICE ,2205
80009 070-6716-00
200-3397-00
1
COVER.SCOPE:FRONT
80009 200-3397-00
337-2775-01
1
(OPTION 02)
SHLD,IMPLOSION:
80009 337-2775-01
REV JAN 1990 10-7
