Tektronix 2205 Service Manual

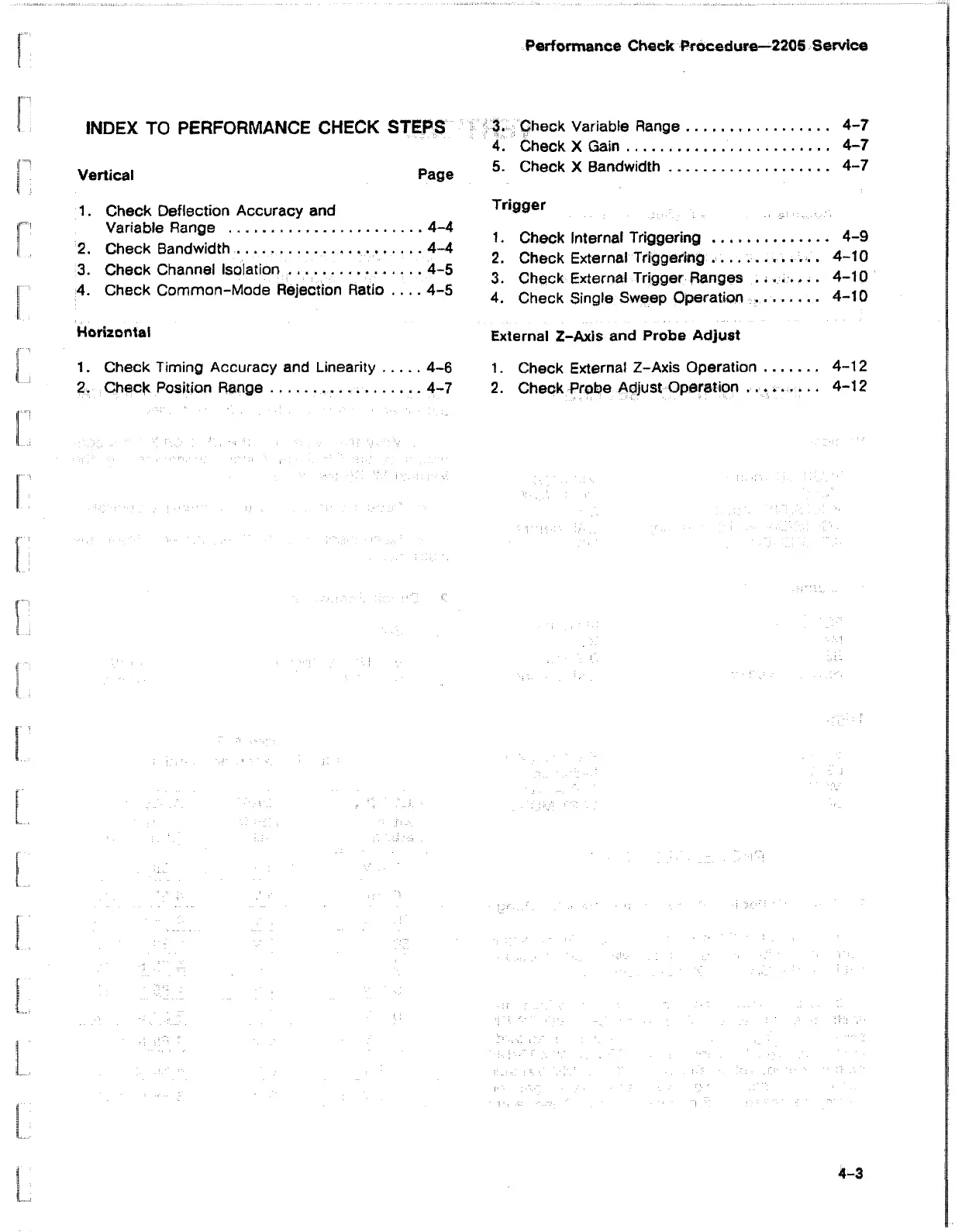

INDEX TO PERFORMANCE CHECK STEPS
J Vertical Page
1. Check Deflection Accuracy and
! .. 1 Variable Range 4-4
2. Check Bandwidth .................. ..,. . . . .. 4-4
3. Check Channel Isolation ................ 4-5
[ 4. Check Common-Mode Rejection Ratio .... 4-5
I
Horizontal
| 1. Check Timing Accuracy and Linearity...........4-6
2. Check Position Range ..................... 4-7
Performance Cheek Procedure—2205 Service
3 Check Variable Range ................................. 4-7
4. Check X Gain ........................ 4-7
5. Check X Bandwidth ..................................... 4-7
Trigger
t. Check Internal Triggering . .......................... 4-9
2. Check External Triggering ............. 4-10
3. Check External Trigger Ranges . . , ,:i .. . 4-10
4. Check Single Sweep Operation . .. ............ 4-10
External Z-Axis and Probe Adjust
1. Check External Z-Axis Operation .......... . 4-12
2. Check Probe Adjust Operation ................ 4-12
4-3
