Tektronix 2205 Service Manual

Performance Check Procedure—2205 Service

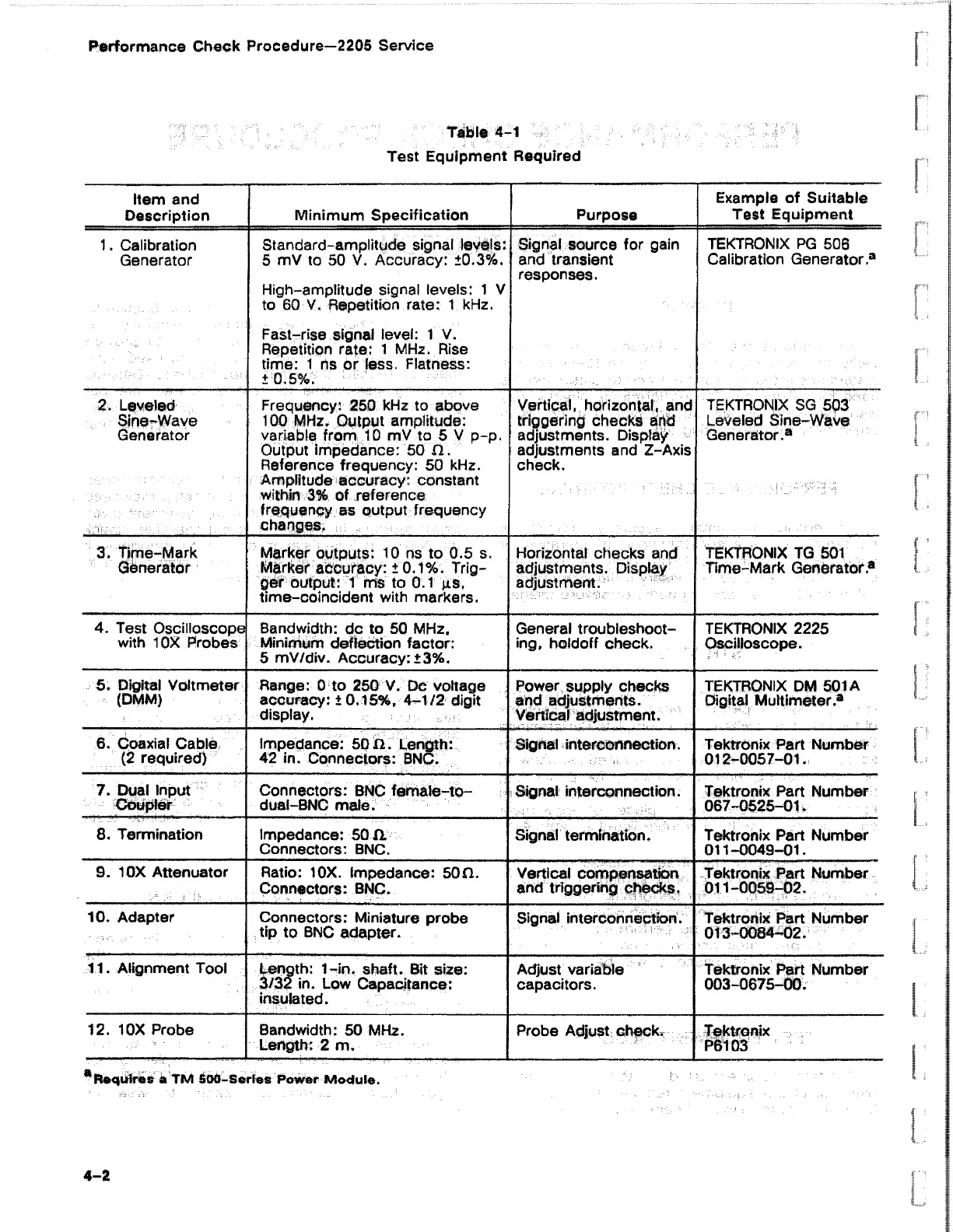

■' ■ Table 4-1
Test Equipment Required
Item and
Description
Minimum Specification
Purpose
Example of Suitable
Test Equipment
1. Calibration
Generator
Standard-amplitude signal (evils:
5 mV to 50 V. Accuracy: +0.3%.
High-amplitude signal levels: 1 V
to 60 V. Repetition rate: 1 kHz.
Fast-rise signal level: 1 V.
Repetition rate: 1 MHz. Rise
time: 1 ns or less. Flatness:
i 0.5%.
Signal source for gain
and transient
responses.
TEKTRONIX PG 506
Calibration Generator.8
2. Leveled
Sine-Wave
Generator
Frequency: 250 kHz to above
100 MHz. Output amplitude:
variable from 10 mV to 5 V p-p.
Output impedance: 50 £1.
Reference frequency: 50 kHz.
Amplitude accuracy: constant
within 3% of reference
frequency as output frequency
changes. ::
Vertical, horizontal, and
triggering checks and
adjustments. Display
adjustments and Z-Axis
check.
TEKTRONIX SG 503
Leveled Sine-Wave
Generator.8
3. Time-Mark
Generator
Marker outputs: 10 ns to 0.5 s.
Marker accuracy: + 0.1%. Trig
ger output: 1 ms to 0.1 ns,
time-coincident with markers.
Horizontal checks and
adjustments. Display
adjustment.
TEKTRONIX TG 501
Time-Mark Generator.8
4. Test Oscilloscope
with 10X Probes
Bandwidth: dc to 50 MHz,
Minimum deflection factor:
5 mV/div. Accuracy:±3%.
General troubleshoot
ing, holdoff check.
TEKTRONIX 2225
Oscilloscope.
5. Digital Voltmeter
(DMM)
Range: 0 to 250 V. Dc voltage
accuracy: 10.15%, 4-1/2 digit
display.
Power supply checks
and adjustments.
Verttca 1 adjustment.
TEKTRONIX DM 501A
Digital Multimeter.8
6. Coaxial Cable
(2 required)
Impedance: 50X1. Length:
42 in. Connectors: BNC.
Signal interconnection. Tektronix Part Number
012-0057-01.
7. Dual Input
: Coupler ■
Connectors: BNC femaie-to-
dual-BNC male.
Signal interconnection. Tektronix Part Number
067-0525-01.
8. Termination
Impedance: 50X1
Connectors: BNC.
Signal termination.
Tektronix Part Number
011-0049-01.
9. 10X Attenuator
Ratio: 10X. Impedance: 50X1.
Connectors: BNC.
Vertical compensation
arid triggering checks.
Tektronix Part Number
011-0059-02.
10. Adapter
Connectors: Miniature probe
tip to BNC adapter.
Signal interconnection. Tektronix Part Number
013-0084-02.
11. Alignment Tool
Length: 1-in. shaft. Bit size:
3/32 in. Low Capacitance:
insulated.
Adjust variable
capacitors.
Tektronix Part Number
003-0675-00.
12. 10X Probe
Bandwidth: 50 MHz.
Length: 2 m.
Probe Adjust check. Tektronix
P6103
..................
Requires a JM 5O0-Serles Power Module.
4-2
