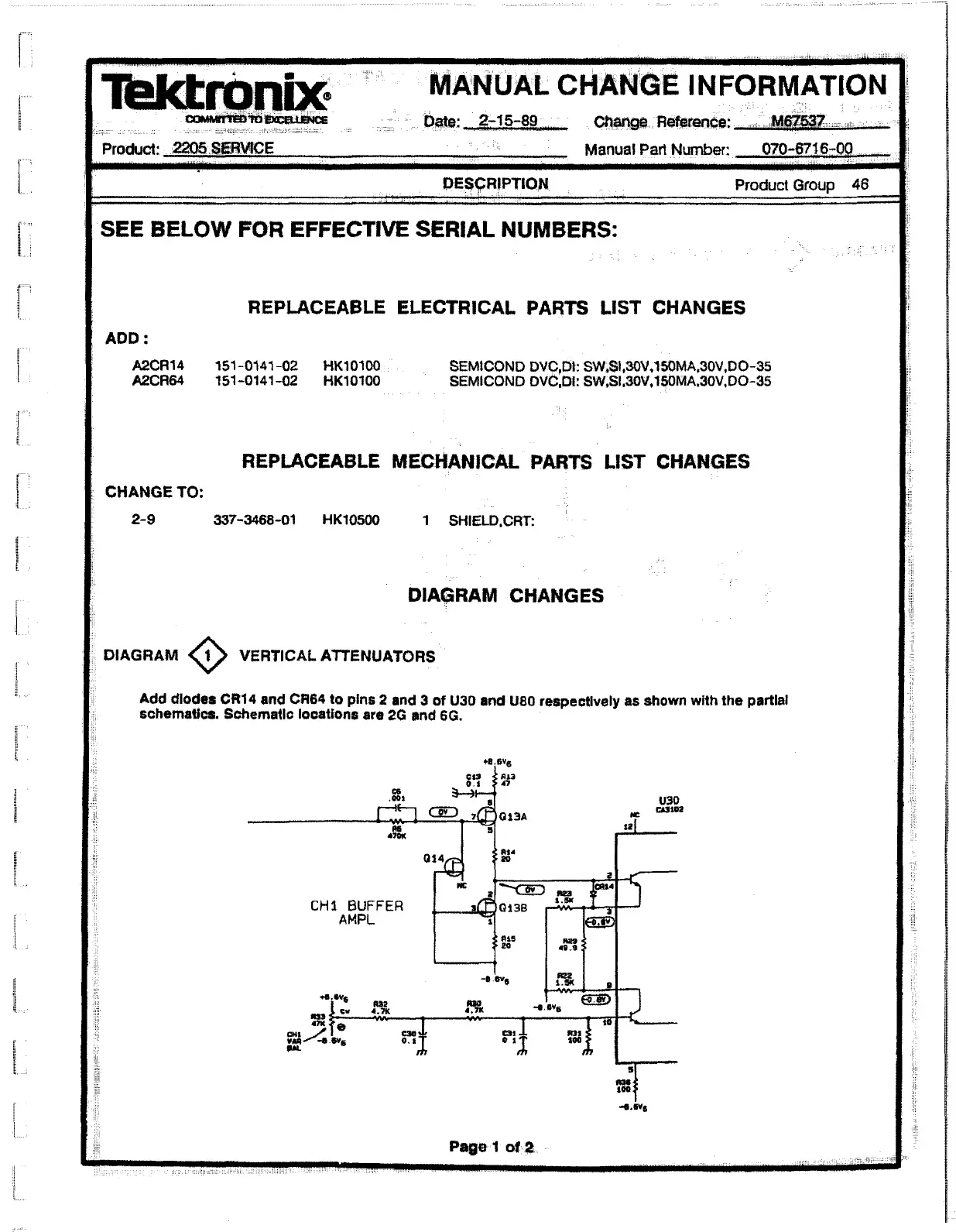

Tektronix
MANUAL (
CHANGE INFORMATION
c o M iw r rc o T o e x c e l l e n c e
Date: 2-15-89
Chanoe Reference: M67537
Product- 2205 SERVICE
Manual Part Number: 070-6716-00
DESCRIPTION
Product Group 46
SEE BELOW FOR EFFECTIVE SERIAL NUMBERS:
REPLACEABLE ELECTRICAL PARTS LIST CHANGES
AD D :
A2CR14 151-0141-02 HK10100 SEMICOND DVC.Dt: SW,SI,30V.150MA,30V,DO-35
A2CR64 151-0141-02 HK10100 SEMICOND DVC.DI: SW,SI,30V,150MA.30V,DO-35
REPLACEABLE MECHANICAL PARTS LIST CHANGES
CHANGE TO:
2-9 337-3468-01 HK10500 1 SHIELD.CRT:
DIAGRAM CHANGES
DIAGRAM VERTICAL ATTENUATORS
Add diodes CR14 and CR64 to pins 2 and 3 of U30 and U80 respectively as shown with the partial
schematics. Schematic locations are 2G and 6G.
Page 1 of 2
