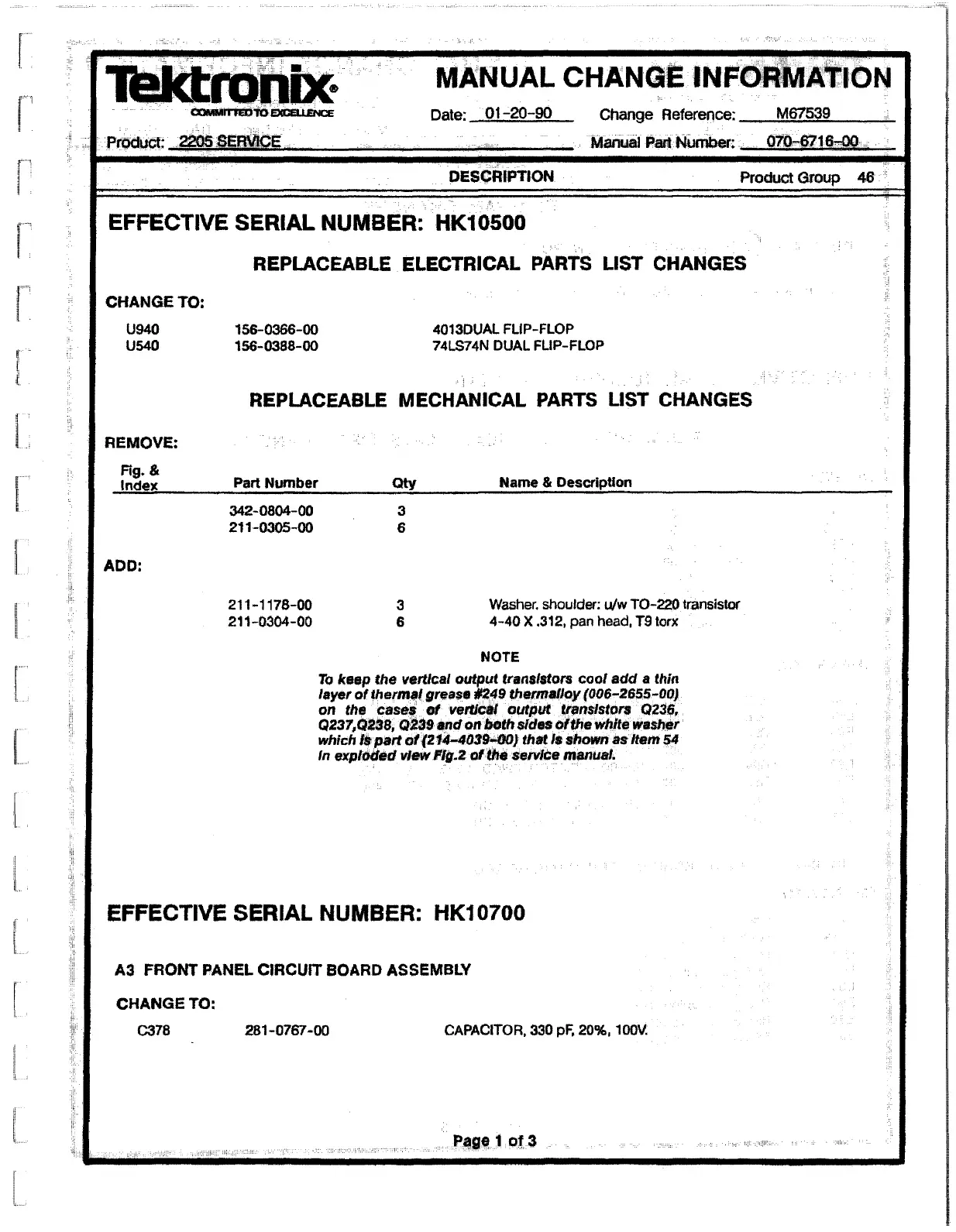

C O M M IT tE D lO EXCELLENCE
Product: 2205 SERVICE
DESCRIPTION Product Group 46
MANUAL CHANGE INFORMATION
Date: 01-20-90 Change Reference: M67539
______
. Manual Part Number: 070^-6716-00
EFFECTIVE SERIAL NUMBER: HK10500
REPLACEABLE ELECTRICAL PARTS LIST CHANGES
CH A N GE TO :
U940 156-0366-00 4013DUAL FLIP-FLOP
U540 156-0388-00 74LS74N DUAL FLIP-FLOP
REPLACEABLE MECHANICAL PARTS LIST CHANGES
REMOVE:
Fig. &
Index
_________
Part Number
_________
Qty
__________
Name & Description
_______________
342-0804-00 3
211-0305-00 6
ADD:
211 -1178-00 3 Washer, shoulder: u/w TO-220 transistor
211-0304-00 6 4-40 X.312, pan head, T9 torx
NOTE
To keep the vertical output transistors cool add a thin
layer of thermal grease 0249 thermalloy (006-2655-00)
on the cases of vertical output transistors Q236,
0237,0238,0239 and on both sides of the white washer
which IS part of (214-4039-00) that Is shown as Item 54
In exploded view Flg.2 of the service manual.
EFFECTIVE SERIAL NUMBER: HK10700
A3 FRO NT PANEL C IR CU IT BOARD ASSEMBLY
CHANGE TO:
C378 281 -0767-00 CAPACITOR, 330 pF, 20%, 100V.
Pagt lo ts
