Tektronix 2205 Service Manual

Specification—2205 Service
Table 1-3
Mechanical Characteristics
Characteristics
Description
Weight with Power Cord 6.7 kg (14.8 lbs) or less.
Domestic Shipping Weight 9.1 kg (20.1 lbs) or less.
Dimensions
Height
138 mm (5.4 in).
Width
With Handle
380 mm (15.0 in ).
Without Handle
327 mm (12.9 in).
Depth
Without Front Cover
440 mm (17.2 in ).
With Optional Front Cover 445 mm (17.5 in).
With Handle Extended
516 mm (20.3 in).
o
<
3*:
<
UJ
CL
o
Q
g
10 kHz 50 kHz 100 kHz 5 0 0 kHz 1 MHz 50 MHz
6716-02
1—7

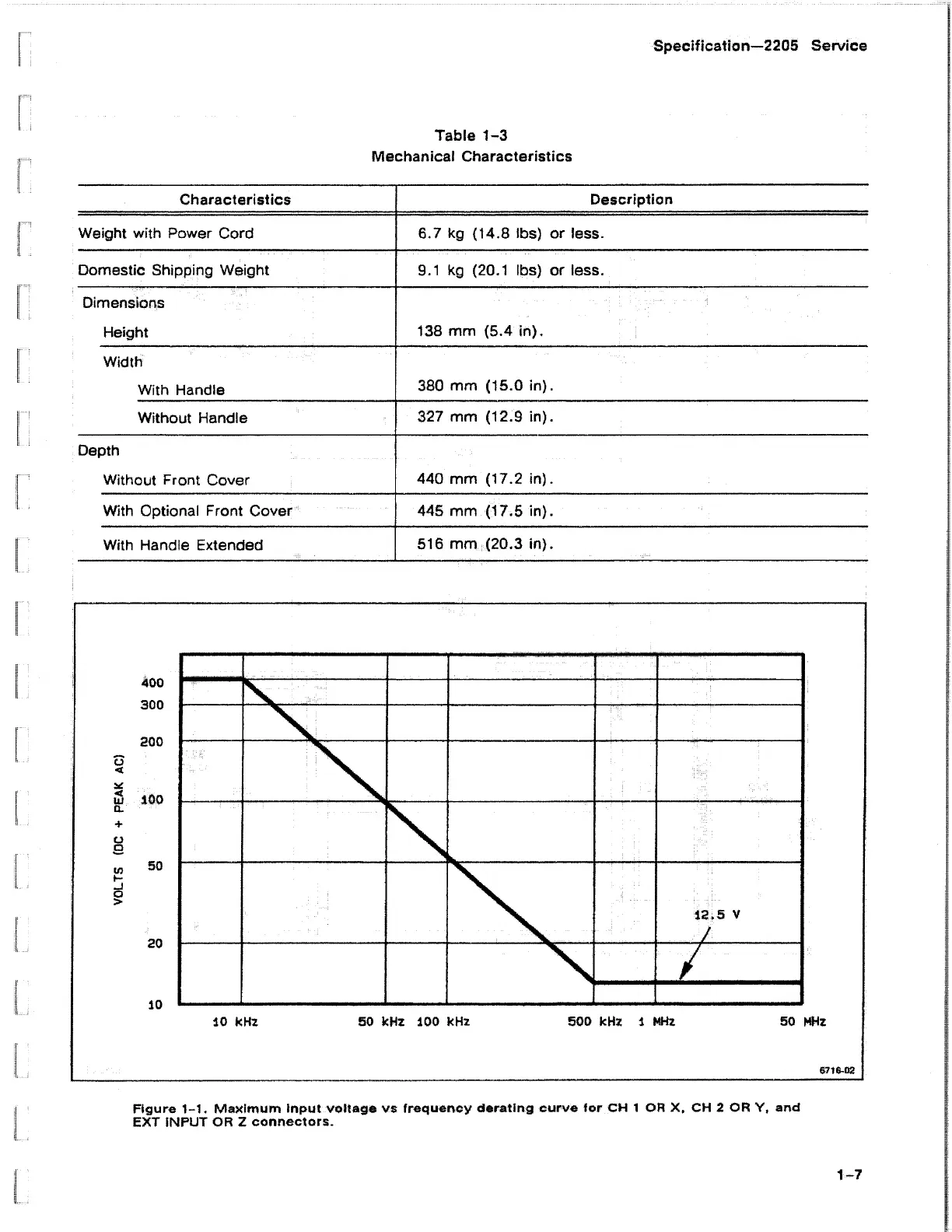

Figure 1-1. Maximum input voltage vs frequency derating curve for CH 1 OR X, CH 2 OR Y, and
EXT INPUT OR Z connectors.
