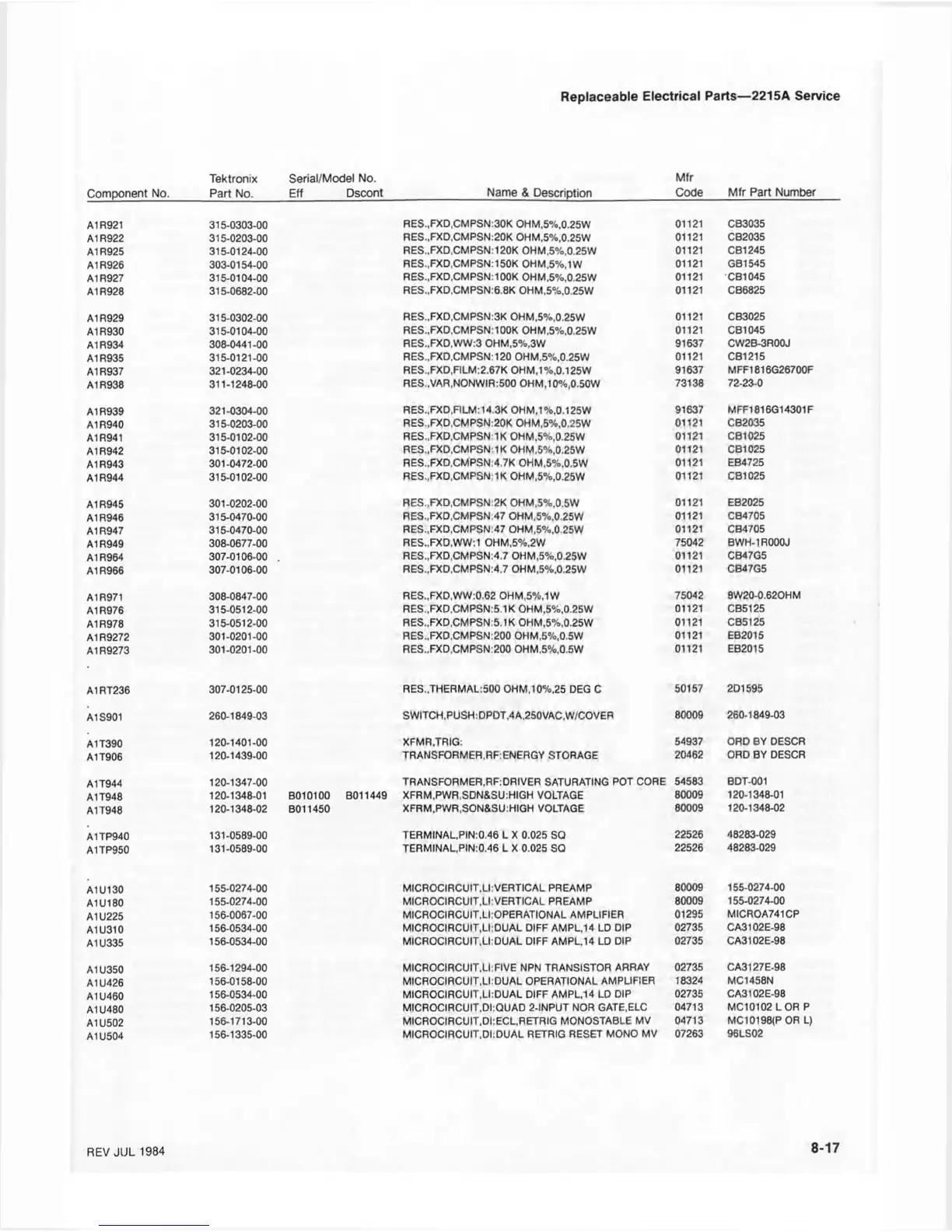

Tektronix 2215A

Replaceable Electrical Parts—2215A Service
Tektronix Serial/Model No. Mfr
Component No.
Part No. Eff
Dscont Name & Description
Code
Mfr Part Number
A1R921 315-0303-00
RES.,FXD,CMPSN:30K OHM.5%.0.25W 01121
CB3035
A1R922
315-0203-00
RES.,FXD.CMPSN:20K OHM.5%.0.25W
01121 CB2035
A1R925
315-0124-00
RES.,FXD.CMPSN:120K OHM,5%,0.25W
01121 CB1245
A1R926
303-0154-00
RES.,FXD.CMPSN:150K OHM,5%,1W 01121
GB1545
A1R927
315-0104-00
RES.,FXD.CMPSN:100K OHM,5%,0.25W 01121
CB1045
A1R928 315-0682-00
RES.,FXD.CMPSN:6.8K OHM,5%,0.25W
01121 CB6825
A1R929
315-0302-00
RES.,FXD,CMPSN:3K OHM,5%.0.25W
01121 CB3025
A1R930
315-0104-00
RES..FXD,CMPSN:100K OHM.5%,0.25W
01121
CB1045
A1R934
308-0441-00
RES..FXD,WW:3 OHM,5%,3W 91637 CW2B-3RO0J
A1R935
315-0121-00
RES.,FXD,CMPSN:120 OHM.5%,0.25W
01121 CB1215
A1R937 321-0234-00
RES.,FXD,FILM:2.67KOHM,1%,0.125W
91637
MFF1816G26700F
A1R938
311-1248-00
RES.,VAR,NONWIR:500 OHM.10%,0.50W
73138 72-23-0
A1R939
321-0304-00
RES..FXD,FILM:14.3K OHM,1%,0.125W
91637 MFF1816G14301F
A1R940
315-0203-00
RES..FXD.CMPSN:20K OHM.5%,0.25W
01121 CB2035
A1R941 315-0102-00
RES..FXD.CMPSN:1K OHM,5%.0.25W 01121
CB1025
A1R942 315-0102-00
RES.,FXD,CMPSN:1K OHM,5%.0.25W
01121 CB1025
A1R943
301-0472-00
RES..FXD.CMPSN:4.7K OHM,5%,0.5W
01121 EB4725
A1R944
315-0102-00
RES..FXD.CMPSN:1K OHM,5%,0.25W
01121
CB1025
A1R945
301-0202-00
RES.,FXD,CMPSN:2K OHM,5%.0.5W 01121
EB2025
A1R946
315-0470-00
RES.,FXD,CMPSN:47 OHM,5%,0.25W
01121 CB4705
A1R947
315-0470-00
RES..FXD.CMPSN:47 OHM,5%,0.25W
01121 CB4705
A1R949
308-0677-00
RES.,FXD.WW:1 OHM,5%,2W 75042 BWH-1R000J
A1R964
307-0106-00 .
RES..FXD,CMPSN:4.7 OHM,5%.0.25W
01121 CB47G5
A1R966
307-0106-00
RES.,FXD,CMPSN:4.7 OHM,5%,0.25W
01121 CB47G5
A1R971
308-0847-00
RES.,FXD.WW:0.62 OHM,5°A,1W
75042 8W20-0.620HM
A1R976
315-0512-00
RES.,FXD,CMPSN:5.1 K OHM.5%,0.25W
01121 CB5125
A1R978
315-0512-00
RES.,FXD,CMPSN:5.1K OHM,5%,0.25W 01121 CB5125
A1R9272
301-0201-00
RES.,FXD,CMPSN:200 OHM.5%,0.5W
01121 EB2015
A1R9273
301-0201-00
RES..FXD,CMPSN:200 OHM,5%,0.5W 01121
EB2015
A1RT236
307-0125-00
RES.,THERMAL:500 OHM,10%,25 DEG C
50157 2D1595
A1S901
260-1849-03
SWITCH,PUSH:DPDT,4A.250VAC,W/COVER
80009 260-1849-03
A1T390
120-1401-00
XFMR.TRIG:
54937 ORD BY DESCR
A1T906
120-1439-00
TRANSFORMER,RF:ENERGY STORAGE
20462 ORD BY DESCR
A1T944
120-1347-00
TRANSFORMER,RF:DRIVER SATURATING POT CORE
54583 BDT-001
A1T948
120-1348-01 B010100
B011449 XFRM.PWR.SDN&SUlHIGH VOLTAGE
80009
120-1348-01
A1T948
120-1348-02 B011450
XFRM,PWR,SON&SU:HIGH VOLTAGE
80009 120-1348-02
A1TP940
131-0589-00
TERMINAL,PIN:0.46 L X 0.025 SQ
22526 48283-029
A1TP950
131-0589-00
TERMINAL,PIN:0.46 L X 0.025 SQ 22526
48283-029
A1U130
155-0274-00
MICROCIRCUIT.LI:VERTICAL PREAMP
80009
155-0274-00
A1U180
155-0274-00
MICROCIRCUIT,LI:VERTICAL PREAMP
80009 155-0274-00
A1U225
156-0067-00
MICROCIRCUIT,LLOPERATIONAL AMPLIFIER
01295
MICROA741CP
A1U310
156-0534-00
MICROCIRCUIT,LLDUAL DIFF AMPL.14 LD DIP
02735 CA3102E-98
A1U335
156-0534-00
MICROCIRCUIT,LLDUAL DIFF AMPL.14 LD DIP
02735 CA3102E-98
A1U350
156-1294-00
MICROCIRCUIT,LLFIVE NPN TRANSISTOR ARRAY
02735 CA3127E-98
A1U426
156-0158-00
MICROCIRCUIT,LLDUAL OPERATIONAL AMPLIFIER
18324 MC1458N
A1U460
156-0534-00
MICROCIRCUIT,LLDUAL DIFF AMPL.14 LD DIP
02735 CA3102E-98
A1U480
156-0205-03
MICROCIRCUIT,DLQUAD 2-INPUT NOR GATE.ELC
04713
MC10102 LOR P
A1U502
156-1713-00
MICROCIRCUIT,DLECL,RETRIG MONOSTABLE MV
04713
MC10198(P OR L)
A1U504
156-1335-00
MICROCIRCUIT.DLDUAL RETRIG RESET MONO MV
07263
96LS02
