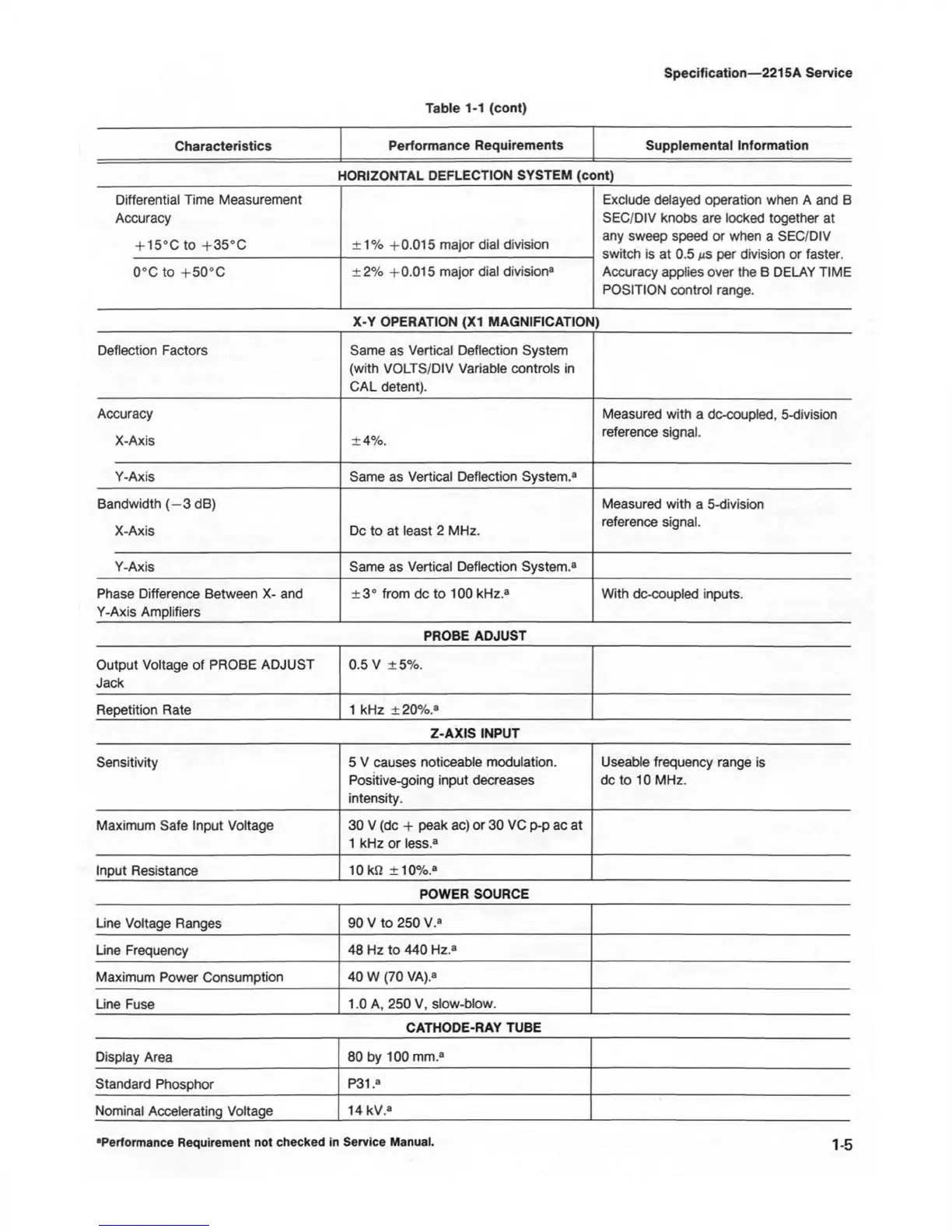

Specification—2215A Service
Table 1-1 (cont)
Characteristics
Performance Requirements Supplemental Information
HORIZONTAL DEFLECTION SYSTEM (cont)
Differential Time Measurement
Accuracy
+ 15°C to +35°C
±1% +0.015 major dial division
Exclude delayed operation when A and B
SEC/DIV knobs are locked together at
any sweep speed or when a SEC/DIV
switch is at 0.5 ns per division or faster.
Accuracy applies over the B DELAY TIME
POSITION control range.
0°C to +50°C
±2% +0.015 major dial division3
X-Y OPERATION (XI MAGNIFICATION)
Deflection Factors
Same as Vertical Deflection System
(with VOLTS/DIV Variable controls in
CAL detent).
Accuracy
Measured with a dc-coupled, 5-division
X-Axis
±4%.
reference signal.
Y-Axis
Same as Vertical Deflection System.3
Bandwidth ( -3 dB)
Measured with a 5-division
X-Axis
Dc to at least 2 MHz.
reference signal.
Y-Axis
Same as Vertical Deflection System.3
Phase Difference Between X- and
Y-Axis Amplifiers
±3° from dc to 100 kHz.3
With dc-coupled inputs.
PROBE ADJUST
Output Voltage of PROBE ADJUST 0.5 V ±5%.
Jack
Repetition Rate 1 kHz ± 20%.a
Z-AXIS INPUT
Sensitivity
5 V causes noticeable modulation. Useable frequency range is
Positive-going input decreases
intensity.
dc to 10 MHz.
Maximum Safe Input Voltage
30 V (dc + peak ac) or 30 VC p-p ac at
1 kHz or less.3
Input Resistance
10 kO ±10%.3
POWER SOURCE
Line Voltage Ranges
90 V to 250 V.3
Line Frequency
48 Hz to 440 Hz.3
Maximum Power Consumption
40 W (70 VA).3
Line Fuse
1.0 A, 250 V, slow-blow.
CATHODE-RAY TUBE
Display Area
80 by 100 mm.3
Standard Phosphor
P31.3
Nominal Accelerating Voltage
14 kV.3
•Performance Requirement not checked in Service Manual.
1-5
