Tektronix 2215A

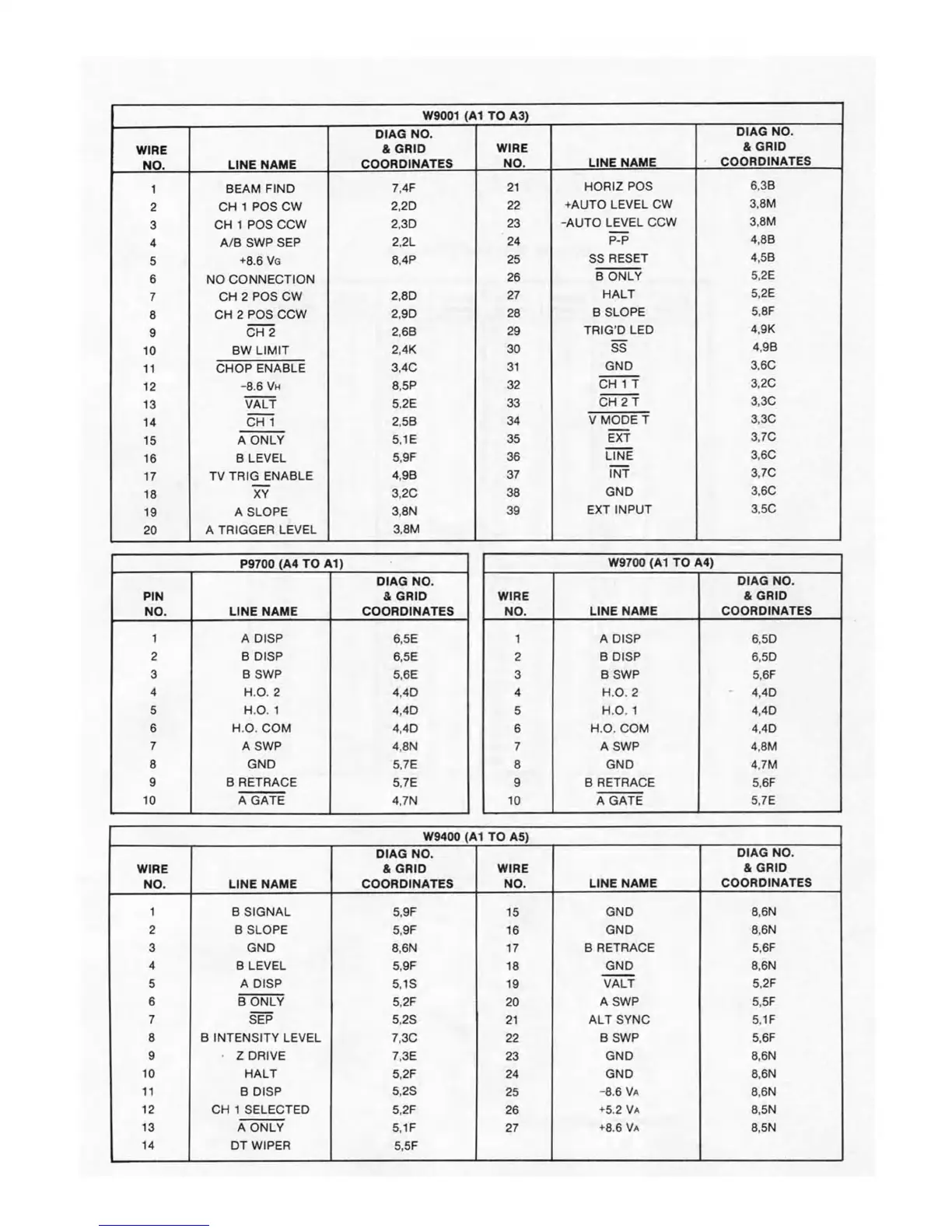

W9001 (A1 TO A3)
DIAG NO.
DIAG NO.
WIRE
& GRID
WIRE
& GRID
NO.
LINE NAME
COORDINATES
NO.
LINE NAME
COORDINATES
1
BEAM FIND
7.4F
21
HORIZ POS
6.3B
2
CH 1 POS CW
2,2D
22
+AUTO LEVEL CW
3.8M
3
CH 1 POS CCW
2,3D
23
-AUTO LEVEL CCW
3.8M
4 A/B SWP SEP
2.2L
24
P-P
4,8B
5
+8.6 Vg
8,4P
25
SS RESET
4,5B
6 NO CONNECTION
26
B ONLY
5.2E
7 CH 2 POS CW
2,8D
27
HALT
5.2E
8
CH 2 POS CCW
2,9D
28
B SLOPE
5,8F
9
CH2
2,6B
29
TRIG'D LED
4,9K
10
BW LIMIT
2,4K
30
SS
4.9B
11
CHOP ENABLE
3.4C
31
GND
3,6C
12
-8.6 Vh
8.5P
32
CH 1 T
3,2C
13
VALT
5.2E
33
CH 2 T
3,3C
14 CH 1
2.5B
34
V MODE T
3,3C
15
A ONLY
5.1E
35
EXT
3.7C
16
B LEVEL
5.9F 36
LINE
3,6C
17 TV TRIG ENABLE
4.9B
37
INT
3.7C
18
XY
3,2C
38
GND
3,6C
19
A SLOPE
3,8N
39
EXT INPUT
3.5C
20
A TRIGGER LEVEL
3.8M
P9700 (A4 TO A1)
PIN
NO.
LINE NAME
DIAG NO.
3. GRID
COORDINATES
1
A DISP 6,5E
2
B DISP
6,5E
3 B SWP
5,6E
4
H.O. 2 4,4D
5 HO. 1 4,4D
6
H.O. COM 4,4D
7 A SWP
4.8N
8 GND 5,7E
9 B RETRACE
5,7E
10 A GATE
4,7N
W9700 (A1 TO A4)
WIRE
NO.
LINE NAME
DIAG NO.
& GRID
COORDINATES
1
A DISP 6.5D
2 B DISP 6,5D
3 B SWP
5,6F
4
H.O. 2
4,4D
5 H.O. 1 4,4D
6 H.O. COM 4,4D
7 A SWP 4.8M
8 GND 4.7M
9 B RETRACE 5,6F
10 A GATE
5,7E
W9400 (A1 TO A5)
WIRE
NO.
LINE NAME
DIAG NO.
& GRID
COORDINATES
WIRE
NO.
LINE NAME
DIAG NO.
& GRID
COORDINATES
1
B SIGNAL 5.9F
15
GND
8,6N
2 B SLOPE 5,9F
16
GND
8.6N
3 GND 8,6N
17
B RETRACE
5.6F
4
B LEVEL 5.9F
18
GND
8.6N
5
A DISP 5,IS
19
VALT
5.2F
6 B ONLY 5.2F
20
A SWP 5,5F
7
SEP 5.2S
21
ALT SYNC
5, IF
8 BINTENSITY LEVEL
7,3C 22
B SWP
5.6F
9 Z DRIVE 7.3E
23
GND
8.6N
10 HALT 5,2F 24 GND
8.6N
11
B DISP
5.2S
25
-8.6 Va
8.6N
12 CH 1 SELECTED 5.2F
26
+5.2 Va 8,5N
13 A ONLY 5,IF
27
+8.6 Va 8.5N
14
DT WIPER 5,5F
