Tektronix 2215A

2215A Service

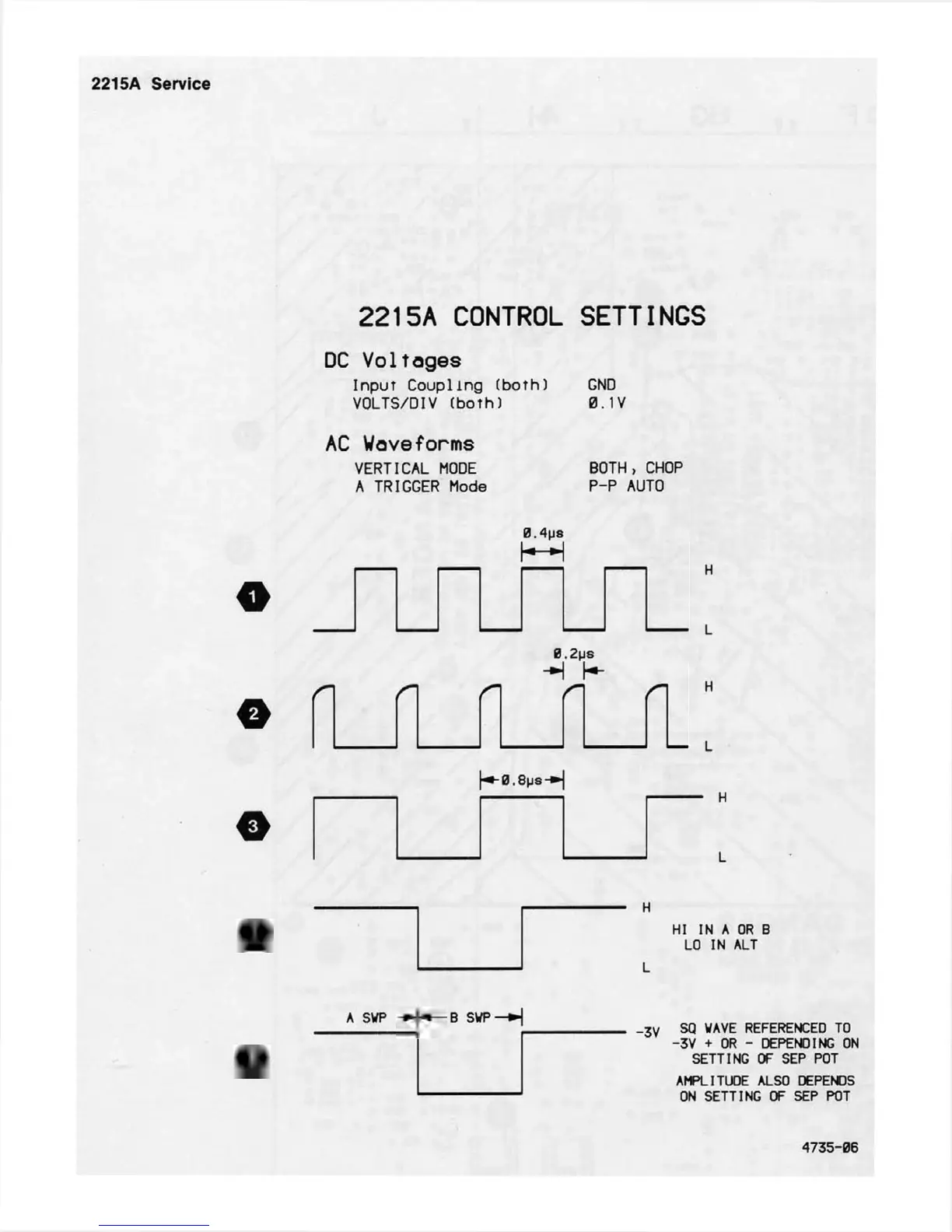

2 2 1 5 A C O N T R O L S E T T IN G S
DC Voltages
Input Coupling (both) GND
VOLTS/DIV (both) 0.1V
AC Waveforms
VERTICAL MODE
A TRIGGER Mode
BOTH, CHOP
P-P AUTO
O
o
0.4ps
0 .2ps
♦ 0 .8 p s -»
o
H
HI IN A OR B
LO IN ALT
L
A SVP
B SVP—►]
_ 3 V SQ WAVE REFERENCED TO
-3V + OR - DEPENDING ON
SETTING OF SEP POT
AMPLITUDE ALSO DEPENDS
ON SETTING OF SEP POT
4735-06
