Page #186 background image
C713
B
R730 R740 HIGH
B SWEEP A SWEEP SPEED
GAIN GAIN TIMING
R749
MAG
REGIS
R754
X10
GAIN
C703
A
HIGH
SPEED
TIMING

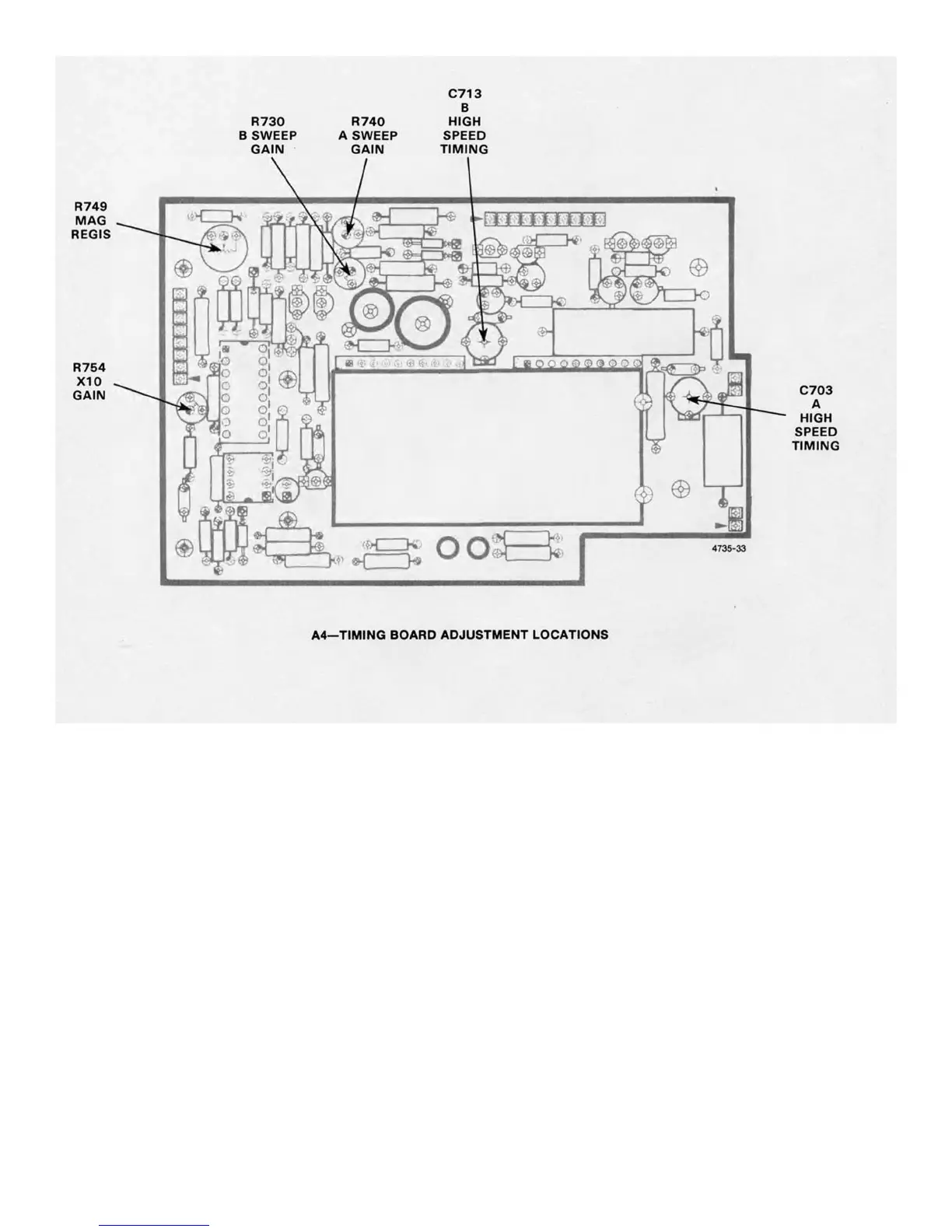

A4—TIMING BOARD ADJUSTMENT LOCATIONS
