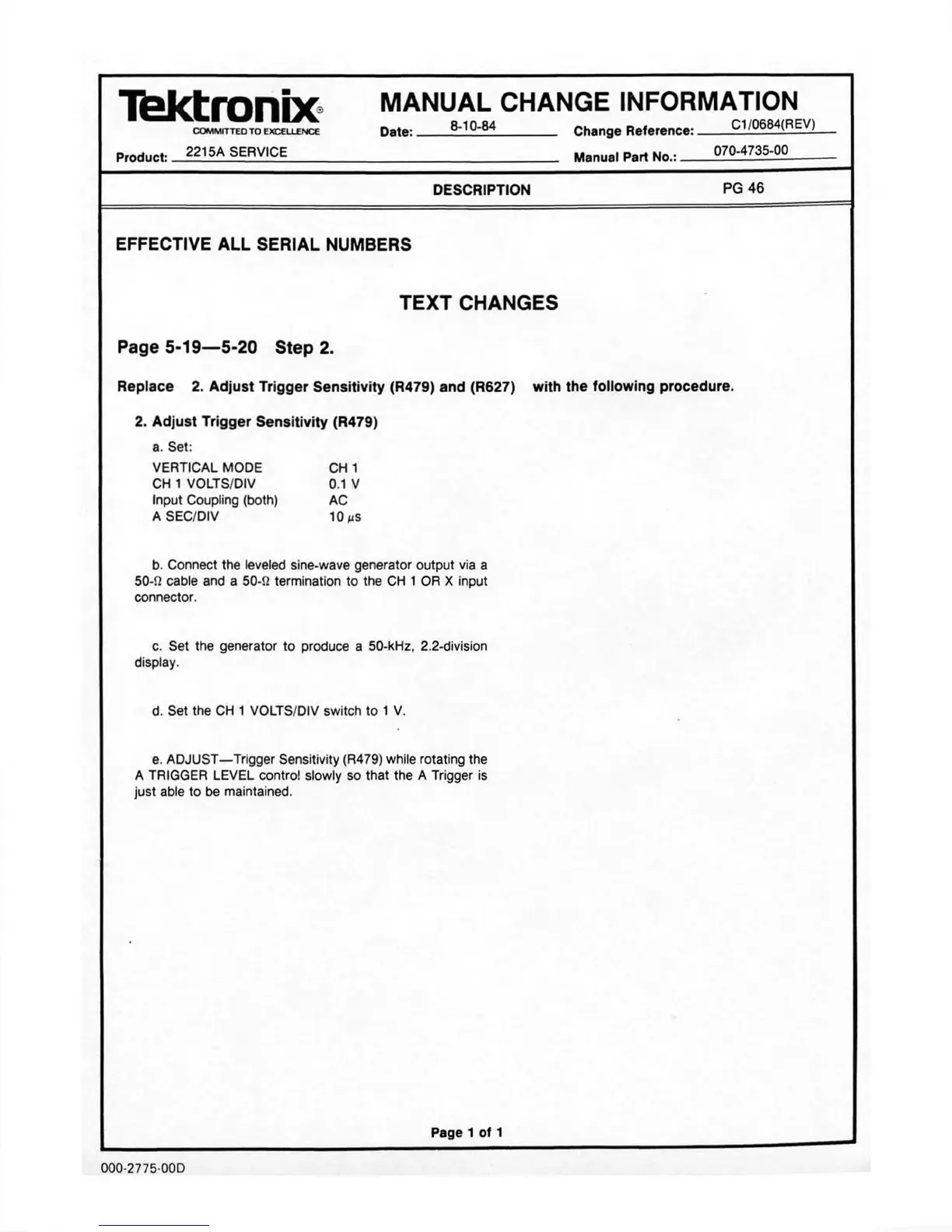

Tektronix
CO M MITTED TO EXCELLENCE
Product: ggl5A SERVICE
MANUAL CHANGE INFORMATION
Date:
8-10-84
Change Reference:
Manual Part No.:
__
C1/0684(REV)
070-4735-00
DESCRIPTION
PG 46
EFFECTIVE ALL SERIAL NUMBERS
TEXT CHANGES
Page 5-19— 5-20 Step 2.
Replace 2. Adjust Trigger Sensitivity (R479) and (R627) with the following procedure.
2. Adjust Trigger Sensitivity (R479)
a. Set:
VERTICAL MODE CH 1
CH 1 VOLTS/DIV 0.1 V
Input Coupling (both) AC
ASEC/DIV 10 Ms
b. Connect the leveled sine-wave generator output via a
50-0 cable and a 50-0 termination to the CH 1 OR X input
connector.
c. Set the generator to produce a 50-kHz, 2.2-division
display.
d. Set the CH 1 VOLTS/DIV switch to 1 V.
e. ADJUST—Trigger Sensitivity (R479) while rotating the
A TRIGGER LEVEL control slowly so that the A Trigger is
just able to be maintained.
Page 1 of 1
000-2775-00D
