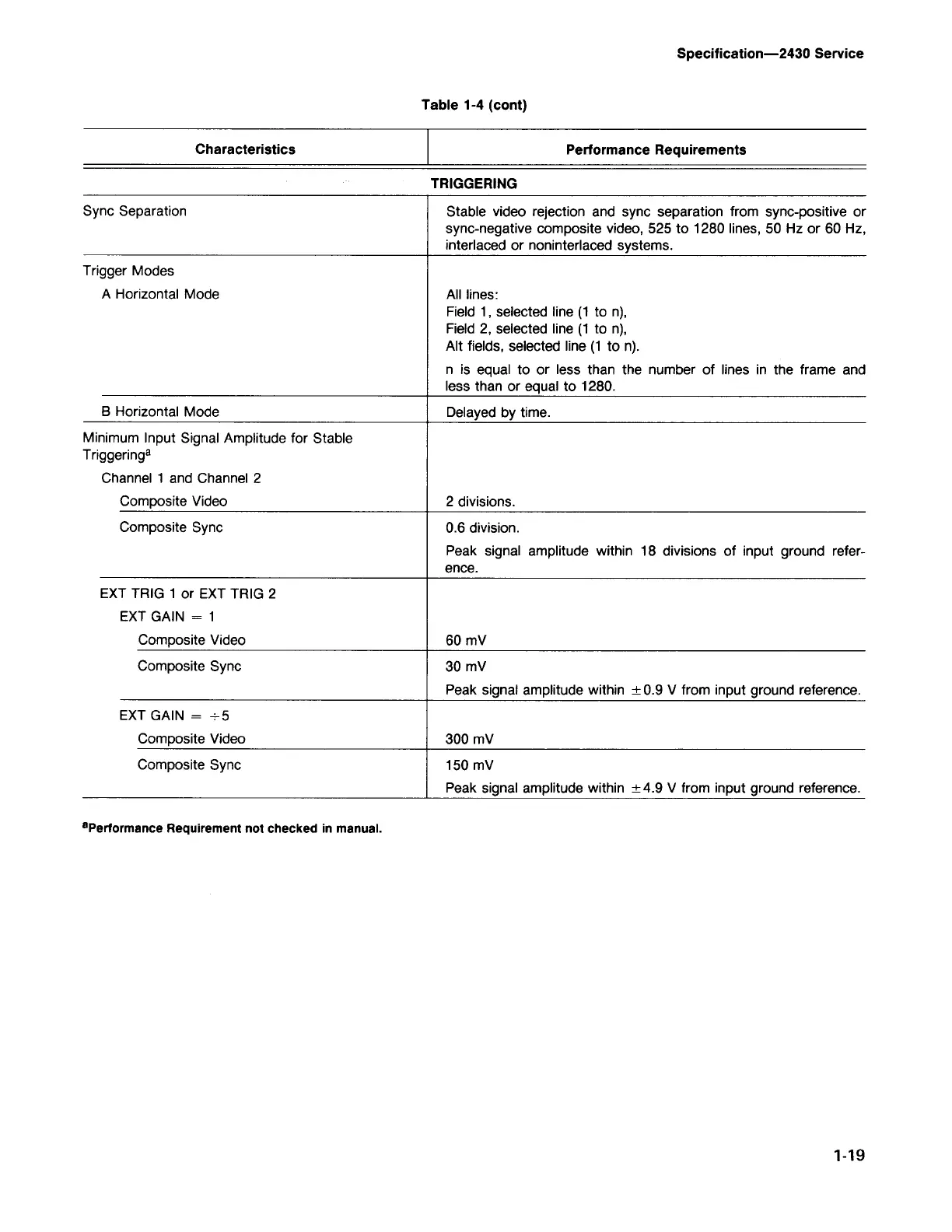

Page #29 background image
1-19
aperformance Requirement not checked in manual.
Sync Separation
Stable video rejection and sync separation from sync-positive or
sync-negative composite video, 525 to 1280 lines, 50 Hz or 60 Hz,
interlaced or noninterlaced systems.
Trigger Modes
A Horizontal Mode
All lines:
Field 1, selected line (1 to n),
Field 2, selected line (1 to n),
Alt fields, selected line (1 to n).
n is equal to or less than the number of lines in the frame and
less than or equal to 1280.
8 Horizontal Mode
Delayed by time.
Minimum Input Signal Amplitude for Stable
Triggering
a
Channel 1 and Channel 2
Composite Video
2 divisions.
Composite Sync
0.6 division.
Peak signal
amplitude within 18 divisions of input ground refer-
ence.
EXT TRIG 1 or EXT TRIG 2
EXT GAIN
=
1
Composite Video
60mV
Composite Sync
30 mV
Peak signal amplitude within
±
0.9 V from input ground reference.
EXT GAIN
=
+5
Composite Video
300mV
Composite Sync
150 mV
Peak signal amplitude within
±
4.9 V from input ground reference.
TRIGGERING
Performance Requirements
Characteristics
Table 1-4 (cant)
Specification-2430 Service
