Tektronix 2430 Service Manual

To avoid personal injury, the instrument covers or panels
should only be removed by qualified service personnel. Do
not operate the instrument without covers and panels
properly installed.
Do Not Remove Covers or Panels
Do Not Operate in Explosive Atmospheres
To avoid explosion, do not operate this instrument in an
atmosphere of explosive gasses.
Use the Proper Fuse
To avoid fire hazard, use only the fuse specified in the
instrument parts list. A replacement fuse must meet the
type, voltage rating, and current rating specifications for
the fuse that it replaces.
Use the Proper Power Cord
Use only the power cord and connector specified for the
instrument.
Danger AriSing from Loss of Ground
Upon loss of the protective-ground connection, all accessi-
ble conductive parts (including knobs and controls that
may appear to be insulated) can render an electric shock.
Grounding the Product
This product is grounded through the grounding conductor
of the power cord. To avoid electrical shock, plug the
power cord into a properly wired receptacle before making
any connections to the product input or output terminals.
A protective ground connection by way of the grounding
conductor in the power cord is essential for safe operation.
vi
Power Source
This product is intended to operate from a power source
that will not apply more than 250 volts rms between the
supply conductors or between either supply conductor and
ground. A protective ground connection by way of the
grounding conductor in the power cord is essential for safe
operation.
ATIENTION - Refer to manual.
@ Protective gound (earth) terminal.
DANGER - High voltage.
Symbols as Marked on Equipment
Symbols in This Manual
This symbol indicates where applicable cau-
tionary or other information is to be found. For
maximum input voltage see Table 1-1.
DANGER indicates a personal injury hazard immediately
accessible as one reads the marking.
Terms as Marked on Equipment
CAUTION indicates a personal injury hazard not immedi-
ately accessible as one reads the markings, or a hazard to
property, including the equipment itself.
WARNING statements identify conditions or practices that
could result in personal injury or loss of life.
Terms in This Manual
CAUTION statements identify conditions or practices that
could result in damage to the equipment or other property.
The general safety information in this part of the summary is for both operating and servicing personnel.
Specific warnings and cautions will be found throughout the manual where they apply and do not appear in this
summary.

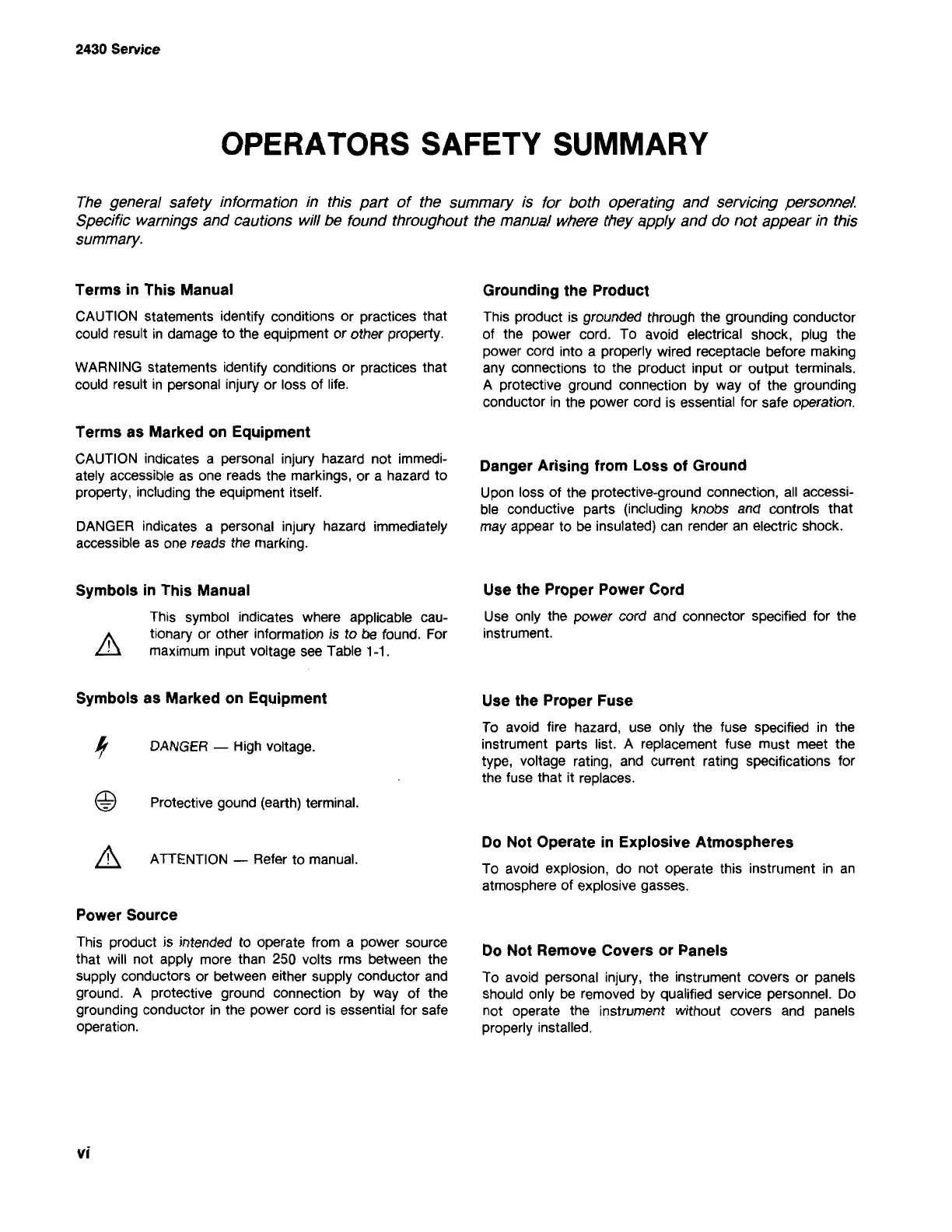

OPERATORS SAFETY SUMMARY
2430 Service

Tektronix 2430 Specifications

General

Brand	Tektronix
Model	2430
Category	Test Equipment
Language	English
