Tektronix Keithley 2260B Series User Manual

GETTING STARTED
19

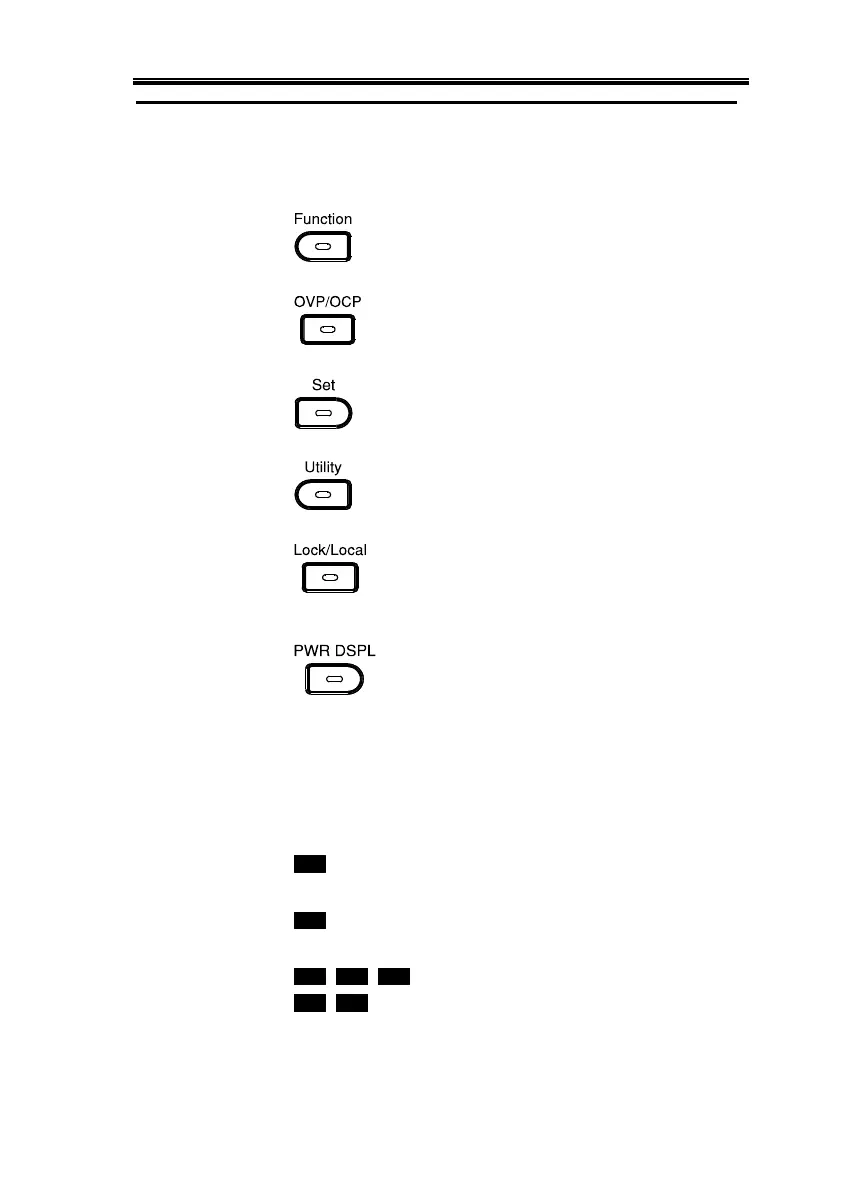

Function Keys
The Function keys along with the Output key will
light up when a key is active.
The Function key is used to
configure the power supply.
Set the overcurrent or overvoltage
protection levels.
Sets the current and voltage limits.
Used to run customized Test
sequence for testing.
Locks or unlocks the panel keys to
prevent accidentally changing
panel settings.
Toggles the display from viewing
V/A  V/W or A/W*.
*Press the Voltage knob for V/W,
press the Current knob for A/W.
Display
Indicators
VSR
Voltage Slew Rate
C V
Constant Voltage Mode
RMT
Remote Control Mode
ALM
Alarm on
DLY
Delay Output
C C
Constant Current Mode
ISR
Current Slew Rate
20
40
60
80
100
% W
Power bar
Indicates the current power output
as a percentage.
