Theory of Operation
The theory of operation chapter describes the basic principles of
operation, protection modes and important considerations that
must be taken into account before use.
Operating Area Description
Background
The 2260B power supplies are regulated DC
power supplies with a high voltage and current
output. These operate in CC (Constant current)
or CV (Constant voltage) mode within a wide
operating range limited only by the output
power.

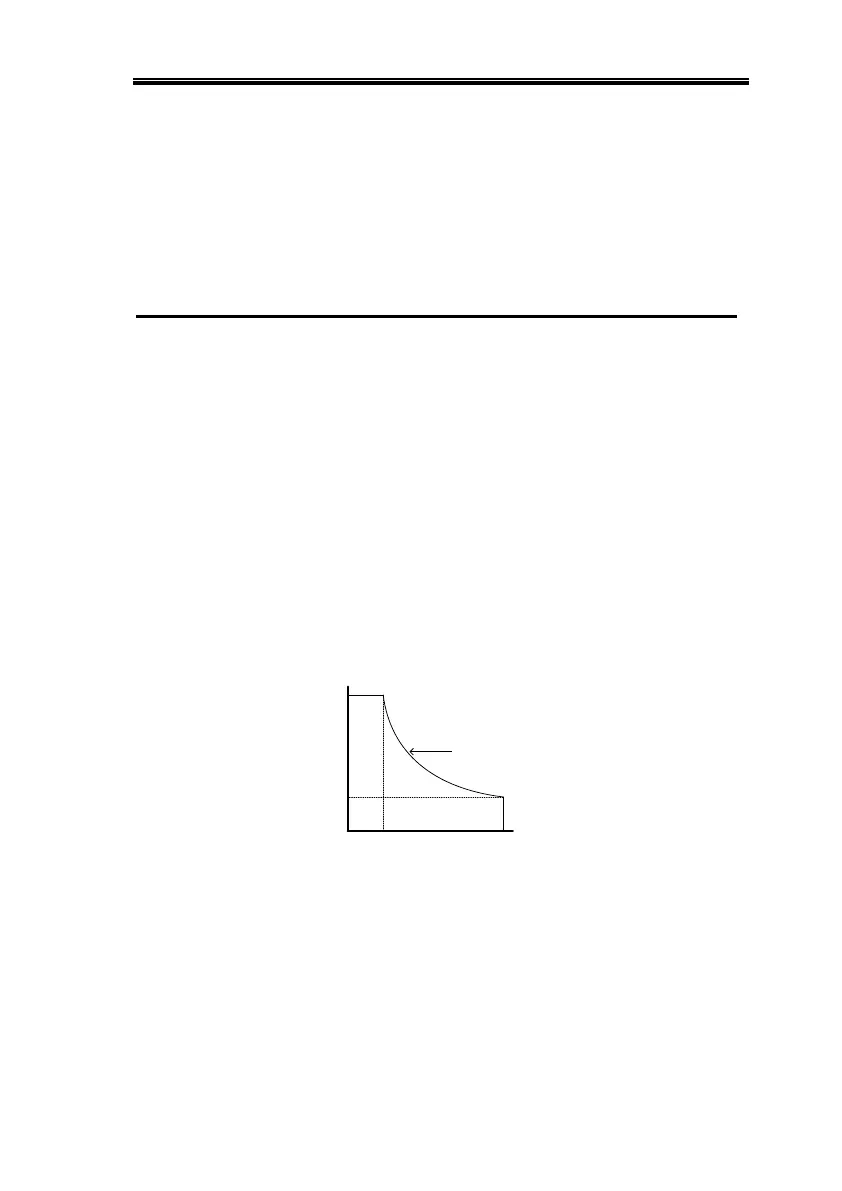

The operating area of each power supply is
determined by the rated output power as well
as the voltage and current rating. For example
the operating area and rated power output for
the 2260B- 30-36 is shown below.
Voltage
Current
30
360W rated power
10
12 36
Operating Area
When the power supply is configured so that
the total output (current x voltage output) is
less than the rated power output, the power
supply functions as a typical constant current,
constant voltage power supply.
If however, the power supply is configured
such that the total output (current x voltage
