Using the Rack Mount Kit
Background
The 2260B series has an optional Rack Mount
Kit (Part number: [JIS] 2260B-RMK-JIS , [EIA]
2260B-RMK-EIA) that can be used to hold 6x
2260B 360W models, 3x 720W models, 2x
1080W models or a combination of all models
(1x 360W, 1x 720W and 1x 1080W).

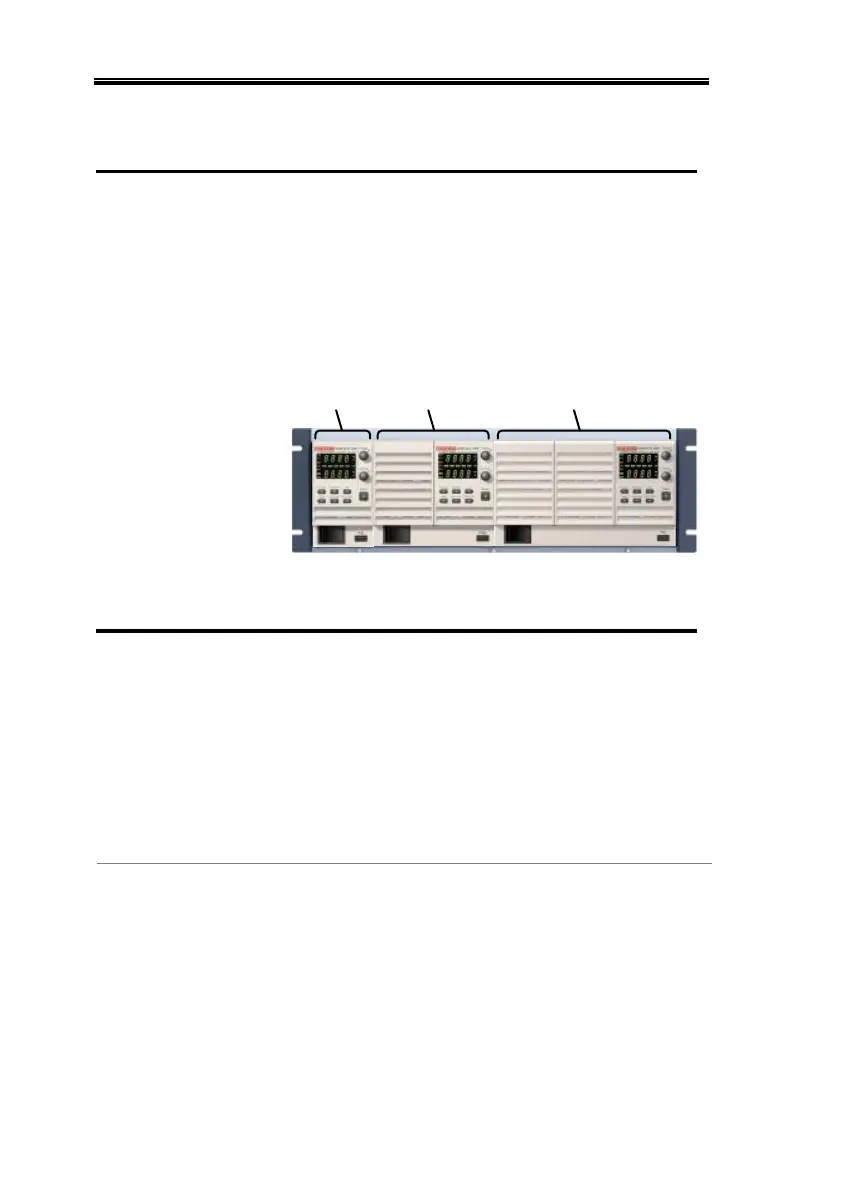

Rack mount
diagram
360W 720W 1080W
How to Use the Instrument
Background
The 2260B power supplies use a novel method
of configuring parameter values only using the
Voltage or Current knobs. The knobs are used
to quickly edit parameter values at 0.01, 0.1 or 1
unit steps at a time.
When the user manual says to set a value or
parameter, use the steps below.
Example
Use the Voltage knob to set a voltage of 10.05
volts.
