GETTING STARTED
29

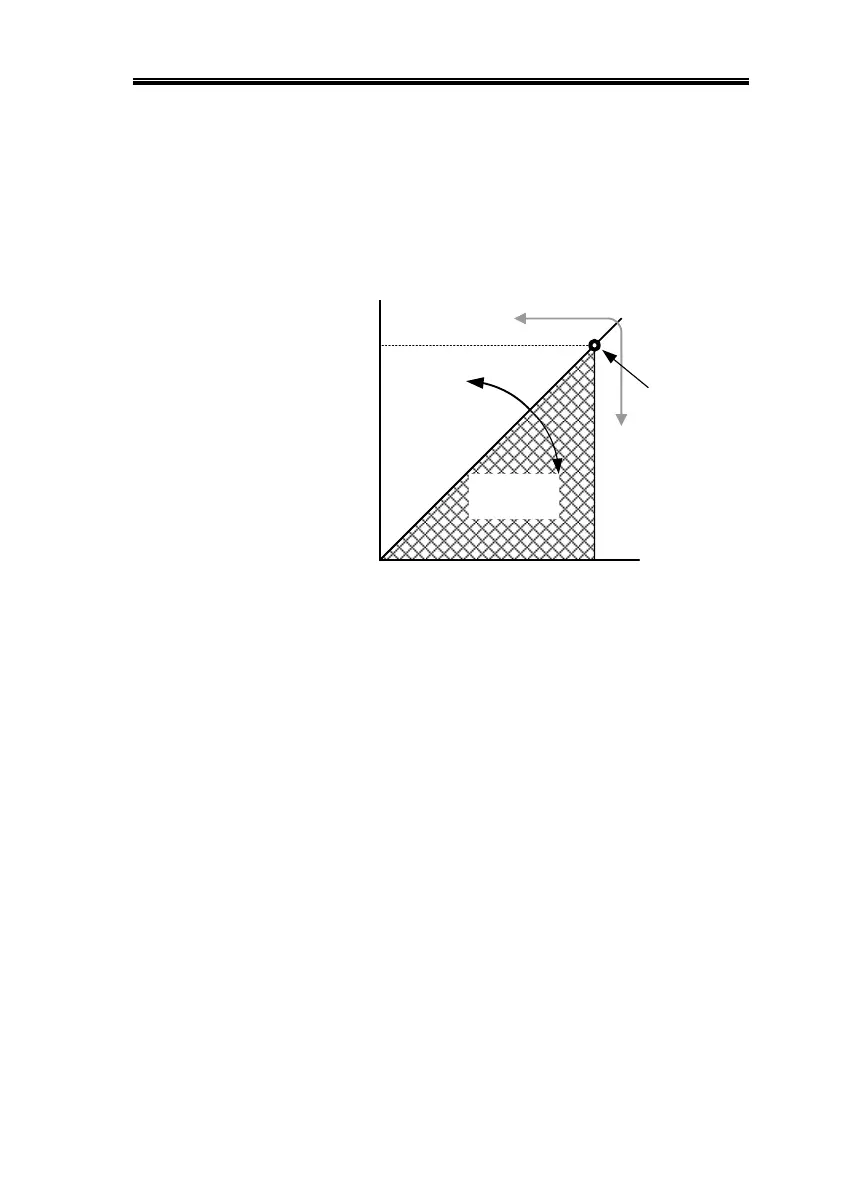

Conversely the power supply will operate in
CC mode when the load resistance is less than
the critical resistance. In CC mode the current
output is equal to I
SET
and the voltage output is
less than V
SET
.
R
L=
R
C
R
L
<R
C
VSET
ISET
CV
CC
V
I
R
L
>R
C
Crossover
point
