OPERATION
51
WARNING
Please note the wire gauge used and the capacity
of the plug/socket. It may be necessary to wire the
load to a number of terminals to offset the
capacity over a number of terminals.

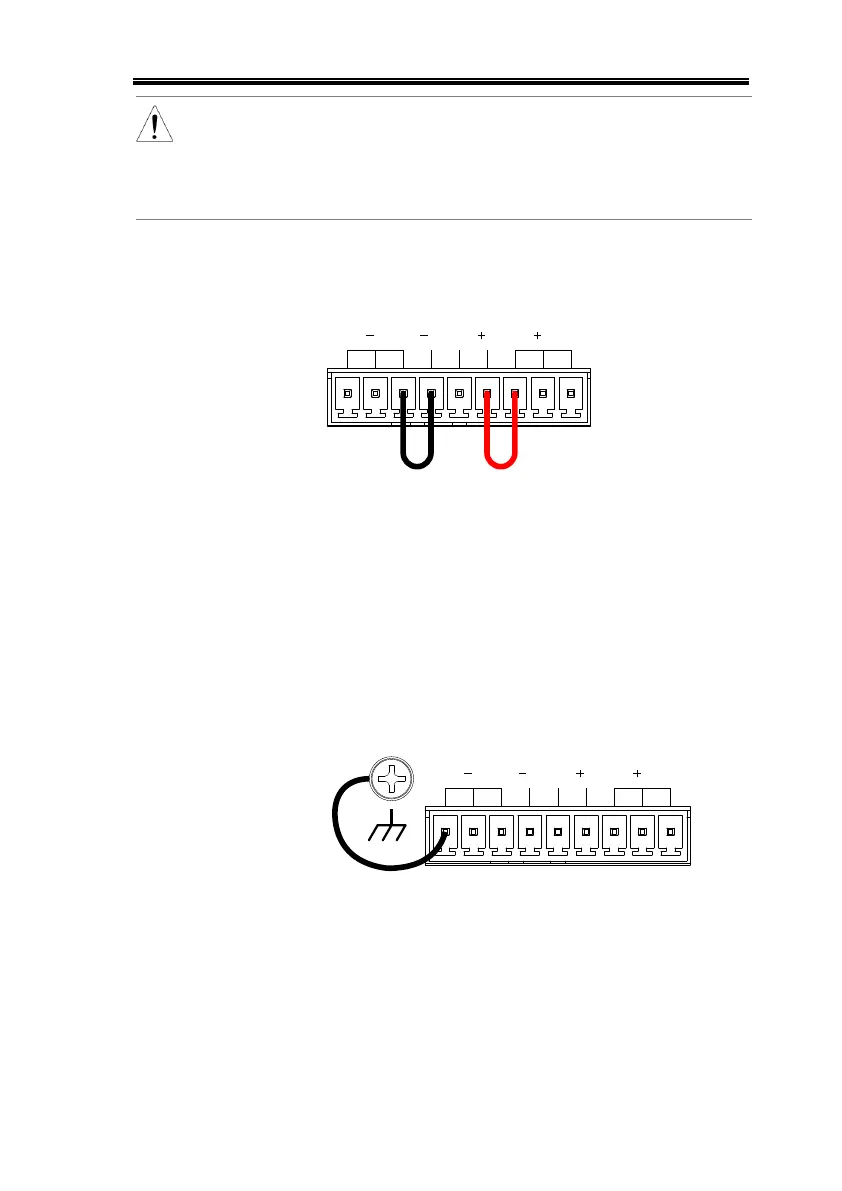

6. If using local sense, connect the -S pin to a -V
pin, and connect the +S pin to a +V pin.
V SN.C. S V
7. If not using local sense, see the
remote sense section to wire the
sense terminals for remote
sensing.
Page 71
8. If necessary, connect the chassis
ground terminal to either the -V or
+V pin. See the grounding chapter
for details.
Page 36
V SN.C. S V
9. Reattach the output terminal
cover.
Page 53
