Wire Shielding
and Load line
impedance
To help to minimize the oscillation due to the
inductance and capacitance of the load cables,
use an electrolytic capacitor in parallel with the
load terminals.
To minimize the effect of load line impedance
use twisted wire pairing.

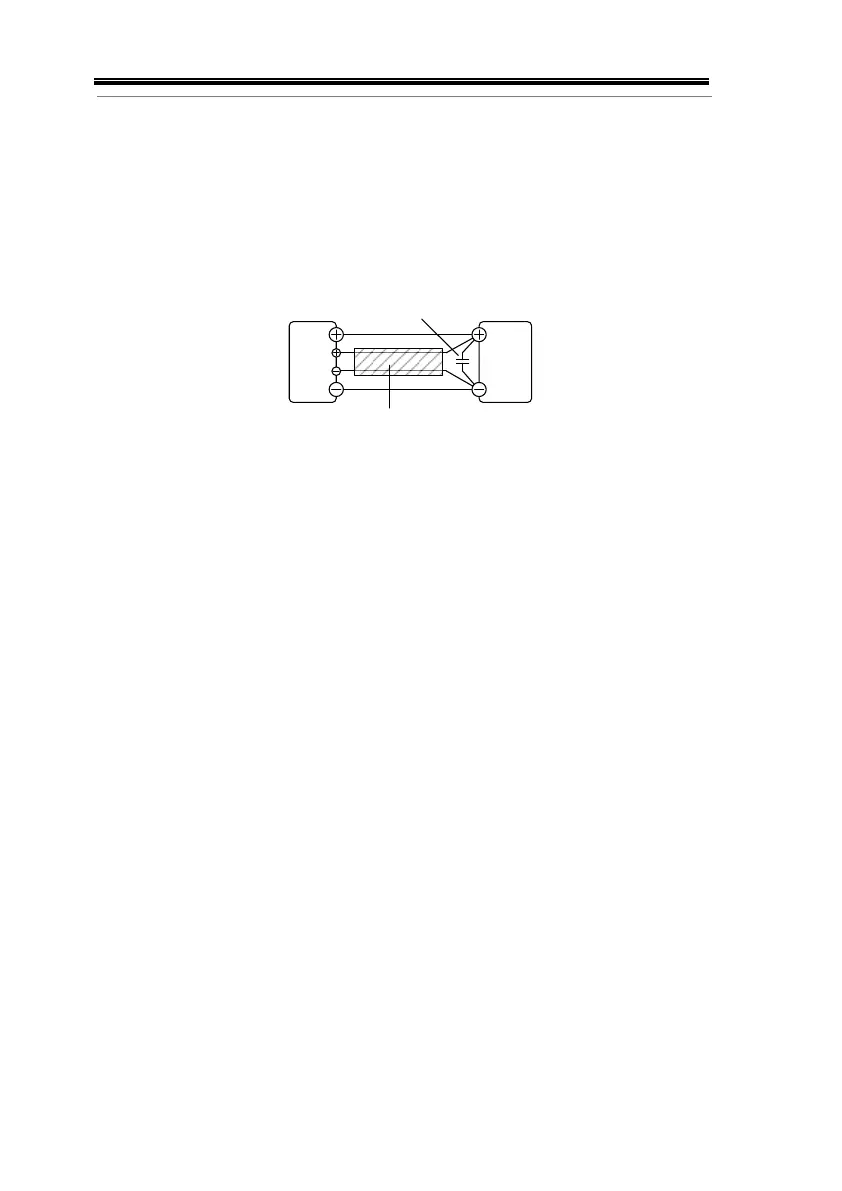

2260B
Load
s
s
Twisted pair
Capacitor
