OPERATION
89
Master-Slave
Operation
Only operate the power supplies in series if the
units are configured correctly.

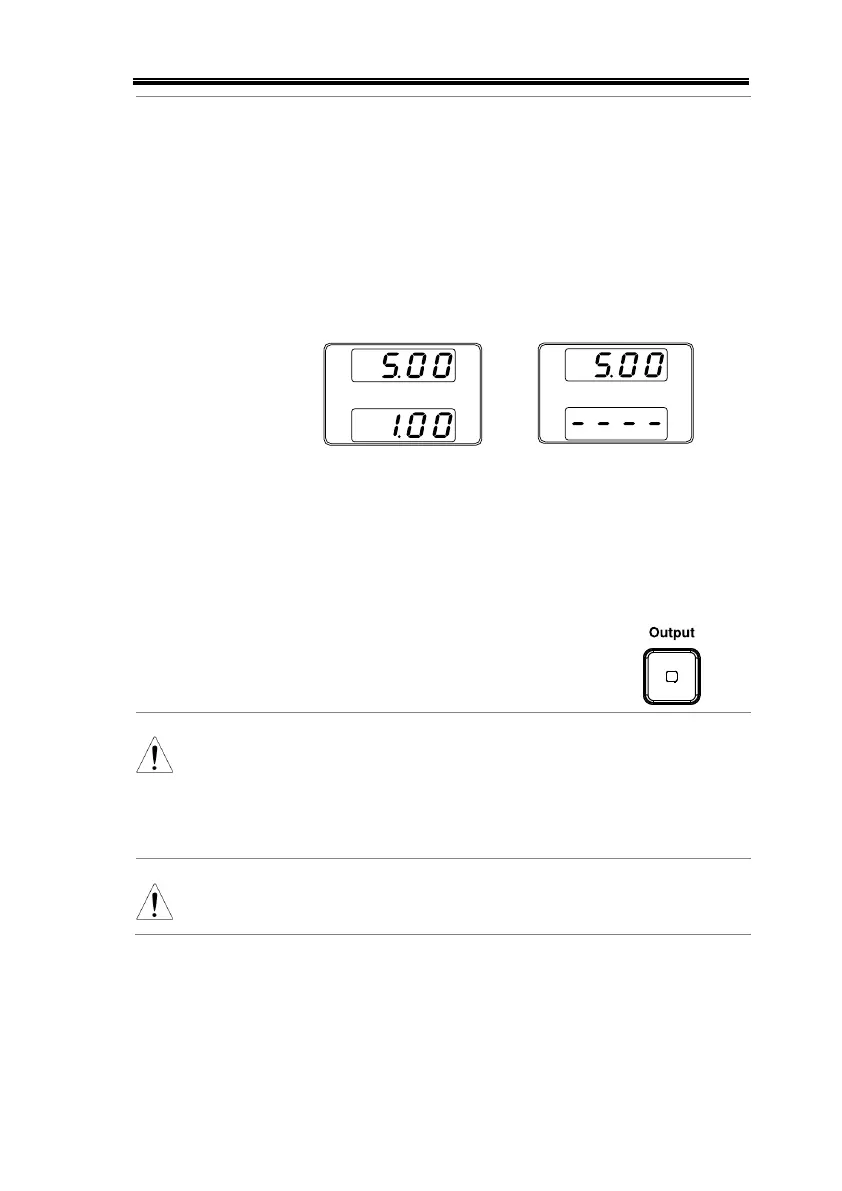

1. Turn on the master and slave unit. The slave
unit will only show the voltage of its own unit.
The master unit will show the combined
voltage of both units and the current.
Master unit
Slave unit
V
A
V
2. Operation of all units is controlled
via the master unit. Operation of
the master unit is the same as for a
single unit. Please see the basic
operation chapter for details.
Page 60
3. Press the Output key to begin.
CAUTION
Only operate the power supplies in series if using
units of the same model number. 250V and 800V
models do not support series operation!
Only a maximum of 2 units can be used in series.
Note
The panel controls are disabled on slave units,
including the output key.
