SPG600 & SPG300 Sync Pulse G enerators Quick Reference Manual
ANALOG SYNC (STD)
HBlack Burst ↵
Black Burst
Black with C F (for N TSC or N TSC No Setup)
Black without CF (for PAL)
Press the VIDEO button
ANALOG SYNC (OPT)
HBlack Burst ↵
Black Burst
Black with C F (for N TSC or N TSC No Setup)
Black without CF (for PAL)
TEST SIGNAL (ANALOG)
Standard
Standard
Option
1
SPG600 Option 02 only
To Test signal (analog) submenu
(page 7)
ENTER
CANCEL
TEST SIGNAL (SDI)
Standard
Standard
Option
2
To Test signal (SDI) submenu
(page 8)
ENTER
CANCEL
TIMING (ANALOG)
CH-1
CH-1 CH-5
1
CH-2 CH-6
1
CH-3 CH-7
1
CH-4 CH-8
1
To Timing (analog) submenu
(page 9)
ENTER
CANCEL
TIMING (SDI)
SDI-1
SDI-1 SDI-3
2
SDI-2 SDI-4
2
To Timing (SD I) submenu
(page 9)
ENTER
CANCEL
OVERLAY
Analog (STD)
Analog (STD) Analog (OPT)
1
SDI (STD) SDI (OPT)
2
To Overlay submenu
(page 10)
ENTER
CANCEL
PARAMETER
SDI (STD)
SDI (STD)
SDI (OPT)
2
To SDI Parameters submenu
(page 13)
ENTER
CANCEL
1 SPG600 Option 02 only
2 SPG600 Option 03 only

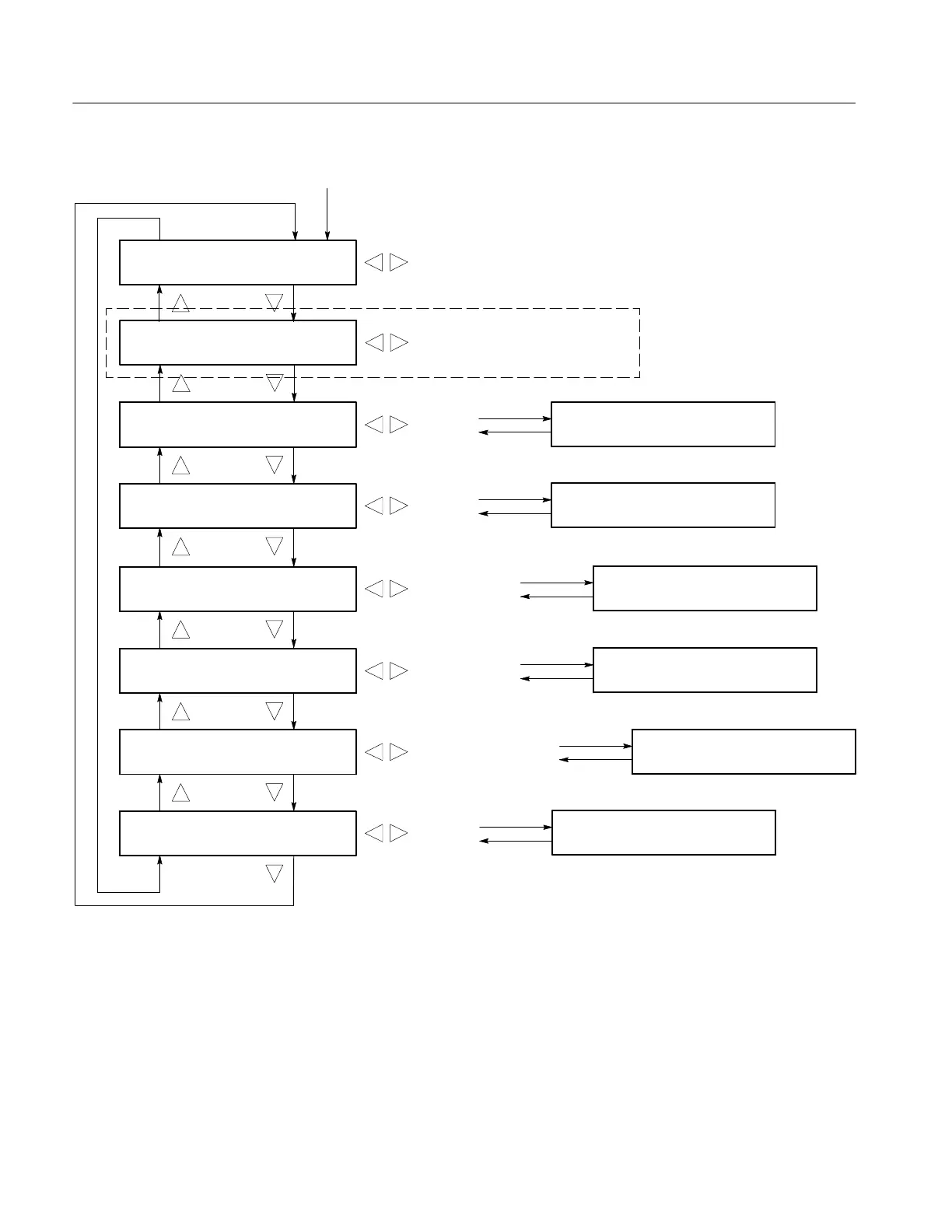

Figure 5: Video m enu diagram
