Menus
SPG600 & SPG300 Sync Pulse G enerators Quick Reference Manual
19
This menu allows you to adjust the timing offset of the input signal relative to
the internal reference signal (frame reset signal). Use the up (
Y)ordown(B)

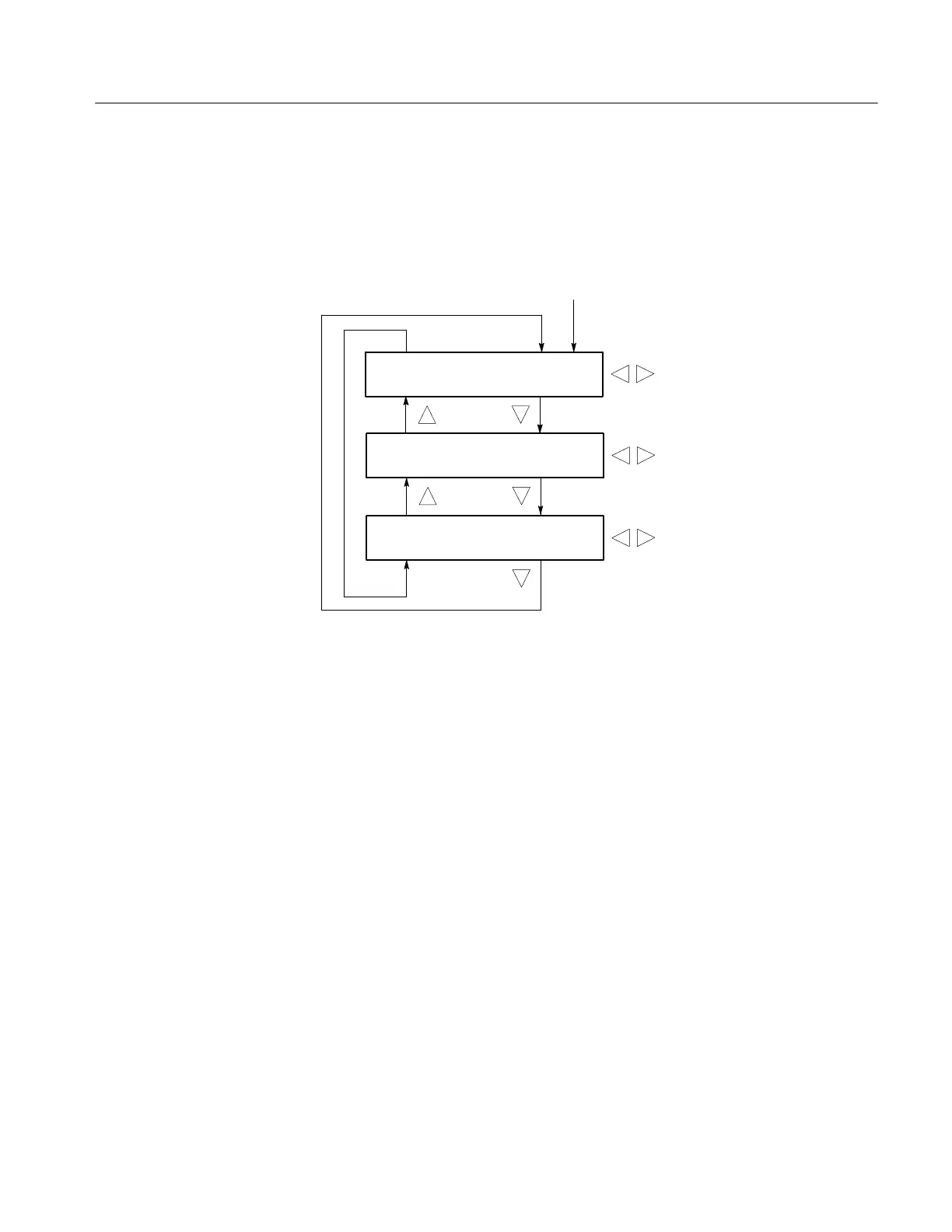

arrow button to scroll through the menu. Figure 19 shows the Genlock timing
submenu diagram.
TIMING : VERTICAL
0Line(s)
Settheverticaltimingin1linesteps
Select GEN
L
OCK
T
IMING in the Genlock menu
TIMING : HORIZONTAL
0.0000 μs
Set the horizontal timing in 1 clock steps
TIMING : FINE
0.0 nsec
Set the horizontal timing in 0.1 ns steps
Figure 19: Genlock timing subm enu diagram
Genlock Timing Submenu
