SPG600 & SPG300 Sync Pulse G enerators Quick Reference Manual
1
Front-Panel Buttons and Indicators
This section describes the sync pulse generator front-panel buttons and
indicators.
PANEL ENABLE
button
Menu control
buttons
LCD display
Menu buttons
Reference indicator

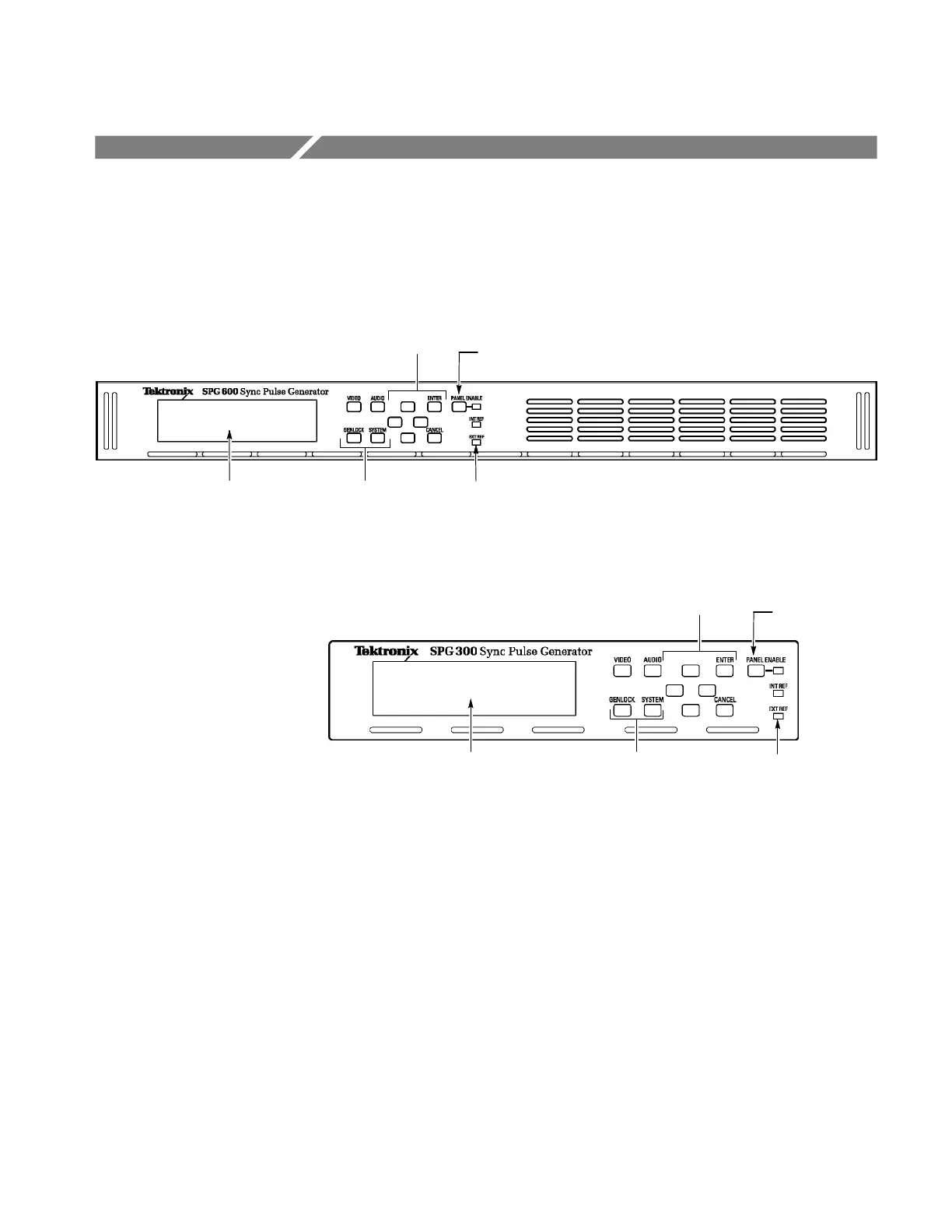

Figure 1: SPG600 front panel
PANEL ENABLE
button
Menu control
buttons
LCD display
Menu buttons
Reference indicator
Figure 2: SPG300 front panel
Use the two-line, 20-character per line LCD display to show instrument settings.
You can adjust the contrast of the LCD display using the System menu.
Use this button to access the Video menu. The Video menu lets you select output
signal and set video parameters.
Use this button to access the Audio menu. The Audio menu lets you set audio
parameters such as amplitude and frequency.
Use this button to access the Genlock menu. The Genlock menu lets you set
genlock parameters such as genlock source and genlock timing.
LCD Display
VIDEO Button
AUDIO Button
GENLOCK Button
