SPG600 & SPG300 Sync Pulse G enerators Quick Reference Manual
This menu allows you to select an item (logo or ID text) that is overlaid on the
output test signal. Use the up (
Y)ordown(B) arrow button to scroll through the
menu. Figure 10 shows the Overlay submenu diagram.
NOTE. The Overlay submenu contents are common for both analog and serial
digital signals except for the menu title on the first line (ANALOG or SDI).
: ANALOG (STD)
Logo
Select OVERLAY in the Video menu
: ANALOG (STD)
HBlink OF F ↵
OFF
Fast
Low
Logo
ID Text
To Logo s ubmenu (page 11)
To ID text submenu (page 12)
ENTER
CANCEL

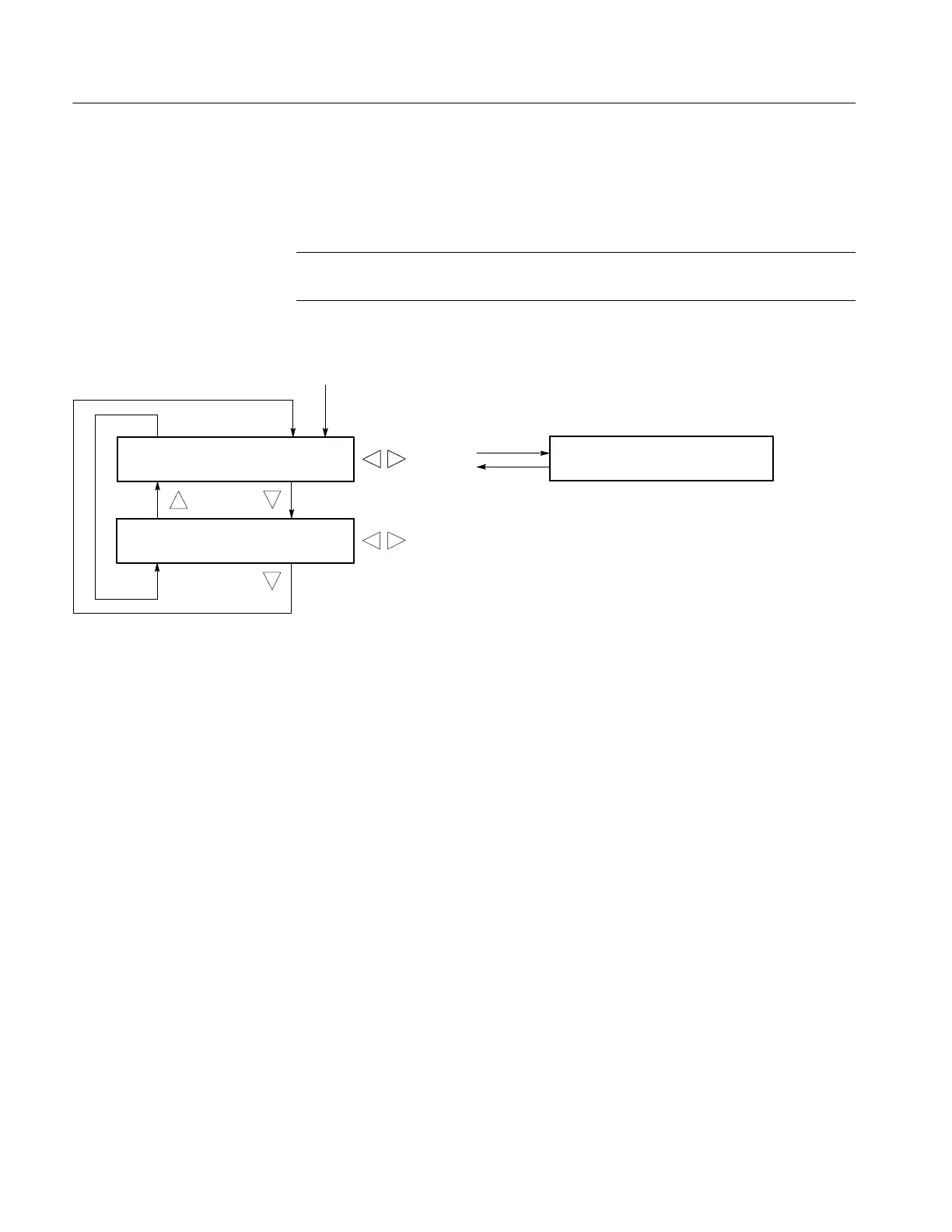

Figure 10: Overlay submenu diagram
Overlay Submenu
