Menus
8
SPG600 & SPG300 Sync Pulse G enerators Quick Reference Manual
This menu allows you to select a serial digital test signal for the SDI output(s).
Use the up (
Y)ordown(B) arrow button to scroll through the menu. Figure 7
shows the Test signal (SDI) submenu diagram. Use the left (
A)orright(")
arrow button to select a signal.
COLOR BAR
SMPTE Color Bars
Select a signal
Select TEST SIGNAL (SDI) in the Video menu
FLAT FIELD
0% Flat Field
Select a signal
LINEARITY
10 Step
Select a signal
MONITOR
2 Pedestal & Pluge
Select a signal
MULTI BURST
60% Y Multiburst
Select a signal
SWEEP
100% Sweep
Select a signal
SDI
Checkfield
Select a signal
TIMING
2.5 MHz Bowtie
Select a signal
PULSE BAR
2T Pulse & Bar
Select a signal
OTHER
Chroma Freq. Resp.
Select a signal
REC 801
100% Color Bars
Select a signal

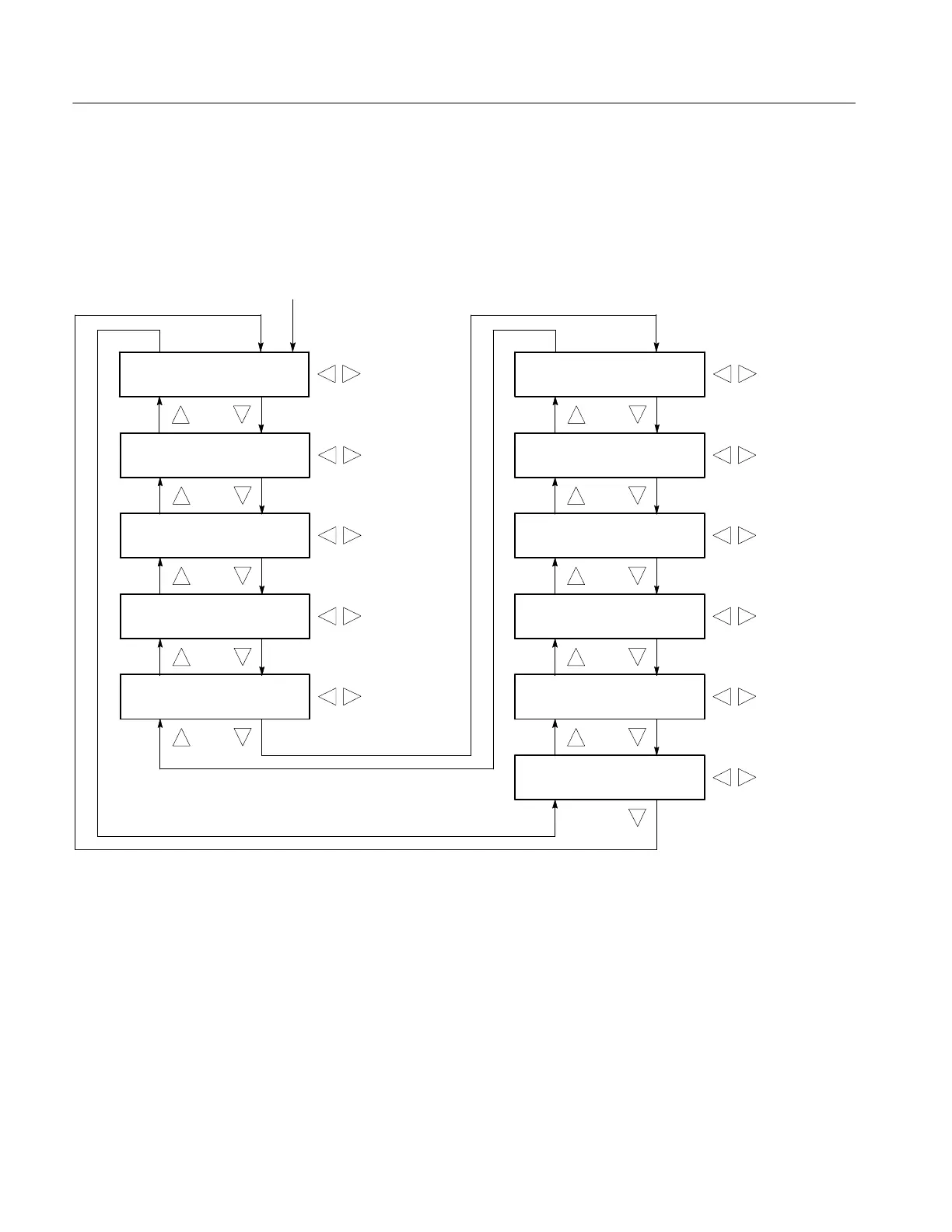

Figure 7: Test signal (SDI) submenu diagram
Test Signal (SDI) Submenu
