SPG600 & SPG300 Sync Pulse G enerators Quick Reference Manual
25
This menu allows you to display the system information. Use the up (
Y)or
down (
B) arrow button to scroll through the menu. Figure 25 shows the System
information submenu diagram.
: OPTION KEY
ABCDEFGHIJKLMNOPQRST
:S/N
J310000
: F/W VERSI ON
1.0.3
: FPGA VERSION (OPT)
A:1.3 D: 1.5
: FPGA VERSION (STD)
A:1.3 D: 1.6
Select Information in the SYSTEM PARAMETER menu item

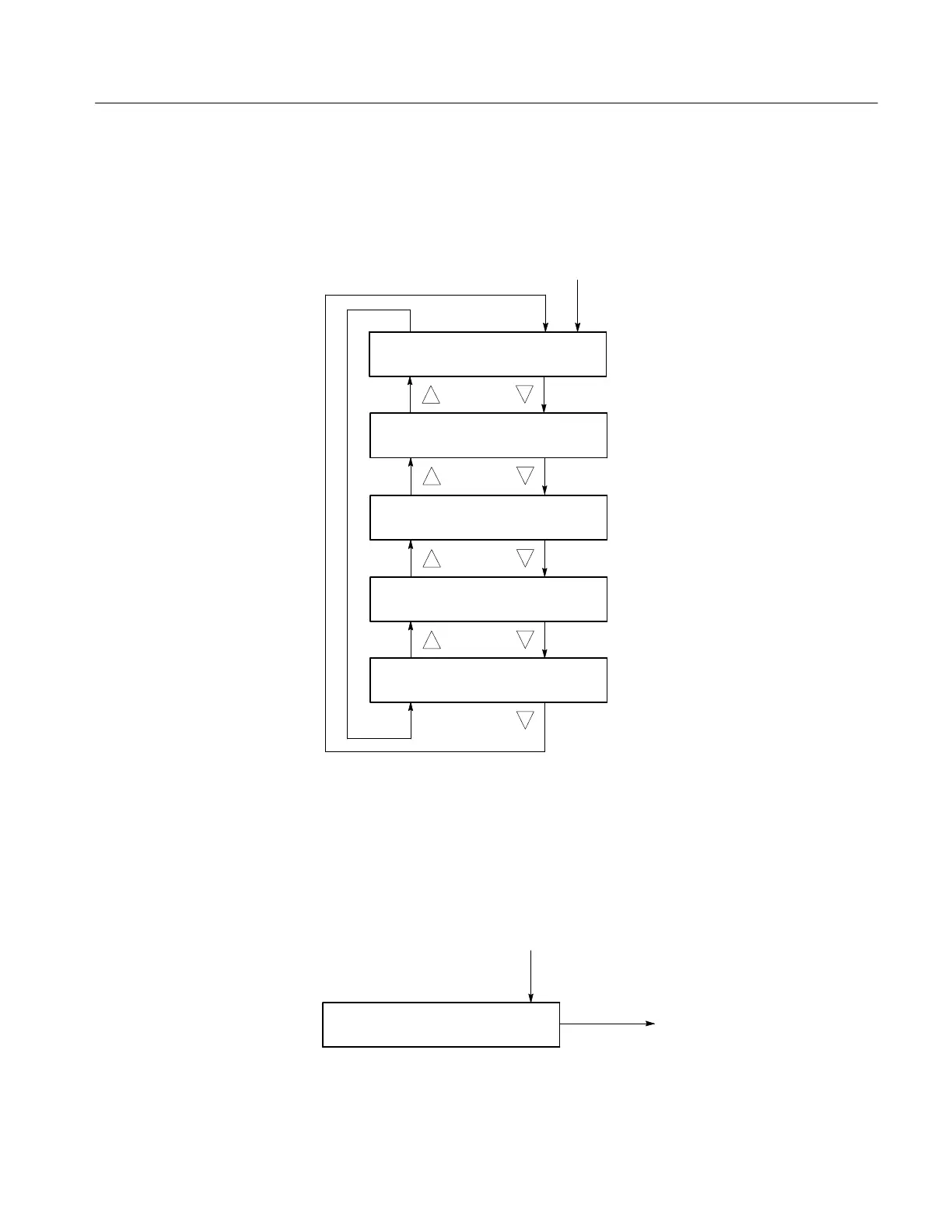

Figure 25: System information submenu diagram
This menu allows you to enter the option key that enables the fine timing
adjustment feature (Option 01). F igure 26 shows the System setup submenu
diagram.
: SETUP : OPTION KEY
ABCDEFGHIJKLMNOPQRST
ENTER
Enter the option key
Select Setup in the SYSTEM PARAMETER menu item
Figure 26: System setup submenu diagram
System Information
Submenu
System Setup Submenu
