Command Descriptions
TDS Family Oscilloscope Programmer Manual
2–289
WFMPre ?
The format of the response is:
BYT_Nr <NR1>;BIT_Nr <NR1>;ENCdg { ASC | BIN };
BN_Fmt { RI | RP };BYT_Or { LSB | MSB };
<wfm>:WFID <Qstring>;NR_PT <NR1>;PT_FMT { ENV|Y};
XUNit <QString>;XINcr <NR3>;PT_Off <NR1>;YUNit <QString>;YMUlt
<NR3>; YOFf <NR3>;YZEro<NR3>[;<wfm>:
WFID <Qstring>;NR_PT <NR1>;PT_FMT{ ENV|Y};
XUNit<QString>;XINcr <NR3>;PT_Off <NR1>;YUNit <QString>;
YMUlt <NR3>; YOFf <NR3>;YZEro <NR3>...]

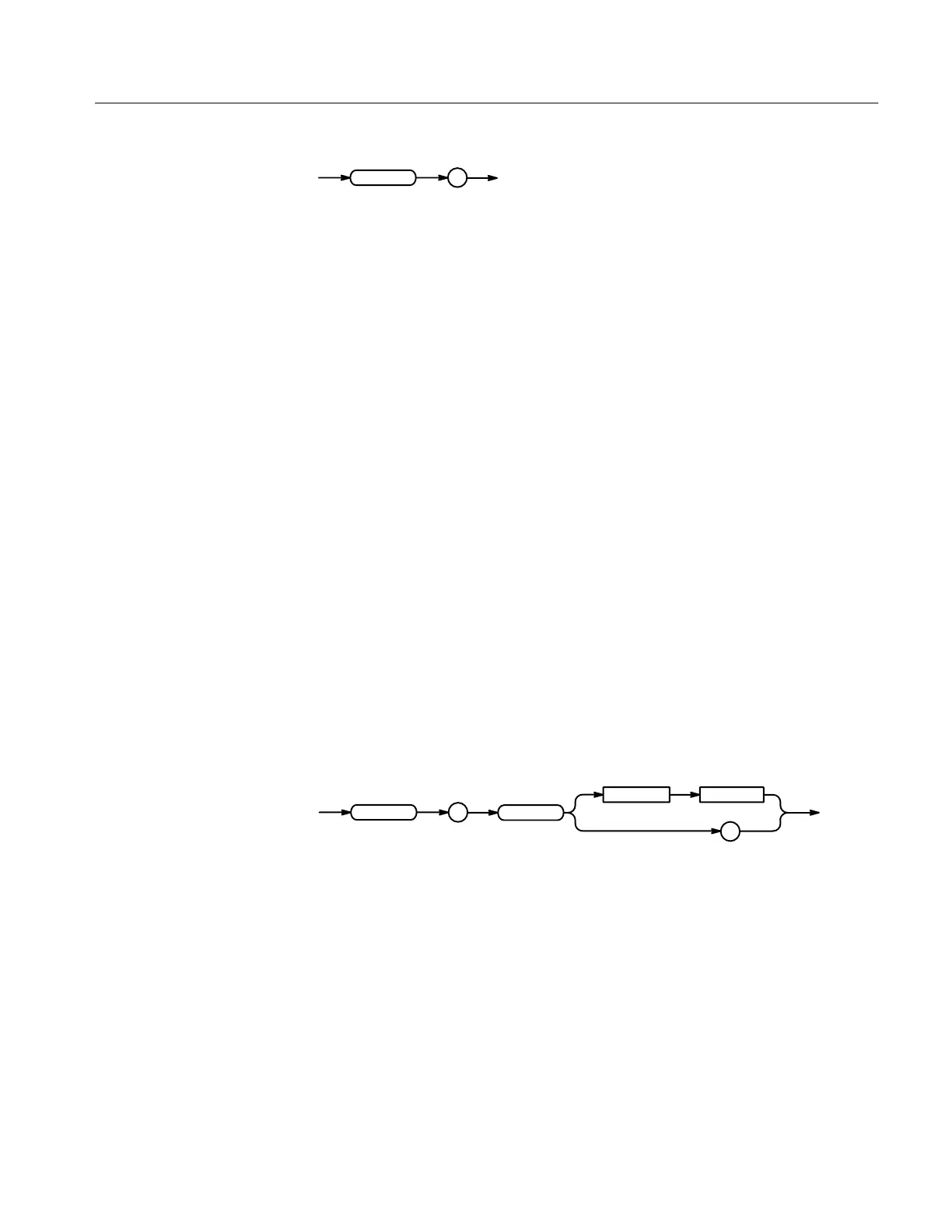

WFMPre:BIT_Nr
Returns the number of bits per binary waveform point for the first ordered
waveform as specified by the DATa:SOUrce command. The WFMPre:BIT_Nr
command is ignored on input.
Waveform
DATa:WIDth, WFMPre:BYT_Nr
WFMPre:BIT_Nr <NR1>
WFMPre:BIT_Nr?
?
<Space> <NR1>
WFMPre :
BIT_Nr
<NR1> is either 8 or 16, and is equivalent to WFMPre:BYT_Nr * 8.
WFMPRE:BIT_NR?
might return 8, indicating that there are 8 bits per waveform point.
WFMPre:BN_Fmt
Sets or queries the format of binary data for the first ordered waveform as
specified by the DATa:SOUrce command.
Returns
Group
Related Commands
Syntax
Arguments
Examples
