TDS Family Oscilloscope Programmer Manual

Waveform

DATa:ENCdg, WFMPre:BYT_Or, WFMPre:ENCdg

WFMPre:BN_Fmt { RI | RP }

WFMPre:BN_Fmt?

WFMPre

<Space>

BN_Fmt

RI specifies signed integer data-point representation.

RP specifies positive integer data-point representation.

WFMPRE:BN_FMT RP

specifies that the binary waveform data are positive integer data-points.

WFMPRE:BN_FMT?

returns either RI or RP as the current waveform data format.

WFMPre:BYT_Nr

Sets or queries the binary field data width for the first ordered waveform as

specified by the DATa:SOUrce command. This command is equivalent to the

DATa:WIDth command.

Waveform

DATa:WIDth, WFMPre:BIT_Nr

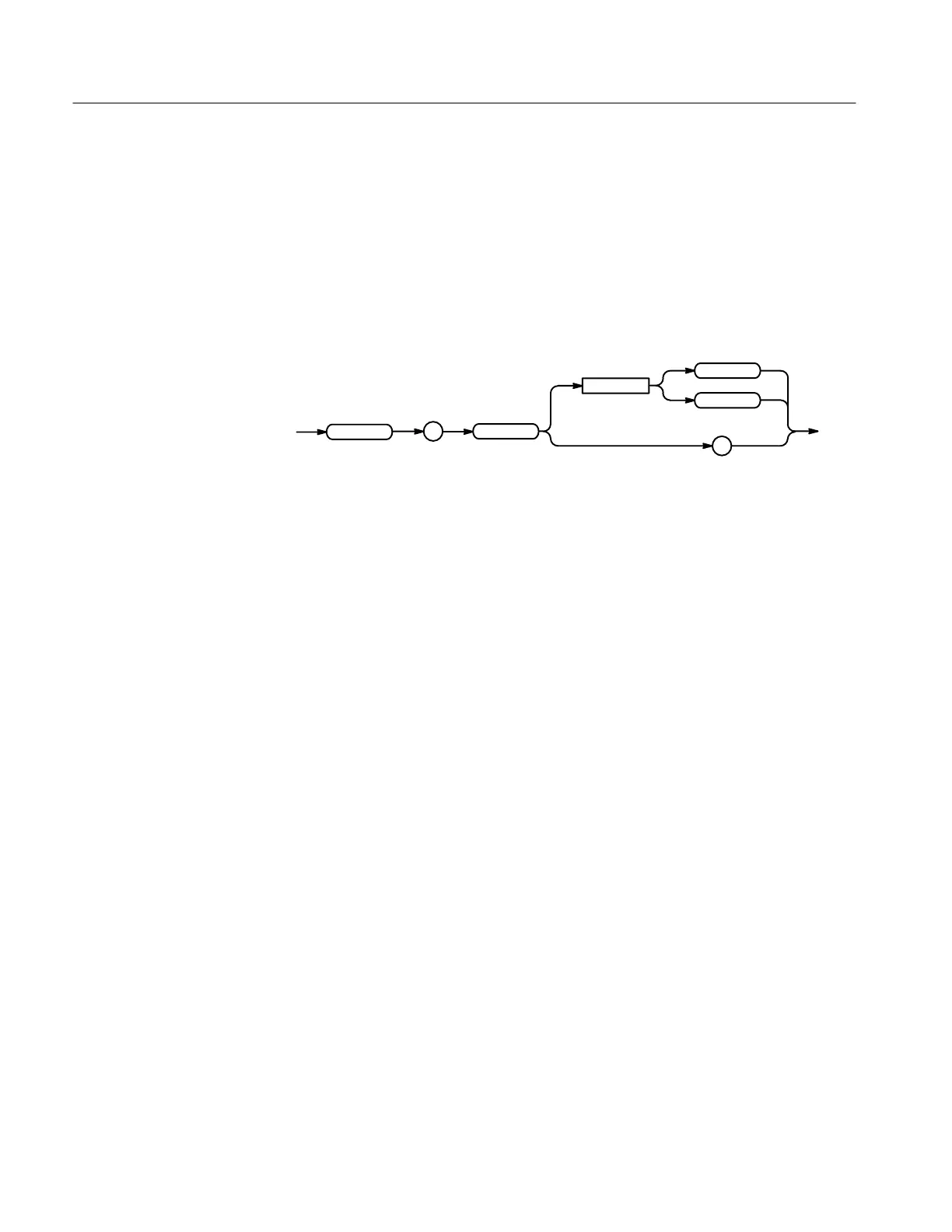

WFMPre:BYT_Nr <NR1>

WFMPre:BYT_Nr?

Group

Related Commands

Syntax

Arguments

Examples

Group

Related Commands

Syntax
