Command Descriptions

TDS Family Oscilloscope Programmer Manual

2–291

WFMPre :

BYT_Nr

<NR1> is the number of bytes per point and can be 1 or 2.

WFMPRE:BYT_NR 2

specifies that there are 2 bytes per waveform data point.

WFMPre:BYT_Or

Selects which byte of binary waveform data is transmitted first during a

waveform data transfer when DATa:WIDth (or WFMPre:BYT_Nr) is set to 2.

Waveform

DATa:ENCdg, WFMPre:BN_Fmt, WFMPre:ENCdg

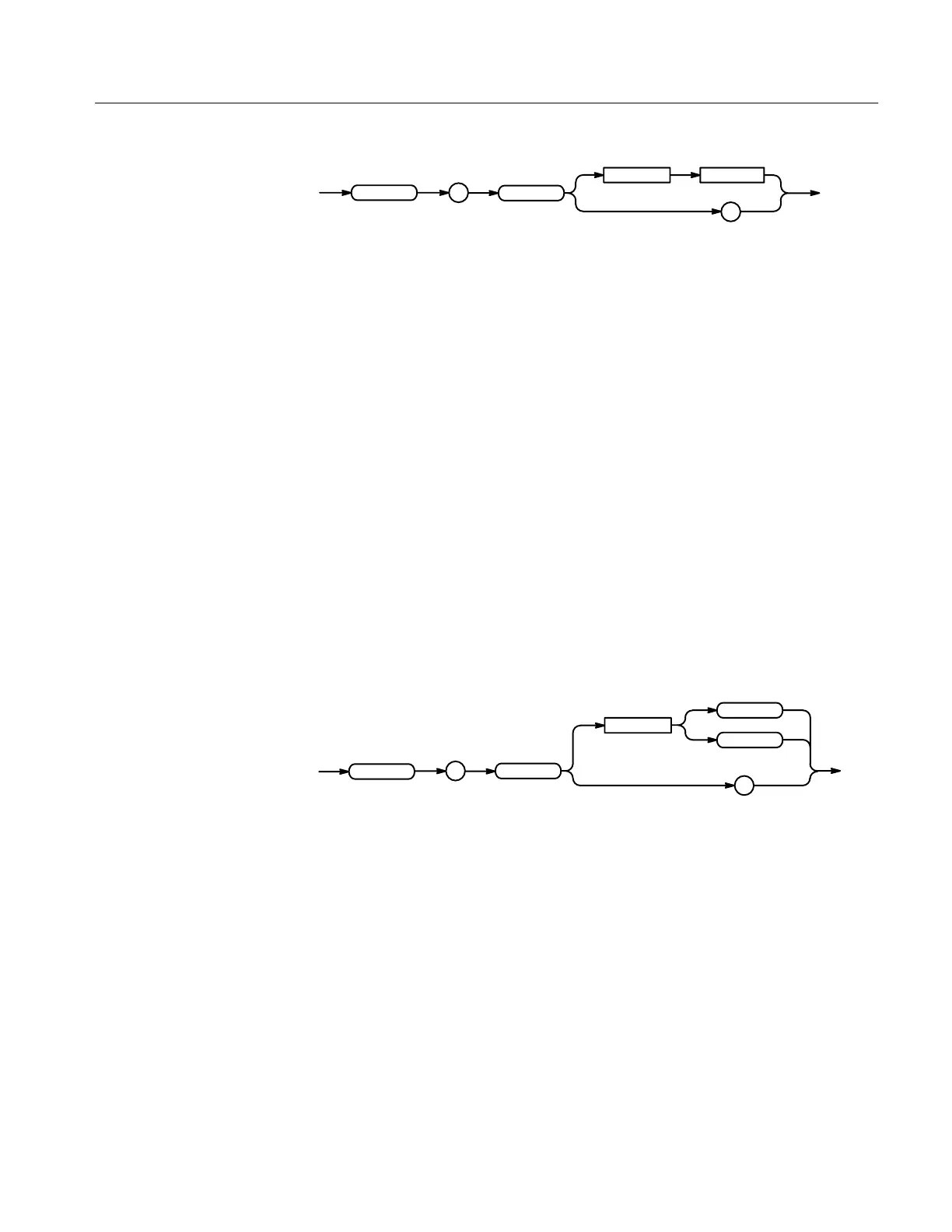

WFMPre:BYT_Or { LSB | MSB }

WFMPre:BYT_Or?

WFMPre

<Space>

LSB

BYT_Or

MSB

LSB selects the least significant byte to be transmitted first.

MSB selects the most significant bye to be transmitted first.

WFMPRE:BYT_OR MSB

specifies that the most significant byte in the waveform data will be transferred

first.

WFMPRE:BYT_OR?

returns either MSB or LSB depending on which data byte is transferred first.

Arguments

Examples

Group

Related Commands

Syntax

Arguments

Examples
