Command Descriptions

TDS Family Oscilloscope Programmer Manual

2–69

*CLS can suppress a Service Request that is to be generated by an *OPC. This

will happen if a hardcopy output or single sequence acquisition operation is still

being processed when the *CLS command is executed.

CURSor? (Query Only)

Returns all current cursor settings.

Cursor

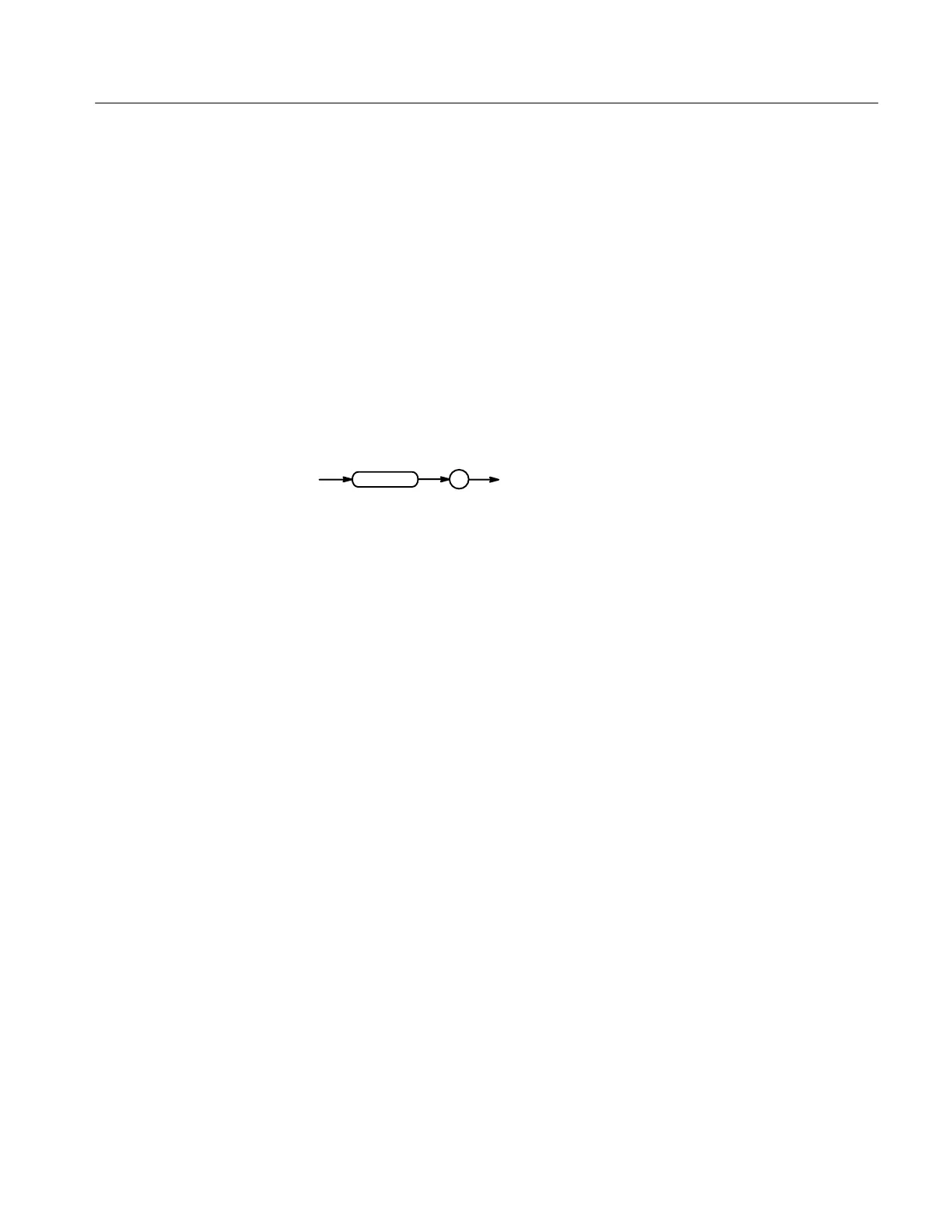

CURSor?

CURSor

CURSOR?

might return :CURSOR:FUNCTION OFF;VBARS:UNITS SECONDS;

POSITION1 500.0E-6;POSITION2 4.50E-3;SELECT CURSOR1;

:CURSOR:HBARS:POSITION1 3.20E+0;POSITION2 -3.20E+0;

SELECT CURSOR1 as the current cursor settings.

CURSor:FUNCtion

Selects and displays the cursor type. Cursors are attached to the selected

waveform. This command is equivalent to setting Function in the Cursor menu.

Cursor

SELect:CONTROl

CURSor:FUNCtion { HBArs | OFF | VBArs | PAIred }

CURSor:FUNCtion?

Group

Syntax

Examples

Group

Related Commands

Syntax
